Airports for X-Plane

Roma - Ciampino

Airport details

CountryItaly
StateLazio
RegionLI
AirspaceRome Ctr
MunicipalityCiampino
Elevation421ft (128m)
TimezoneGMT +1
Coordinates41.79945, 12.59722
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeLIRA
IATA codeCIA
FAA coden/a

Communication

Ciampino Clearance DEL131.250
Ciampino Ciampino Ground Control121.750
Ciampino Tower120.500
Ciampino ROMA ARR125.500
Ciampino ROMA Departure134.200

Approach frequencies

ILS-cat-IRW15110.5518.00mi
3° GSRW15110.5518.00mi
Nearby Points of Interest:
Antiquarium Lucrezia Romana
-
Aqua Marcia
-
Anio Novus
-
Aqua Claudia
-
parco archeologico Appia antica - tombe della via Latina
-
Palazzo Savelli (Albano Laziale)
-
Ariccia Bridge
-
Museo delle Civiltà
-
Palazzo Altemps
-
Villa Giustiniani Massimo
-
Santa Maria delle Lauretane
-
Santa Prisca Mithraeum
-
Biblioteca universitaria Alessandrina
-
Baths of Titus
-
Palazzo Brancaccio
-
Palazzo Leoni, Bologna
-
Palazzo Cimarra
-
Torre dei Conti
-
San Michele a Ripa
-
Santa Maria in Macello Martyrum
-
Palazzo del Grillo (Rome)
-
Palazzo Massimo alle Terme
-
Biblioteca medica statale Rome
-
Palazzo Koch
-
Biblioteca Nazionale Centrale di Roma

Runway info

Runway 15 / 33
 length2209m (7247ft)
 bearing145° / 325°
 width45m (148ft)
 surfaceasphalt
 blast zone21m (69ft) / 57m (187ft)

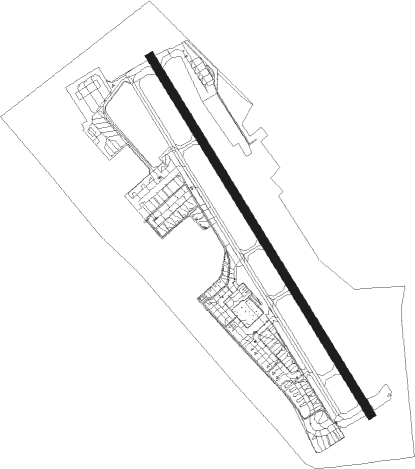

Airport layout


Taxiway locations

 A  AA  AF  BA  BB
Parking locations

 10  101  102  103  104  105  106  107
 108  109  11  111  112  113  114  115
 12  201  202  301  302  303  304  305
 306  307  308  309  310  311  312  313
 314  315  316  317  318  319  320  321
 322  323  401  402  403  404  405  406
 407  408  409  410  501  502  503  504
 505Reserved  506  507  508  509  510  511  512
 513  514  601  602  603  604  605  H412
 H413  H414  H415  H416

Nearby beacons

codeidentifierdistbearingfrequency
ROMROME VOR/DME0.5300°110.80
URBURBE (ROME) NDB9.9324°285
TPRPRATICA DI MARE TACAN11.6210°108.70
OSTOSTIA NDB16.1271°327
LATLATINA VOR/DME21.1129°111.20
CMPCAMPAGNANO VOR/DME21.7326°111.40
FRSFROSINONE VOR/DME32.5103°115.60
VIBVITERBO NDB45.3320°480
TAQTARQUINIA VOR/DME45.9296°111.80
PNZPONZA VORTAC55.7158°114.60

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW15
 OST7B, OST7A, OST5X, OST5W, OST7Y, OST7Z, URB7A, OST7C27mi0°
 OKUN7Z, OKUN7G, OKUN5W25mi51°
 PEMA5W, PEMA7A, PEMA7Z20mi54°
 RATI7Z, RATI7A, RATI5W53mi108°
RW33
 OST8E, URB8C27mi0°
 RATI8C53mi108°

STAR starting pointsdistanceinbound heading
ALL
 ESIN4G, ESIN4F, ESIN3H43.863°
 VALM4G, VALM3H, VALM4F54.379°
 ELKA4F, ELKA2H102.9115°
 GITO2F, GITO2G61.4164°
 MOPU4G, MOPU1F34.3249°
 ALAX1F, ALAX4G33.8275°
 LAT4G, LAT1F21.1309°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15-YROM (120°)ROM 6000ft
RA711 (10mi, 4°) 4000ft
RA712 (4mi, 325°) 3000ft
RA407 (5mi, 248°) 3000ft
LOCRI (2mi, 145°) 3000ft
 RNAVLOCRI 3000ft
RA701 (3mi, 145°) 2500ft
LIRA (7mi, 144°) 398ft
RA703 (6mi, 233°) 2000ft
RA704 (8mi, 324°) 3000ft
RA705 (7mi, 354°) 5000ft
CMP (10mi, 354°) 5000ft
CMP (turn) 5000ft
RW15-ZROM (120°)ROM 6000ft
RA711 (10mi, 4°) 4000ft
RA712 (4mi, 325°) 3000ft
RA407 (5mi, 248°) 3000ft
LOCRI (2mi, 145°) 3000ft
 RNAVLOCRI 3000ft
RA701 (3mi, 145°) 2500ft
LIRA (7mi, 144°) 398ft
RA703 (6mi, 233°) 2000ft
RATIR (3mi, 228°) 3000ft
RATIR (turn) 3000ft
RWNVAFRS (283°)FRS
RA771 (18mi, 266°)
RA772 (5mi, 266°) 5000ft
RA762 (6mi, 265°) 4000ft
RA763 (3mi, 343°) 3000ft
RWNVAIDROX (344°)IDROX 5000ft
RA763 (5mi, 343°) 3000ft
RWNVALAT (309°)LAT
RA773 (5mi, 281°) 6000ft
RA762 (7mi, 281°) 4000ft
RA763 (3mi, 343°) 3000ft
RWNVAROM (120°)ROM 6000ft
RA767 (11mi, 186°)
RA768 (3mi, 163°)
RA762 (3mi, 80°) 4000ft
RA763 (3mi, 343°) 3000ft
 RNAVRA763 3000ft
RA764 (2mi, 343°) 3000ft
RA766 (4mi, 343°) 1470ft
ROM (4mi, 342°)
RA761 (4mi, 327°)
RA759 (3mi, 327°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALAX1FLOCRIVHFleft329 (149)°> 3000ftDME 3.3mi185
ELKA2HBIBEKVHFleft299 (119)°> 10000ftDME 4.0mi210
ELKA2HLOCRIVHFleft329 (149)°> 3000ftDME 3.3mi185
ELKA2HTIBERVHFleft49 (229)°> 10000ftDME 8.0mi230
ELKA4FBIBEKVHFleft299 (119)°> 10000ftDME 4.0mi210
ELKA4FCMPNDBright17 (197)°> 5000ft1.0min timedICAO rules
ESIN3HESINOVHFright215 (35)°> 6000ftDME 5.0miICAO rules
ESIN3HLOCRIVHFleft329 (149)°> 3000ftDME 3.3mi185
ESIN4FESINOVHFright215 (35)°> 6000ftDME 5.0miICAO rules
ESIN4FLOCRIVHFleft329 (149)°> 3000ftDME 3.3mi185
ESIN4GESINOVHFright215 (35)°> 6000ftDME 5.0miICAO rules
GITO2FLOCRIVHFleft329 (149)°> 3000ftDME 3.3mi185
GITO2FTIBERVHFleft49 (229)°> 10000ftDME 8.0mi230
GITO2GCMPNDBright17 (197)°> 5000ft1.0min timedICAO rules
GITO2GTIBERVHFleft49 (229)°> 10000ftDME 8.0mi230
LAT1FLATNDBright87 (267)°> 9000ftDME 5.0mi230
LAT1FLOCRIVHFleft329 (149)°> 3000ftDME 3.3mi185
LAT4GLATNDBright87 (267)°> 9000ftDME 5.0mi230
MOPU1FLOCRIVHFleft329 (149)°> 3000ftDME 3.3mi185
VALM3HLOCRIVHFleft329 (149)°> 3000ftDME 3.3mi185
VALM3HVALMAVHFleft246 (66)°> 6000ftDME 5.0miICAO rules
VALM4FLOCRIVHFleft329 (149)°> 3000ftDME 3.3mi185
VALM4FVALMAVHFleft246 (66)°> 6000ftDME 5.0miICAO rules
VALM4GVALMAVHFleft246 (66)°> 6000ftDME 5.0miICAO rules
*) magnetic outbound (inbound) holding course
