Airports for X-Plane

Cascais

Airport details

CountryPortugal
StateLisbon District
RegionLP
AirspaceLisbon Ctr
MunicipalitySão Domingos de Rana
Elevation326ft (99m)
TimezoneGMT +0
Coordinates38.72602, -9.35665
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLPCS
IATA codeCAT
FAA coden/a

Communication

Cascais Ground Control121.825
Cascais Tower120.300

Runway info

Runway 17 / 35
 length1402m (4600ft)
 bearing160° / 340°
 width30m (98ft)
 surfaceasphalt
 displ threshold190m (623ft) / 0m (0ft)

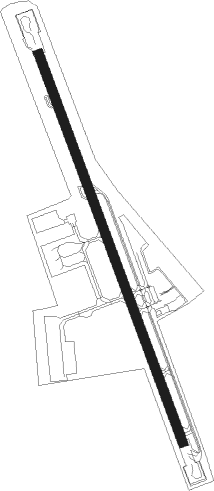

Airport layout


Parking locations

 A1  A2  A3  B11  B12  B13  B14  B15
 B16  B17  B18  B21  B22  B23  B24  B27
 B28  B35  B36  C1  C2  C3  C4  C5
 D1  D2  D3  D4  D5  E1  E2  E3
 E4  E5  E6  E7

Nearby beacons

codeidentifierdistbearingfrequency
CASCASCAIS VOR/DME1.3346°114.30
SRASINTRA VORTAC6.29°112.10
STRSINTRA NDB9.5344°371
LISLISBON VOR/DME13.250°114.80
MOJMONTIJO TACAN15.193°110
ESPESPICHEL VOR/DME19.8150°112.50
LARARRUDA (LISBON) NDB21.850°382
ARRDME-ILS23.2121°108.30
FTMFATIMA VOR/DME69.243°113.50

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW17
 ESP8S20mi150°
RW35
 ESP3N20mi150°

STAR starting pointsdistanceinbound heading
RW35
 ROCA4N69.2223°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW35CEFOX (15°)CEFOX 3000ft
OXFIN (5mi, 77°) 2000ft
 RNAVOXFIN 2000ft
ZEZZU (4mi, 340°) 2000ft
LPCS (6mi, 339°) 327ft
CS460 (8mi, 266°)
EKMAR (9mi, 180°) 3000ft
EKMAR (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ROCA4NFD35VHFleft169 (349)°> 2000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
