Airports for X-Plane

Faro

Airport details

CountryPortugal
StateFaro District
RegionLP
AirspaceLisbon Ctr
MunicipalityFaro
Elevation21ft (6m)
TimezoneGMT +0
Coordinates37.01445, -7.96583
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLPFR
IATA codeFAO
FAA coden/a

Communication

Faro ATIS124.200
Faro Ground Control118.575
Faro Tower118.200
Faro Approach119.400

Approach frequencies

ILS-cat-IIRW28109.518.00mi
ILS-cat-IRW10110.518.00mi
3° GSRW10110.518.00mi
3° GSRW28109.518.00mi
Nearby Points of Interest:
Casa das Figuras
-
Convento de Santo António dos Capuchos (Faro)
-
Edifício do Banco de Portugal em Faro
-
Palacete Cúmane
-
Casa das Açafatas
-
Ermida de Nossa Senhora da Esperança
-
Celeiro na cerca do Convento de São Francisco
-
Cemitério da Colónia Judaica de Faro
-
Ria Formosa
-
Ermida de Nossa Senhora do Pé da Cruz
-
Restos da Igreja da Graça
-
Azenha em Paderne
-
Igreja Matriz de Paderne
-
Ermida Nossa Senhora da Orada
-
Quartel da Atalaia
-
Capela de Santo António (Armação de Pêra)
-
Castle of Alcantarilha
-
Casa do Mirante
-
Casa da Coroa
-
Solar com capela e lagar de azeite na Quinta da Cruz
-
Casa da Poetisa Júdice Barbosa
-
Fort of Our Lady of the Incarnation (Carvoeiro)
-
Ponte Velha de Silves
-
Ermida de Nossa Senhora dos Mártires

Runway info

Runway 10 / 28
 length2493m (8179ft)
 bearing98° / 278°
 width45m (148ft)
 surfaceasphalt
 displ threshold45m (148ft) / 45m (148ft)

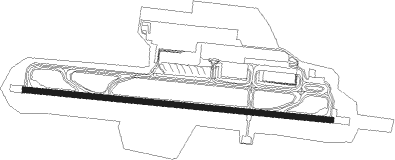

Airport layout


Taxiway locations

 C1  C2  D  E  F  P  RD  RG
Parking locations

 Gate  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
VFAFARO VOR/DME0.4264°112.80
FARDME1.998°111.20
DSLDME-ILS17.61°109.30
DPRDME-ILS31.541°111.50
DMXGRANDE DME-ILS32.3283°108.50
DMLRUIVA DME42.316°114.50
SGRSAGRES VOR/DME47.1274°113.90

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW10
 XAPA7L, XAPA9E35mi2°
 ALAG3F67mi18°
 NIRA3F29mi67°
 ORTO7E66mi149°
 AMSE7E63mi175°
 GIMA3F15mi189°
 OSLA3F65mi198°
 BARO7E118mi243°
 NART7E229mi258°
 ODEM3G, ODEM7E, ODEM3F35mi319°
RW28
 XAPA7V, XAPA9U35mi2°
 EVUR1V99mi2°
 TUPI1V28mi84°
 ORTO7U66mi149°
 AMSE7U63mi175°
 OSLA1V65mi198°
 BARO7U118mi243°
 NART7U229mi258°
 IXOL1V35mi267°
 ODEM9U, ODEM2S, ODEM1V35mi319°
 SOTE1V78mi349°

STAR starting pointsdistanceinbound heading
RW10
 GIMA7C15.19°
 IXOL7C35.387°
 USAL7C20.3122°
 SOTE5K, SOTE7C77.7169°
 TUPI7C28.1264°
RW28
 GIMA7A15.19°
 ODEM5K, ODEM9A, ODEM7B35.2139°
 MARI7A24.8197°
 ALAG7A, ALAG5K66.6198°
 NIRA7A29.2247°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10FR450 (88°)FR450 3000ft
FR455 (4mi, 53°) 2000ft
RW10FR451 (98°)FR451 3000ft
FR455 (3mi, 98°) 2000ft
RW10VENOL (101°)VENOL 3000ft
FR455 (4mi, 112°) 2000ft
 RNAVFR455 2000ft
FR457 (4mi, 98°) 2000ft
LPFR (7mi, 98°) 74ft
FR459 (5mi, 98°)
GIMAL (16mi, 211°) 3000ft
GIMAL (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALAG5KGEBTIVHFleft98 (278)°3000ft - 14000ftDME 5.0mi230
ALAG5KGENROVHFright347 (167)°4000ft - 14000ft1.0min timed230
ALAG7AGEBTIVHFleft98 (278)°3000ft - 14000ftDME 5.0mi230
ALAG7AGENROVHFright347 (167)°4000ft - 14000ft1.0min timed230
GENR7AGEBTIVHFleft98 (278)°3000ft - 14000ftDME 5.0mi230
GENR7AGENROVHFright347 (167)°4000ft - 14000ft1.0min timed230
GIMA7AGEBTIVHFleft98 (278)°3000ft - 14000ftDME 5.0mi230
GIMA7AGIMALVHFright187 (7)°15000ft - 22000ftDME 10.0mi265
GIMA7CGIMALVHFright187 (7)°15000ft - 22000ftDME 10.0mi265
GIMA7CVENOLVHFright286 (106)°3000ft - 14000ftDME 5.0mi230
IXOL7CVENOLVHFright286 (106)°3000ft - 14000ftDME 5.0mi230
MARI7AGEBTIVHFleft98 (278)°3000ft - 14000ftDME 5.0mi230
NIRA7AGEBTIVHFleft98 (278)°3000ft - 14000ftDME 5.0mi230
ODEM5KGEBTIVHFleft98 (278)°3000ft - 14000ftDME 5.0mi230
ODEM7BGEBTIVHFleft98 (278)°3000ft - 14000ftDME 5.0mi230
ODEM9AGEBTIVHFleft98 (278)°3000ft - 14000ftDME 5.0mi230
SOTE5KUSALUVHFright310 (130)°15000ft - 20000ftDME 8.5mi240
SOTE5KVENOLVHFright286 (106)°3000ft - 14000ftDME 5.0mi230
SOTE7CUSALUVHFright310 (130)°15000ft - 20000ftDME 8.5mi240
SOTE7CVENOLVHFright286 (106)°3000ft - 14000ftDME 5.0mi230
TUPI7CVENOLVHFright286 (106)°3000ft - 14000ftDME 5.0mi230
USAL7CUSALUVHFright310 (130)°15000ft - 20000ftDME 8.5mi240
USAL7CVENOLVHFright286 (106)°3000ft - 14000ftDME 5.0mi230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
