Sarajevo

Airport details

CountryBosnia and Herzegovina
StateFederation of Bosnia and Herzegovina
RegionLQ
AirspaceSarajevo Ctr
MunicipalityIlidža Municipality
Elevation1708ft (521m)
TimezoneGMT +1
Coordinates43.82447, 18.33177
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLQSA
IATA codeSJJ
FAA coden/a

Communication

Sarajevo ATIS124.125
Sarajevo Ground Control121.900
Sarajevo Tower118.250
Sarajevo Approach136.450

Approach frequencies

ILS-cat-IRW11110.718.00mi
3.2° GSRW11110.718.00mi
Nearby Points of Interest:
Vraca Memorial Park
-
Objects of the warehouse in the area of former industrial zone in Sarajevo
-
Officers' Pavilions, the architectural ensemble
-
Marijin dvor
-
Building of the Railway Savings Cooperative in Sarajevo
-
Pension Fund building
-
Red Cross building in Sarajevo
-
Building of the Rijaset of the Islamic Community of Bosnia and Herzegovina and Vakuf Directorate
-
Missie’s House
-
Building of the Presidency of Bosnia and Herzegovina
-
Railways Building in Sarajevo
-
Sarajevo fire brigade barracks
-
Damić house
-
Residential complex on Džidžikovac, the architectural ensemble
-
Musafija Palace
-
Čobanija Mosque
-
Central Post Office in Sarajevo
-
Salom’s Palace
-
Napredak building
-
Vakuf of Hovadža Kemaludin (Mekteb), the historic mixed-used building
-
Building of the National (Central) bank with movable property, the historic building
-
Bank on Obala
-
Officer's Casino
-
Ješua D. Salom Mansion
-
Franciscan monastery Saint Anthony of Padua in Sarajevo

Runway info

Runway 12 / 30
 length2596m (8517ft)
 bearing111° / 291°
 width46m (150ft)
 surfaceasphalt
 displ threshold100m (328ft) / 503m (1650ft)

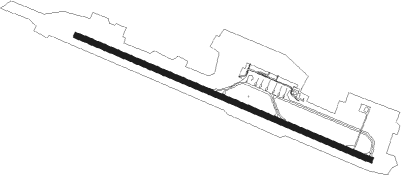

Airport layout


Taxiway locations
Parking locations

Nearby beacons

codeidentifierdistbearingfrequency
ILSARAJEVO NDB090°405
ASSARAJEVO NDB1.1291°381
KGKOBILJACA (SARAJEVO) NDB7.5290°357
KEBSARAJEVO VOR/DME8.347°116.70
SARSARAJEVO NDB8.449°375
KISSARAJEVO VOR/DME16.4306°116
MSRMOSTAR VOR/DME39.6220°116.90
TUTUZLA NDB39.713°445
ZVZIVINICE NDB40.826°402
TZUTUZLA VOR/DME41.733°108.80
MAMOSTAR NDB41.9218°355
GACGACKO NDB42.1162°370
DNCMOSTAR NDB46.3215°425

Departure and arrival routes

Transition altitude9500ft
SID end pointsdistanceoutbound heading
RW29
 VEBA1B, VEBA1A41mi70°
 MITN1D, MITN1C40mi93°
 KUTA1B, KUTA1A36mi160°
 VRAN1C, VRAN1D35mi265°
 BOSN4W, BOSN1A41mi314°

STAR starting pointsdistanceinbound heading
RW11
 VRAN1E34.685°
 GILU1A10.1101°
 BOSN1N41.0134°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11TIMID (160°)TIMID 9000ft
KIS (8mi, 255°) 6800ft
RIVUS (5mi, 185°) 5400ft
 RNAVRIVUS 5400ft
SA001 (5mi, 110°) 4200ft
SA011 (3mi, 110°) 3300ft
SA009 (2mi, 110°) 2601ft
SA013 (8mi, 358°) 5800ft
TIMID (5mi, 348°) 6500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BOSN1NKEB32VHFleft307 (127)°> 9000ftDME 5.4miICAO rules
GILU1TTIMIDVHFright127 (307)°6500ft - 9200ft1.0min timed220
KEB1TTIMIDVHFright127 (307)°6500ft - 9200ft1.0min timed220
TODN1TTIMIDVHFright127 (307)°6500ft - 9200ft1.0min timed220
VRAN1EEMKESVHFright250 (70)°> 10000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
