Altenrhein - St.gallen-altenrhein
Airport details
| Country | Switzerland |
| State | St. Gallen |
| Region | LS |
| Airspace | Switzerland Ctr |
| Municipality | Thal |
| Elevation | 1306ft (398m) |
| Timezone | GMT +1 |
| Coordinates | 47.48701, 9.55082 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | LSZR |
| IATA code | ACH |
| FAA code | n/a |
Communication
| St.Gallen-Altenrhein ATIS | 123.775 |
| St.Gallen-Altenrhein Ground Control | 121.800 |
| St.Gallen-Altenrhein Tower | 118.650 |
| St.Gallen-Altenrhein ZURICH ARR | 119.925 |
| St.Gallen-Altenrhein ZURICH Departure | 119.925 |
Approach frequencies
| ILS-cat-I | RW10 | 108.75 | 18.00mi |
| 4° GS | RW10 | 108.75 | 18.00mi |
Nearby Points of Interest:
Warteggpark
-Flughalle im Rinnsaal, Höchst
-Rorschach
-Arbon
-Villa Robert Bösch
-Villa Schmidheiny
-Town hall
-rectory
-Luitpold-Kaserne in Lindau
-Roggwil
-Lindavia-Brunnen
-Senderbrücke
-Altstätten
-Heilig-Geist-Spital
-Pfarrkirche Bregenz-St. Gebhard
-St. Wendelin, Fluh
-Pfarrkirche hl. Georg
-Volksbad St. Gallen
-Library of the canton of St. Gallen
-Ehem Ansitz Kronhalden, Kronhaldenweg 17, 19
-former dominican convent of St. Catherine
-Stadtpalais Waldburg-Wolfegg, Bregenz
-Staatsarchiv St. Gallen
-Kirchstraße 18 (Bregenz)

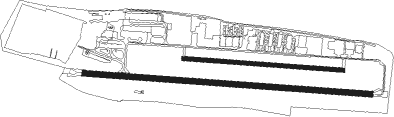

Runway info
Runway 10 / 28  | ||
| length | 1456m (4777ft) | |
| bearing | 96° / 276° | |
| width | 30m (98ft) | |
| surface | asphalt | |
| displ threshold | 73m (240ft) / 62m (203ft) | |
| Runway 10L / 28R | ||
| length | 811m (2661ft) | |
| bearing | 96° / 276° | |
| width | 20m (66ft) | |
| surface | grass | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| FHD | DME | 10.9 | 346° | 112.60 |
| ZUE | ZURICH EAST VOR/DME | 30.3 | 278° | 110.05 |
| KPT | KEMPTEN VOR/DME | 35.8 | 72° | 108.40 |
| WFJ | DME | 40.4 | 159° | 113.75 |
| ALD | (MEMMINGEN/ALLGAU) DME | 40.7 | 54° | 117.20 |
| ALG | ALLGAEU (MEMMINGEN) NDB | 42 | 54° | 341 |
| LUP | LAUPHEIM NDB | 46.2 | 26° | 407 |
| SUL | SULZ VOR | 64.9 | 315° | 116.10 |
Departure and arrival routes
| Transition altitude | 5000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW10 | |||
| KPT4L, KPT1M | 36mi | 72° | |
| BEMK1M, BEMK3L | 31mi | 85° | |
| TRA3L, TRA1M | 47mi | 280° | |
| AMIK1M | 21mi | 280° | |
| ALAG5L, ALAG1M | 19mi | 344° | |
| RW28 | |||
| KPT4R, KPT3V | 36mi | 72° | |
| BEMK3R, BEMK2V | 31mi | 85° | |
| AMIK2V | 21mi | 280° | |
| TRA2V, TRA3R | 47mi | 280° | |
| ALAG5R, ALAG4V | 19mi | 344° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| ROLS3H | 29.3 | 73° | |
| ZUE3H | 30.3 | 98° | |
| GARM1H | 20.9 | 141° | |
| KPT3H | 35.8 | 252° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| GARM1H | SITOR | VHF | left | 277 (97)° | 5000ft - 10000ft | 1.0min timed | 170 |
| KPT3H | SITOR | VHF | left | 277 (97)° | 5000ft - 10000ft | 1.0min timed | 170 |
| ROLS3H | SITOR | VHF | left | 277 (97)° | 5000ft - 10000ft | 1.0min timed | 170 |
| ZUE3H | SITOR | VHF | left | 277 (97)° | 5000ft - 10000ft | 1.0min timed | 170 |
| *) magnetic outbound (inbound) holding course | |||||||
