Airports for X-Plane

Kayseri - Erkilet

Airport details

CountryTurkey
StateKayseri Province
RegionLT
AirspaceAnkara Ctr
MunicipalityKocasinan
Elevation3458ft (1054m)
TimezoneGMT +3
Coordinates38.76954, 35.47530
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLTAU
IATA codeASR
FAA coden/a

Communication

Erkilet Tower122.100
Erkilet Approach122.100

Approach frequencies

ILS-cat-IRW25110.318.00mi
3° GSRW25110.318.00mi

Runway info

Runway 07 / 25
 length2994m (9823ft)
 bearing79° / 259°
 width44m (145ft)
 surfaceconcrete
 blast zone152m (499ft) / 152m (499ft)

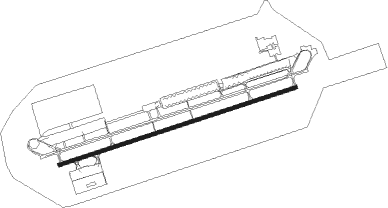

Airport layout


Taxiway locations

 A  B1  K  K1  L  P
Parking locations

 MR1  MR2  MR3  MR4  MR5  MR6  RS101  RS102
 RS103  RS104  RS105  RS106  RS107  RS108

Nearby beacons

codeidentifierdistbearingfrequency
KSRKAYSERI NDB2.283°407
GEMGEMEREK VOR/DME34.655°115.10
TZKTUZKOY NDB43.6270°371

Departure and arrival routes

Transition altitude10000ft
SID end pointsdistanceoutbound heading
RW07
 TIRM1A, TIRM1B, TIRM1F, TIRM1G, TIRM1N17mi59°
 SOLS1N, SOLS1G, SOLS1F, SOLS1B, SOLS1A40mi154°
 ERCI1N, ERCI1F, ERCI1G, ERCI1B, ERCI1A39mi227°
 KISL1N, KISL1G, KISL1B, KISL1A, KISL1F57mi287°
 SARI1A, SARI1B, SARI1N, SARI1G17mi340°
RW25
 TIRM1K, TIRM1C, TIRM1D, TIRM1H17mi59°
 SOLS1K, SOLS1H, SOLS1D, SOLS1C40mi154°
 ERCI1C, ERCI1D, ERCI1H, ERCI1K39mi227°
 KISL1C, KISL1D, KISL1H, KISL1K57mi287°
 SARI1K, SARI1D, SARI1C17mi340°

STAR starting pointsdistanceinbound heading
ALL
 ERCI1E, ERCI1J, ERCI1K, ERCI1L39.047°
 KISL1K, KISL1J, KISL1E57.1107°
 SARI1E, SARI1J, SARI1K16.9160°
 GEM1K34.6235°
 TIRM1J, TIRM1E17.0239°
 SOLS1K, SOLS1J, SOLS1E40.1334°
RW07
 ERCI1R39.047°
 KISL1R57.1107°
 MART1R40.3155°
 SOLS1R40.1334°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW25EKVAL (260°)EKVAL 9800ft
AU220 (7mi, 259°) 7600ft
AU221 (2mi, 259°) 7000ft
AYBER (3mi, 259°) 6100ft
RW25URKAN (247°)URKAN
EKVAL (6mi, 163°) 9800ft
AU220 (7mi, 259°) 7600ft
AU221 (2mi, 259°) 7000ft
AYBER (3mi, 259°) 6100ft
 RNAVAYBER 6100ft
AU222 (4mi, 259°) 4840ft
LTAU (6mi, 261°) 3519ft
AU038 (1mi, 253°)
ORBAY (14mi, 271°) 7500ft
ORBAY (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ERCI1EKSRNDBright71 (251)°> 9000ft1.0min timedICAO rules
ERCI1JKSRNDBright71 (251)°> 9000ft1.0min timedICAO rules
ERCI1LAU108VHFright184 (4)°> 15000ft1.0min timedICAO rules
GEM1KAU102VHFright342 (162)°> 9000ft1.0min timedICAO rules
KISL1EKSRNDBright71 (251)°> 9000ft1.0min timedICAO rules
KISL1JKSRNDBright71 (251)°> 9000ft1.0min timedICAO rules
KISL1KAU102VHFright342 (162)°> 9000ft1.0min timedICAO rules
SARI1EKSRNDBright71 (251)°> 9000ft1.0min timedICAO rules
SARI1JKSRNDBright71 (251)°> 9000ft1.0min timedICAO rules
SARI1KAU102VHFright342 (162)°> 9000ft1.0min timedICAO rules
SOLS1EKSRNDBright71 (251)°> 9000ft1.0min timedICAO rules
SOLS1JKSRNDBright71 (251)°> 9000ft1.0min timedICAO rules
SOLS1KAU108VHFright184 (4)°> 15000ft1.0min timedICAO rules
TIRM1EKSRNDBright71 (251)°> 9000ft1.0min timedICAO rules
TIRM1JKSRNDBright71 (251)°> 9000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
