Airports for X-Plane

Muş - Mus Ab

Airport details

CountryTurkey
StateMuş Province
RegionLT
AirspaceAnkara Ctr
MunicipalityMuş Merkez
Elevation4157ft (1267m)
TimezoneGMT +3
Coordinates38.74472, 41.66889
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLTCK
IATA codeMSR
FAA coden/a

Communication

Mus AB Tower122.100
Mus AB Approach119.775

Approach frequencies

ILS-cat-IRW29R108.518.00mi
3.4° GSRW29R108.518.00mi

Runway info

Runway 11L / 29R
 length3550m (11647ft)
 bearing111° / 291°
 width45m (148ft)
 surfaceasphalt
 blast zone150m (492ft) / 150m (492ft)
Runway 11R / 29L
 length3554m (11660ft)
 bearing111° / 291°
 width30m (98ft)
 surfaceasphalt

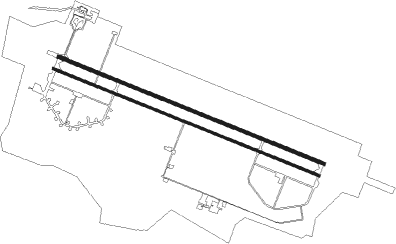

Airport layout


Taxiway locations

 B  C  C1  D  D1  E  E1  F
 F1
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
MUSMUS NDB0.4300°319
SIRSIIRT NDB46.7168°409
SRTSIIRT VOR/DME51166°114.30
BATBATMAN NDB54.9214°470

Departure and arrival routes

Transition altitude12000ft
SID end pointsdistanceoutbound heading
RW11L
 BAYI1A15mi240°
 VART1A20mi339°
RW29R
 BAYI1B15mi240°
 VART1B20mi339°

STAR starting pointsdistanceinbound heading
RW11L
 BAYI1F15.360°
 VART1F20.1159°
RW29R
 BAYI1D, BAYI1E15.360°
 VART1E, VART1D20.1159°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAYI1DMUSVHFright211 (31)°> 9000ft1.0min timedICAO rules
BAYI1EMUSVHFright211 (31)°> 9000ft1.0min timedICAO rules
BAYI1FMUSVHFright211 (31)°> 9000ft1.0min timedICAO rules
VART1DMUSVHFright211 (31)°> 9000ft1.0min timedICAO rules
VART1EMUSVHFright211 (31)°> 9000ft1.0min timedICAO rules
VART1FMUSVHFright211 (31)°> 9000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
