Airports for X-Plane

Alanya - Alanya Gazipasa

Airport details

CountryTurkey
StateAntalya
RegionLT
AirspaceAnkara Ctr
MunicipalityGazipaşa
Elevation125ft (38m)
TimezoneGMT +3
Coordinates36.29945, 32.30139
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeLTFG
IATA codeGZP
FAA coden/a

Communication

Alanya Gazipasa Ground Control121.800
Alanya Gazipasa Tower119.250
Alanya Gazipasa Tower122.800
Alanya Gazipasa Approach120.225
Alanya Gazipasa Departure120.225

Approach frequencies

LOCRW08108.518.00mi

Runway info

Runway 08 / 26
 length2352m (7717ft)
 bearing83° / 263°
 width45m (148ft)
 surfaceconcrete
 blast zone70m (230ft) / 60m (197ft)

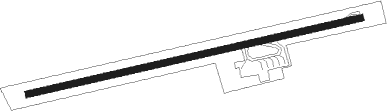

Airport layout


Parking locations

 R1  R2  R3  R4  R5  R6

Nearby beacons

codeidentifierdistbearingfrequency
GZPGAZIPASA NDB0.3322°316
MUTMUT VOR/DME58.560°112.30

Departure and arrival routes

Transition altitude15000ft
SID end pointsdistanceoutbound heading
RW26
 ELRO1T21mi60°
 BATN1T22mi108°
 ATSU1T37mi293°
 EVKO1A17mi293°

STAR starting pointsdistanceinbound heading
ALL
 EVKO1B16.5113°
RW08
 UTUS1C29.9104°
 ELRO1C, ELRO1D21.0240°
 BATN1D, BATN1C22.0288°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08ETPUX (44°)ETPUX 6000ft
BEPTO (11mi, 350°) 3200ft
RW08ROKDU (105°)ROKDU 5000ft
BEPTO (6mi, 170°) 3200ft
RW08UTUSO (104°)UTUSO 9000ft
BEPTO (20mi, 118°) 3200ft
 RNAVBEPTO 3200ft
EVBUM (5mi, 83°) 2000ft
MA08 (5mi, 83°) 421ft
FG715 (11mi, 170°)
ETPUX (10mi, 263°)
BEPTO (11mi, 350°) 3200ft
BEPTO (turn) 3200ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BATN1CBEPTOVHFright257 (77)°> 3200ft1.0min timedICAO rules
ELRO1CBEPTOVHFright257 (77)°> 3200ft1.0min timedICAO rules
EVKO1BGZPFIXright250 (70)°> 7500ft1.0min timed230
UTUS1CBEPTOVHFright257 (77)°> 3200ft1.0min timedICAO rules
UTUS1CUTUSOVHFright298 (118)°> 9000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
