Airports for X-Plane

Belgrade

Airport details

CountrySerbia
StateCentral Serbia
RegionLY
AirspaceBelgrade Ctr
MunicipalitySurcin Urban Municipality
Elevation334ft (102m)
TimezoneGMT +1
Coordinates44.81755, 20.30114
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLYBE
IATA codeBEG
FAA coden/a

Communication

Belgrade Belgrade ATIS122.925
Belgrade Belgrade Ground Control118.300
Belgrade Belgrade Tower118.100
Belgrade Belgrade Approach133.100
Belgrade Belgrade Departure133.100

Approach frequencies

ILS-cat-IIIRW12110.318.00mi
ILS-cat-IRW30109.918.00mi
3° GSRW30109.918.00mi
3° GSRW12110.318.00mi
Nearby Points of Interest:
Elementary school "Kraljica Marija"
-
Chapel of Saint Roch
-
Church of St. Archangel Michael and Gabriel
-
Taurunum antique
-
Air force command building
-
Kuća porodice Marković
-
Magistrate in Zemun
-
Customs Office building, Zemun
-
Sugar Refinery, Čukarica
-
1 Turgenjev Street
-
House of Dragoljub Gošić

Runway info

Runway 12 / 30
 length3403m (11165ft)
 bearing114° / 294°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 400m (1312ft)

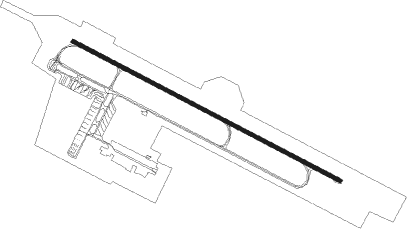

Airport layout


Taxiway locations

 B  C  D  E  F  G  H  L
Parking locations

 A1  A10  A11-2  A11-3  A12-1  A12-2  A12-3  A12-4
 A13-1  A13-2  A13-3  A13-4  A14-1  A14-2  A14-3  A14-4
 A2  A3  A4  A5  A6  A7  A8  A9
 B1  B2  B3  B4  B5  B6  B7  C1
 C10  C1A  C2  C3  C3A  C4  C5  C5A
 C6  C7  C7A  C8  C9  C9A  H1  H3
 H4  H5  H6  H7  H8  H9  Maintenance  N1
 N1A  N1B  N2

Nearby beacons

codeidentifierdistbearingfrequency
BGDBELGRADE VOR/DME0.480°112.05
EKBATAJNICA (BELGRADE) NDB5.110°420
KNBELGRADE NDB8.4295°380
JABELGRADE NDB8.6113°316
PZBATAJNICA (BELGRADE) NDB8.7331°320
BTBATAJNICA (BELGRADE) NDB10325°420
OBRBELGRADE NDB12.5223°355
PAPANCEVO (BELGRADE) NDB15.178°495
IAINDIJA (BELGRADE) NDB16.6315°485
PVPETROVARADIN NDB34.3312°300
VALVALJEVO VOR/DME34.8221°116.60
VALVALJEVO NDB34.9221°390
POZPOZAREVAC NDB38103°416
SMIMITROVICA VOR/DME38.7282°117
TPLTOPOLA VOR/DME44.7147°116.80
TPLTOPOLA NDB44.9147°348
VRAVRSAC NDB45.175°294
BRKRALJEVO NDB52.5172°435
LAKRALJEVO NDB58.6166°360
CNIDME59.734°115.60
UZPONIKVE (UZICE) NDB60.2203°470
SRPONIKVE (UZICE) NDB60.5210°420
KRVKRALJEVO VOR/DME61164°116.30

Departure and arrival routes

Transition altitude10000ft
SID end pointsdistanceoutbound heading
RW12
 PELO2D, PELO2F25mi76°
 DONI2N, DONI3G37mi95°
 VAL4E, VAL3Y, VAL2F, VAL2D35mi221°
 TUVA2C, TUVA2L, TUVA2N55mi284°
 TADA2G, TADA2L, TADA3Y41mi300°
 TISA2Z, TISA2H, TISA6E36mi353°
RW30
 DONI3J, DONI3H, DONI2W, DONI2V37mi95°
 VAL2Z, VAL4H, VAL9G, VAL2J35mi221°
 TUVA2V, TUVA2Z55mi284°
 TADA4T, TADA2Z41mi300°
 TISA6D, TISA2S, TISA2L36mi353°

STAR starting pointsdistanceinbound heading
RW12
 ELGE2K, ELGE3A40.99°
 ENUP2Q, ENUP3A41.878°
 RIGM2K, RIGM2B, RIGM2A52.1123°
 TISA7A, TISA2C36.4173°
 DONI2R, DONI2D, DONI2B, DONI2A37.2275°
 OSVI2A, OSVI2C, OSVI3K50.0298°
 GAZO2A, GAZO2C46.6318°
RW30
 ELGE2B, ELGE2L40.99°
 ENUP2S, ENUP3C41.878°
 RIGM2M, RIGM2L, RIGM2D, RIGM2C52.1123°
 TISA8B, TISA2F36.4173°
 DONI4C, DONI2S37.2275°
 OSVI2B, OSVI2L50.0298°
 GAZO2D, GAZO2B46.6318°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW30-FBE497 (347°)BE497 4100ft
BE500 (5mi, 62°) 4100ft
RW30-FBE498 (328°)BE498 4100ft
BE500 (5mi, 338°) 4100ft
RW30-FBE499 (310°)BE499 4100ft
BE500 (5mi, 273°) 4100ft
 RNAVBE500 4100ft
BE501 (6mi, 338°) 3100ft
BE502 (5mi, 338°)
BE503 (2mi, 313°)
LYBE (3mi, 290°) 383ft
BE170 (4mi, 296°)
BE171 (7mi, 241°)
OBR (9mi, 157°) 3000ft
OBR (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DONI2ANESKUVHFleft145 (325)°> 7000ftDME 4.0miICAO rules
DONI2BPAFIXleft68 (248)°> 5000ftDME 5.0miICAO rules
DONI2DDONIVVHFright6 (186)°> 9000ft1.0min timedICAO rules
DONI2RDONIVVHFright6 (186)°> 9000ft1.0min timedICAO rules
DONI2SDONIVVHFright6 (186)°> 9000ft1.0min timedICAO rules
ELGE2BELGEBVHFright182 (2)°> 7000ftDME 5.1miICAO rules
ELGE2KELGEBVHFright182 (2)°> 7000ftDME 5.1miICAO rules
ELGE2LELGEBVHFright182 (2)°> 7000ftDME 5.1miICAO rules
ELGE3AELGEBVHFright182 (2)°> 7000ftDME 5.1miICAO rules
ENUP2QENUPUVHFright182 (2)°> 7000ft1.0min timedICAO rules
ENUP2SENUPUVHFright182 (2)°> 7000ft1.0min timedICAO rules
ENUP3AENUPUVHFright182 (2)°> 7000ft1.0min timedICAO rules
ENUP3CENUPUVHFright182 (2)°> 7000ft1.0min timedICAO rules
GAZO2AGAZONVHFright143 (323)°> 9000ft1.0min timedICAO rules
GAZO2ANESKUVHFleft145 (325)°> 7000ftDME 4.0miICAO rules
GAZO2BGAZONVHFright143 (323)°> 9000ft1.0min timedICAO rules
GAZO2CGAZONVHFright143 (323)°> 9000ft1.0min timedICAO rules
GAZO2DGAZONVHFright143 (323)°> 9000ft1.0min timedICAO rules
OSVI2AOSVIXVHFleft122 (302)°> 9000ft1.0min timedICAO rules
OSVI2BOSVIXVHFleft122 (302)°> 9000ft1.0min timedICAO rules
OSVI2COSVIXVHFleft122 (302)°> 9000ft1.0min timedICAO rules
OSVI2LOSVIXVHFleft122 (302)°> 9000ft1.0min timedICAO rules
OSVI2LPIGINVHFleft118 (298)°> 7000ftDME 4.9miICAO rules
OSVI3KNESKUVHFleft145 (325)°> 7000ftDME 4.0miICAO rules
OSVI3KOSVIXVHFleft122 (302)°> 9000ft1.0min timedICAO rules
RIGM2ARIGMUVHFleft352 (172)°> 7000ft1.0min timedICAO rules
RIGM2BRIGMUVHFleft352 (172)°> 7000ft1.0min timedICAO rules
RIGM2CRIGMUVHFleft352 (172)°> 7000ft1.0min timedICAO rules
RIGM2DRIGMUVHFleft352 (172)°> 7000ft1.0min timedICAO rules
RIGM2KGULBUVHFright218 (38)°> 7000ftDME 3.0miICAO rules
RIGM2KRIGMUVHFleft352 (172)°> 7000ft1.0min timedICAO rules
RIGM2LPAFIXleft68 (248)°> 5000ftDME 5.0miICAO rules
RIGM2LRIGMUVHFleft352 (172)°> 7000ft1.0min timedICAO rules
RIGM2MMALUXVHFright292 (112)°> 7000ftDME 3.0miICAO rules
RIGM2MRIGMUVHFleft352 (172)°> 7000ft1.0min timedICAO rules
TISA2CTISAKVHFleft348 (168)°15000ft - 27000ft1.5min timed280
TISA2FTISAKVHFleft348 (168)°15000ft - 27000ft1.5min timed280
TISA7ATISAKVHFleft348 (168)°15000ft - 27000ft1.5min timed280
TISA8BPAFIXleft68 (248)°> 5000ftDME 5.0miICAO rules
TISA8BTISAKVHFleft348 (168)°15000ft - 27000ft1.5min timed280
TPL7ANESKUVHFleft145 (325)°> 7000ftDME 4.0miICAO rules
*) magnetic outbound (inbound) holding course
