Airports for X-Plane

Colón - Colon Enrique A. Jimenez

Airport details

CountryPanama
StateColón
RegionMP
AirspacePanama Ctr
MunicipalityCristóbal
Elevation22ft (7m)
TimezoneGMT -5
Coordinates9.36056, -79.86723
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMPEJ
IATA codeONX
FAA coden/a

Communication

Colon Enrique A. Jimenez ATIS127.800
Colon Enrique A. Jimenez UNICOM122.800
Colon Enrique A. Jimenez Ground121.700
Colon Enrique A. Jimenez Jimenez Tower118.500
Colon Enrique A. Jimenez Panama Approach119.700
Colon Enrique A. Jimenez Panama Approach121.200
Nearby Points of Interest:
Portobelo
-
Fortifications on the Caribbean Side of Panama: Portobelo-San Lorenzo
-
Embassy of Spain in Panama
-
Instituto Conmemorativo Gorgas de Estudios de la Salud
-
Hospital Santo Tomas
-
Gorgas Hospital
-
Palacio Justo Arosemena
-
Former Panama Canal Railway station
-
Panamá Viejo Cathedral
-
Casco Viejo
-
Municipal Palace of Panama

Runway info

Runway 18 / 36
 length2716m (8911ft)
 bearing182° / 2°
 width46m (151ft)
 surfaceasphalt

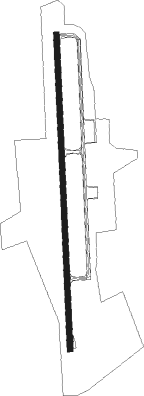

Airport layout


Taxiway locations

 A  B  C
Parking locations

 Tower

Nearby beacons

codeidentifierdistbearingfrequency
FNCFRANCE VOR/DME0.2211°109
TUMTOCUMEN VOR/DME33.3123°117.10
TBGTABOGA ISLAND VOR/DME38.8152°110
RHTRIO HATO VOR/DME61.1195°116.50

Departure and arrival routes

Transition altitude19000ft
Transition level19000ft
SID end pointsdistanceoutbound heading
RW36
 MADEN33mi123°
 MULPO127mi188°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW36EGDON (23°)EGDON 3000ft
KIMEX (5mi, 72°) 2000ft
RW36ENRIG (341°)ENRIG 3000ft
KIMEX (5mi, 292°) 2000ft
 RNAVKIMEX 2000ft
EJ631 (5mi, 2°) 1700ft
MPEJ (6mi, 2°) 78ft
(4805mi, 97°) 1500ft
EGDON (4810mi, 277°) 3000ft
EGDON (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
