Airports for X-Plane

Port-au-prince - Port Au Prince Toussaint Intl

Airport details

CountryHaiti
StateWest
RegionMT
AirspacePort-au-prince Ctr
MunicipalityTabarre
Elevation122ft (37m)
TimezoneGMT -5
Coordinates18.57892, -72.27695
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMTPP
IATA codePAP
FAA coden/a

Communication

Port Au Prince Toussaint Intl ATIS134.150
Port Au Prince Toussaint Intl Tower118.300
Port Au Prince Toussaint Intl Approach119.800

Approach frequencies

ILS-cat-IRW10111.518.00mi
3° GSRW10111.518.00mi

Runway info

Runway 10 / 28
 length3033m (9951ft)
 bearing87° / 267°
 width43m (141ft)
 surfaceasphalt
 blast zone13m (43ft) / 11m (36ft)

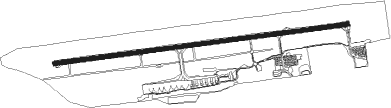

Airport layout


Taxiway locations

 A  B  C
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
PAPPORT AU PRINCE VOR/DME1.5265°115.30
DCRCABO ROJO VOR/DME52.8136°114.30

Departure and arrival routes

Transition altitude17000ft
SID end pointsdistanceoutbound heading
RW10
 SEDE1G, SEDE1F35mi4°
 ETBO1S23mi99°
 KENO1S34mi140°
 TOVO1S29mi156°
 MESL1S, MESL1G, MESL1F27mi190°
 PETB1F, PETB1G44mi212°
 MARO1G, MARO1F37mi262°
 ALPI1G, ALPI1F37mi277°
 SAVA1G, SAVA1F36mi328°
RW28
 ETBO1N23mi99°
 KENO1N34mi140°
 TOVO1N29mi156°
 MESL1N27mi190°
 PETB1N44mi212°
 MARO1N37mi262°
 ALPI1N37mi277°
 DEPL1N36mi306°
 SAVA1N36mi328°

STAR starting pointsdistanceinbound heading
RW10
 MESL1C27.010°
 PP991C46.182°
 MARO1A36.582°
 ALPI1C36.597°
 SAVA1C, SAVA1A35.8148°
 ETBO1C, ETBO1A22.7279°
 KENO1C34.2320°
 TOVO1C28.8336°
RW28
 MESL1D, MESL1B27.010°
 MARO1D36.582°
 ALPI1D36.597°
 SAVA1D35.8148°
 SEDE1D34.8184°
 NABE1D35.4243°
 ETBO1D22.7279°
 KENO1D, KENO1B34.2320°
 TOVO1D, TOVO1B28.8336°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10CAPOI (96°)CAPOI 4000ft
IF010 (6mi, 116°) 3000ft
 RNAVIF010 3000ft
FAF10 (3mi, 87°) 3000ft
MTPP (11mi, 88°) 133ft
PP144 (turn)
PP150 (7mi, 105°)
PP149 (10mi, 306°)
PP612 (19mi, 278°)
CAPOI (5mi, 181°) 4000ft
CAPOI (turn) 4000ft
RW28BADEE (224°)BADEE 6300ft
PP188 (6mi, 172°)
PP187 (8mi, 106°) 4800ft
PP184 (3mi, 198°) 4100ft
IF035 (8mi, 286°) 2000ft
RW28CAPOI (96°)CAPOI 6300ft
BADEE (28mi, 76°) 6300ft
PP188 (6mi, 172°)
PP187 (8mi, 106°) 4800ft
PP184 (3mi, 198°) 4100ft
IF035 (8mi, 286°) 2000ft
RW28ETBOD (279°)ETBOD 5200ft
PP184 (7mi, 286°) 4100ft
IF035 (8mi, 286°) 2000ft
 RNAVIF035 2000ft
FAF28 (3mi, 267°) 2000ft
MTPP (6mi, 266°) 175ft
PP890 (13mi, 268°)
CAPOI (7mi, 292°) 6300ft
CAPOI (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALPI1CCAPOIVHFleft307 (127)°> 4000ft1.0min timed230
ALPI1DBADEEVHFright336 (156)°> 6300ft1.0min timed230
ETBO1APAPNDBright100 (280)°> 7500ft1.0min timedICAO rules
ETBO1CCAPOIVHFleft307 (127)°> 4000ft1.0min timed230
ETBO1DBADEEVHFright336 (156)°> 6300ft1.0min timed230
KENO1CCAPOIVHFleft307 (127)°> 4000ft1.0min timed230
KENO1DBADEEVHFright336 (156)°> 6300ft1.0min timed230
MARO1AMENTUVHFleft287 (107)°> 4000ft1.0min timedICAO rules
MARO1DBADEEVHFright336 (156)°> 6300ft1.0min timed230
MESL1CCAPOIVHFleft307 (127)°> 4000ft1.0min timed230
MESL1DBADEEVHFright336 (156)°> 6300ft1.0min timed230
NABE1DBADEEVHFright336 (156)°> 6300ft1.0min timed230
PP991CCAPOIVHFleft307 (127)°> 4000ft1.0min timed230
SAVA1AMENTUVHFleft287 (107)°> 4000ft1.0min timedICAO rules
SAVA1CCAPOIVHFleft307 (127)°> 4000ft1.0min timed230
SAVA1DBADEEVHFright336 (156)°> 6300ft1.0min timed230
SEDE1DBADEEVHFright336 (156)°> 6300ft1.0min timed230
TOVO1CCAPOIVHFleft307 (127)°> 4000ft1.0min timed230
TOVO1DBADEEVHFright336 (156)°> 6300ft1.0min timed230
*) magnetic outbound (inbound) holding course
