Airports for X-Plane

Cayo Coco - Jardines Del Rey

Airport details

CountryCuba
StateCiego de Avila
RegionMU
AirspaceHavana Ctr
MunicipalityMorón
Elevation13ft (4m)
TimezoneGMT -5
Coordinates22.46111, -78.32861
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMUCC
IATA codeCCC
FAA coden/a

Communication

JARDINES DEL REY Approach/Tower118.800

Approach frequencies

ILS-cat-IRW08108.918.00mi
3° GSRW08108.918.00mi

Runway info

Runway 08 / 26
 length2998m (9836ft)
 bearing72° / 252°
 width45m (148ft)
 surfaceasphalt

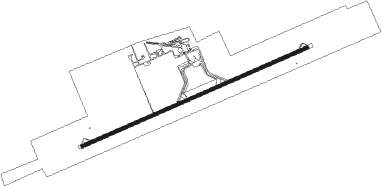

Airport layout


Taxiway locations

 A  B
Parking locations

 Terminal

Nearby beacons

codeidentifierdistbearingfrequency
UCJJARDINES DEL REY (CAYO CO VOR/DME0.969°117.80
UOCCAYO COCO NDB10.6286°310
UPAALEGRE NDB25.2259°382
USRSIMONES NDB50.6214°315

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW08
 PIDNA385mi41°
 BIMBI496mi343°
RW26
 BONIB385mi41°
 RESIT596mi343°

STAR starting pointsdistanceinbound heading
RW08
 RESIT318.4138°
RW26
 SIKNI319.2202°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08CC400 (100°)CC400 3000ft
VOKAT (6mi, 160°) 1500ft
RW08CC401 (43°)CC401 3000ft
VOKAT (6mi, 340°) 1500ft
 RNAVVOKAT 1500ft
CC408 (5mi, 72°) 1500ft
MUCC (5mi, 72°) 60ft
(4758mi, 106°) 1000ft
KASEN (4743mi, 286°)
KASEN (turn)
RW26CC402 (222°)CC402 3000ft
DATNO (6mi, 160°) 1500ft
RW26CC403 (282°)CC403 3000ft
DATNO (6mi, 340°) 1500ft
 RNAVDATNO 1500ft
CC426 (4mi, 252°) 1500ft
MUCC (5mi, 252°) 63ft
(4758mi, 106°) 1000ft
LEXOT (4765mi, 286°)
LEXOT (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
RESIT3RESITVHFright8 (188)°4000ft - 14000ftDME 4.2mi230
SIKNI3SIKNIVHFright3 (183)°4000ft - 14000ftDME 4.2mi230
*) magnetic outbound (inbound) holding course
