Cienfuegos - Jaime Gonzalez

Airport details

Country	Cuba
State	Cienfuegos
Region	MU
Airspace	Havana Ctr
Elevation	102ft (31m)
Timezone	GMT -5
Coordinates	22.15000, -80.41417
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	MUCF
IATA code	CFG
FAA code	n/a

Communication

JAIME GONZALEZ CIENFUEGOS Tower

118.900

Nearby Points of Interest:

Historic Centre of Cienfuegos

Valle de los Ingenios

Runway info

Runway 02 / 20
	length	2411m (7910ft)
	bearing	17° / 197°
	width	45m (148ft)
	surface	asphalt
	blast zone	37m (121ft) / 0m (0ft)

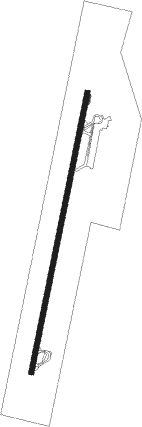

Airport layout

Taxiway locations

Parking locations

Terminal

Nearby beacons

code	identifier	dist	bearing	frequency
ULV	SANTA CLARA NDB	32	53°	287
UVC	SANTA CLARA VOR/DME	32.3	53°	117.20

Departure and arrival routes

Transition altitude

3000ft

SID end points		distance	outbound heading
RW02
	SEGOL1	143mi	41°
	BOSO1A	116mi	119°
	RIBU1A	62mi	297°
RW20
	BOSON5	143mi	41°
	IMUXO4	70mi	244°
	VITAK4	62mi	297°

STAR starting points		distance	inbound heading
RW02
	SEBIR4	22.1	17°
	URKON4	19.3	84°
	BUBOR4	18.3	319°
RW20
	RIBU1B	25.1	146°
	SEGOL4	19.9	197°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW02	CF410 (41°)	CF410 3000ft COCOC (6mi, 86°) 2000ft
RW02	CF411 (353°)	CF411 COCOC (6mi, 304°) 2000ft
	RNAV	COCOC 2000ft CF412 (5mi, 17°) 2000ft MUCF (6mi, 17°) 148ft (4872mi, 105°) 1500ft CF415 (4884mi, 285°) CF415 (turn)
RW20	CF420 (167°)	CF420 3000ft CORSA (6mi, 105°) 2000ft
RW20	CF421 (226°)	CF421 3000ft CORSA (6mi, 285°) 2000ft
	RNAV	CORSA 2000ft CF422 (5mi, 197°) 2000ft MUCF (6mi, 197°) 152ft (4872mi, 105°) 1500ft CF415 (4884mi, 285°) CF415 (turn)

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
BUBOR4	BUBOR	VHF	right	95 (275)°	5000ft - 14000ft	DME 4.3mi	230
RIBU1B	RIBUM	VHF	right	315 (135)°	4000ft - 14000ft	DME 4.2mi	230
SEBIR4	SEBIR	VHF	right	203 (23)°	4000ft - 14000ft	DME 4.2mi	230
SEGOL4	SEGOL	VHF	right	23 (203)°	4000ft - 14000ft	DME 4.2mi	230
URKON4	URKON	VHF	right	319 (139)°	4000ft - 14000ft	DME 4.2mi	230
*) magnetic outbound (inbound) holding course
