Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

traffic airborne non-towered airport air traffic control city stopover concrete aircraft international plane hospital commuter jetliner airspeed aerodrome metro air safety taxi seaplane airport apron

Airports for X-Plane

Rotorua

Airport details

CountryNew Zealand
StateBay of Plenty
RegionNZ
MunicipalityRotorua
Elevation935ft (285m)
TimezoneGMT +12
Coordinates-38.10917, 176.31721
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeNZRO
IATA codeROT
FAA coden/a

Communication

Rotorua ATIS128.800
Rotorua CTAF121.200
Rotorua Tower121.200
Rotorua CHRISTCHURCH Approach119.500
Nearby Points of Interest:
Te Hāhi o te Whakapono / St Faith's Anglican Church Ohinemutu

Runway info

Runway 18 / 36
 length1846m (6056ft)
 bearing211° / 31°
 width30m (98ft)
 surfaceasphalt
 blast zone155m (509ft) / 124m (407ft)
Runway 18L / 36R
 length719m (2359ft)
 bearing211° / 31°
 width50m (164ft)
 surfacegrass

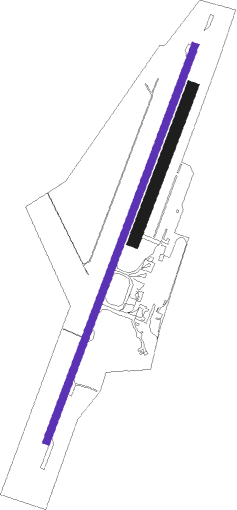

Airport layout - runway 18 / 36


Taxiway locations

 C  D

Nearby beacons

codeidentifierdistbearingfrequency
ROROTORUA VOR/DME0.1289°112.10
TGTAURANGA NDB26.5344°346
WKWHAKATANE NDB30.373°362
WKDME30.473°117.70
APTAUPO NDB39.7201°230
HNHAMILTON VOR/DME48.8285°114

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW18
 TOTR3P25mi183°
 TOTRA512mi237°
 ORAK2P30mi320°
RW36
 OKERE412mi31°
 DOLS2R25mi183°
 NIKO2R30mi320°

STAR starting pointsdistanceinbound heading
RW18
 REVE1A13.1184°
 ABTU2A12.9235°
RW36
 INTO1B30.038°
 SURK2B12.739°
 IBAM1B25.051°
 LALA1B19.1105°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18-ZOKERE (211°)OKERE
NIKOR (3mi, 214°) 3000ft
 RNAVNIKOR 3000ft
ELKOB (4mi, 211°) 2260ft
NZRO (5mi, 209°) 985ft
TOTRA (12mi, 237°) 5000ft
TOTRA (turn)
RW36-YTOTRA (57°)TOTRA 4000ft
 RNAVTOTRA 4000ft
ADKAG (2mi, 63°) 4000ft
SEKBU (2mi, 63°) 3500ft
RO366 (5mi, 63°) 1900ft
RO364 (turn) 1570ft
NZRO (2mi, 33°) 988ft
RO362 (7mi, 30°)
OKERE (5mi, 33°) 4000ft
OKERE (turn) 4000ft
RWNVBTOTRA (57°)TOTRA 4000ft
 RNAVTOTRA 4000ft
FF031 (6mi, 57°) 2820ft
MA031 (4mi, 57°) 1321ft
OKERE (13mi, 34°) 4000ft
OKERE (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABTU2AOKEREVHFright6 (186)°> 4000ft1.0min timedICAO rules
DUBA1BOKEREVHFright6 (186)°> 4000ft1.0min timedICAO rules
DUBA1BTOTRAVHFright210 (30)°> 4000ft1.0min timed200
IBAM1BTOTRAVHFright210 (30)°> 4000ft1.0min timed200
INTO1BINTOXVHFleft178 (358)°> 4500ft1.0min timedICAO rules
INTO1BTOTRAVHFright210 (30)°> 4000ft1.0min timed200
LALA1BESKERVHFright292 (112)°> 5500ft1.0min timedICAO rules
LALA1BTOTRAVHFright210 (30)°> 4000ft1.0min timed200
LEDA2AESKERVHFright292 (112)°> 5500ft1.0min timedICAO rules
LEDA2AINTOXVHFleft178 (358)°> 4500ft1.0min timedICAO rules
LEDA2AOKEREVHFright6 (186)°> 4000ft1.0min timedICAO rules
LEDA2ATOTRAVHFright210 (30)°> 4000ft1.0min timed200
LEDA2CESKERVHFright292 (112)°> 5500ft1.0min timedICAO rules
LEDA2CINTOXVHFleft178 (358)°> 4500ft1.0min timedICAO rules
LEDA2CTOTRAVHFright210 (30)°> 4000ft1.0min timed200
REVE1AOKEREVHFright6 (186)°> 4000ft1.0min timedICAO rules
SURK2BTOTRAVHFright210 (30)°> 4000ft1.0min timed200
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
