Airports for X-Plane

Wellington - Wellington Intl

Airport details

CountryNew Zealand
StateWellington
RegionNZ
Elevation41ft (12m)
TimezoneGMT +12
Coordinates-41.32722, 174.80528
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeNZWN
IATA codeWLG
FAA coden/a

Communication

Wellington Intl ATIS126.900
Wellington Intl DEL128.200
Wellington Intl Ground Control121.900
Wellington Intl Tower118.800
Wellington Intl Approach119.300
Wellington Intl Departure122.300

Approach frequencies

ILS-cat-IRW16110.318.00mi
ILS-cat-IRW34109.918.00mi
3° GSRW16110.318.00mi
3° GSRW34109.918.00mi
Nearby Points of Interest:
Erskine College, Wellington
-
Berhampore State Flats
-
112-126 Riddiford Street
-
William Wakefield Memorial
-
Elliott House
-
New Zealand Dominion Museum building
-
Freyberg Pool
-
Aida Konditorei
-
Barber’s Buildings
-
Albemarle Hotel
-
279 Willis Street
-
Bank of New Zealand building, Wellington
-
Inverlochy House
-
Star Boating Club
-
Wellington Town Hall
-
St John's Church, Wellington
-
Dixon Street Flats
-
Dominion Building, Wellington
-
Gordon Wilson Flats
-
Stewart Dawson's Building
-
Old BNZ Building
-
Antrim House
-
Wellington Harbour Board Head Office and Bond Store
-
Carrigafoyle, Wellington
-
AMP Society Building

Runway info

Runway 16 / 34
 length1817m (5961ft)
 bearing184° / 4°
 width44m (144ft)
 surfaceasphalt
 blast zone154m (505ft) / 153m (502ft)

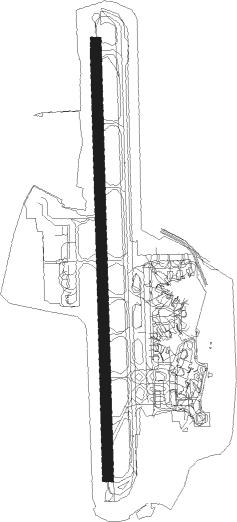

Airport layout


Taxiway locations

 A  A1  A10  A11  A2  A3  A4  A5
 A6  A7  A8  A9  B9  M4  M5
Parking locations

 10  11  12  13  16  16N  16S  17
 21  22  23  24  25  26  27  28
 29  3N  3S  4N  4S  5  5N  5S
 75N  75W  77N  77S  78  79N  79S  81
 82  83  84  9  Execujet  GA  life  R2

Nearby beacons

codeidentifierdistbearingfrequency
WNWELLINGTON VOR/DME0.7131°112.30
NLNEWLANDS (WELLINGTON) NDB613°358
TRDME21.7288°114.60
PPPARAPARAUMU NDB26.723°242
BMDME36.4257°117.90
WBWOODBOURNE VOR/DME43.9258°115.60

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW16
 KADN2Q40mi1°
 REVN2Q35mi110°
 TAXU5Q32mi215°
 DOGB1Q253mi259°
 MESE3Q24mi309°
RW34
 KALE3P32mi215°
 POLA5P, POLA5R253mi259°
 ISNI5P, ISNI5T24mi309°

STAR starting pointsdistanceinbound heading
RW16
 WARD2D, WARD3B42.151°
 SIMZ3B, SIMZ1D38.390°
 AVPO1D, AVPO1B20.991°
 TPAP1D, TPAP3B40.5151°
 DOGA4B41.4226°
 LADI6B24.7237°
 ATSU5B34.5290°
RW34
 WARD5A, WARD2C42.151°
 SULR3A, SULR2C25.467°
 IGMU2A20.474°
 SIMZ6A, SIMZ2C38.390°
 TPAP1C, TPAP3A40.5151°
 DOGA3A41.4226°
 LADI6A24.7237°
 ATSU3A34.5290°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16-XDORBU (116°)DORBU 6000ft
WN509 (5mi, 58°)
WN416 (4mi, 86°) 3000ft
RW16-XHUWIT (151°)HUWIT 6000ft
WN513 (4mi, 123°)
WN416 (2mi, 119°) 3000ft
 RNAVWN416 3000ft
RIDGE (3mi, 145°) 2010ft
NZWN (7mi, 185°) 91ft
WN512 (2mi, 181°)
TAXUP (7mi, 184°) 3000ft
RW16-ZWITBY (184°)WITBY 3000ft
CANES (4mi, 184°) 2580ft
 RNAVCANES 2580ft
OLBIN (2mi, 184°) 2000ft
NZWN (7mi, 185°) 91ft
TAXUP (9mi, 183°) 3000ft
RW34-XMEEDA (52°)MEEDA
WN514 (3mi, 71°)
WN423 (2mi, 79°)
WN412 (2mi, 87°) 3000ft
RW34-XRIPPA (67°)RIPPA
WN411 (3mi, 132°)
WN506 (2mi, 119°)
WN412 (2mi, 97°) 3000ft
 RNAVWN412 3000ft
WN508 (3mi, 63°) 2000ft
SULAB (1mi, 20°) 1610ft
NZWN (5mi, 3°) 74ft
WN414 (turn)
WN511 (1mi, 18°)
WN417 (1mi, 18°)
WN507 (3mi, 4°)
WITBY (6mi, 357°) 3000ft
RW34-YUMAG1 (103°)UMAGA 3400ft
BUTIN (2mi, 4°) 2000ft
WN402 (2mi, 4°) 2000ft
RW34-YUMAG2 (103°)UMAGA 2000ft
BUTIN (2mi, 4°) 2000ft
WN402 (2mi, 4°) 2000ft
 RNAVWN402 2000ft
ROZAN (2mi, 4°) 1460ft
NZWN (5mi, 3°) 74ft
WITBY (12mi, 4°) 3000ft
RW34-ZUMAG1 (103°)UMAGA 3400ft
BUTIN (2mi, 4°) 2000ft
WN402 (2mi, 4°) 2000ft
RW34-ZUMAG2 (103°)UMAGA 2000ft
BUTIN (2mi, 4°) 2000ft
WN402 (2mi, 4°) 2000ft
 RNAVWN402 2000ft
ROZAN (2mi, 4°) 1460ft
WN403 (3mi, 4°) 500ft
WITBY (14mi, 4°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ATSU3AUMAGAVHFleft163 (343)°> 3400ft1.0min timedICAO rules
ATSU5BWITBYVHFright339 (159)°> 3500ft1.0min timedICAO rules
AVPO1BHUWITVHFleft207 (27)°> 4000ft1.0min timedICAO rules
AVPO1BWITBYVHFright339 (159)°> 3500ft1.0min timedICAO rules
AVPO1DHUWITVHFleft207 (27)°> 4000ft1.0min timedICAO rules
DOGA3ADOGADVHFright1 (181)°> 7300ft1.0min timedICAO rules
DOGA3ALADITVHFleft1 (181)°> 7300ft1.0min timedICAO rules
DOGA3AUMAGAVHFleft163 (343)°> 3400ft1.0min timedICAO rules
DOGA4BDOGADVHFright1 (181)°> 7300ft1.0min timedICAO rules
DOGA4BLADITVHFleft1 (181)°> 7300ft1.0min timedICAO rules
DOGA4BWITBYVHFright339 (159)°> 3500ft1.0min timedICAO rules
IGMU2AMEEDAVHFright246 (66)°> 2900ft1.0min timedICAO rules
IGMU2AUMAGAVHFleft163 (343)°> 3400ft1.0min timedICAO rules
LADI6ALADITVHFleft1 (181)°> 7300ft1.0min timedICAO rules
LADI6AUMAGAVHFleft163 (343)°> 3400ft1.0min timedICAO rules
LADI6BLADITVHFleft1 (181)°> 7300ft1.0min timedICAO rules
LADI6BWITBYVHFright339 (159)°> 3500ft1.0min timedICAO rules
SIMZ1DHUWITVHFleft207 (27)°> 4000ft1.0min timedICAO rules
SIMZ1DSIMZIVHFleft249 (69)°> 6400ft1.0min timedICAO rules
SIMZ2CMEEDAVHFright246 (66)°> 2900ft1.0min timedICAO rules
SIMZ2CSIMZIVHFleft249 (69)°> 6400ft1.0min timedICAO rules
SIMZ3BHUWITVHFleft207 (27)°> 4000ft1.0min timedICAO rules
SIMZ3BSIMZIVHFleft249 (69)°> 6400ft1.0min timedICAO rules
SIMZ3BWITBYVHFright339 (159)°> 3500ft1.0min timedICAO rules
SIMZ6AMEEDAVHFright246 (66)°> 2900ft1.0min timedICAO rules
SIMZ6ASIMZIVHFleft249 (69)°> 6400ft1.0min timedICAO rules
SIMZ6AUMAGAVHFleft163 (343)°> 3400ft1.0min timedICAO rules
SULR2CMEEDAVHFright246 (66)°> 2900ft1.0min timedICAO rules
SULR3AMEEDAVHFright246 (66)°> 2900ft1.0min timedICAO rules
SULR3AUMAGAVHFleft163 (343)°> 3400ft1.0min timedICAO rules
TPAP1CFICANVHFright330 (150)°> 4000ft1.0min timedICAO rules
TPAP1CTPAPAVHFright330 (150)°1200ft - 46000ft1.0min timedICAO rules
TPAP1DBRUDAVHFright330 (150)°> 4000ft1.0min timedICAO rules
TPAP1DHUWITVHFleft207 (27)°> 4000ft1.0min timedICAO rules
TPAP1DTPAPAVHFright330 (150)°1200ft - 46000ft1.0min timedICAO rules
TPAP3AFICANVHFright330 (150)°> 4000ft1.0min timedICAO rules
TPAP3ATPAPAVHFright330 (150)°1200ft - 46000ft1.0min timedICAO rules
TPAP3AUMAGAVHFleft163 (343)°> 3400ft1.0min timedICAO rules
TPAP3BBRUDAVHFright330 (150)°> 4000ft1.0min timedICAO rules
TPAP3BHUWITVHFleft207 (27)°> 4000ft1.0min timedICAO rules
TPAP3BTPAPAVHFright330 (150)°1200ft - 46000ft1.0min timedICAO rules
TPAP3BWITBYVHFright339 (159)°> 3500ft1.0min timedICAO rules
WARD2CMEEDAVHFright246 (66)°> 2900ft1.0min timedICAO rules
WARD2CWARDSVHFleft193 (13)°8000ft - 60000ft1.0min timedICAO rules
WARD2DWARDSVHFleft193 (13)°8000ft - 60000ft1.0min timedICAO rules
WARD3BHUWITVHFleft207 (27)°> 4000ft1.0min timedICAO rules
WARD3BWARDSVHFleft193 (13)°8000ft - 60000ft1.0min timedICAO rules
WARD3BWITBYVHFright339 (159)°> 3500ft1.0min timedICAO rules
WARD5AMEEDAVHFright246 (66)°> 2900ft1.0min timedICAO rules
WARD5AUMAGAVHFleft163 (343)°> 3400ft1.0min timedICAO rules
WARD5AWARDSVHFleft193 (13)°8000ft - 60000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
