Airports for X-Plane

Brooktrails - Ells Field-willits Muni

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceOakland Ctr
MunicipalityWillits
Elevation2062ft (628m)
TimezoneGMT -8
Coordinates39.45190, -123.37306
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeO28
IATA coden/a
FAA coden/a

Communication

Ells Field-Willits Muni CTAF/UNICOM122.800
Nearby Points of Interest:
Willits station
-
Weller House (Fort Bragg, California)
-
Mendocino Masonic Hall
-
Mendocino and Headlands Historic District

Runway info

Runway 16 / 34
 length915m (3002ft)
 bearing174° / 354°
 width23m (75ft)
 surfaceasphalt

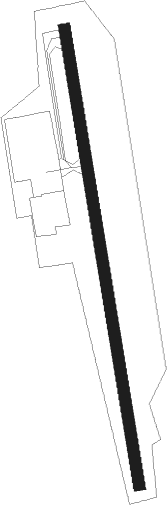

Airport layout


Parking locations

 Helipad  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
UKKEARN (UKIAH) NDB12.2143°371
ENIMENDOCINO (UKIAH) VORTAC24.3166°112.30
STSROSA DME62.4149°116.15

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW16
 ENI124mi166°
RW34
 FLUEN210mi297°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16NEAPO (157°)NEAPO 6000ft
RW16XUGME (196°)XUGME
NEAPO (8mi, 255°) 6000ft
RW16ZONOJ (125°)ZONOJ
NEAPO (7mi, 75°) 6000ft
 RNAVNEAPO 6000ft
ADBAW (4mi, 156°) 4800ft
LEFOR (3mi, 156°) 4000ft
GRAIE (5mi, 156°) 2260ft
(6914mi, 108°) 2466ft
HERMT (6919mi, 288°) 6000ft
HERMT (turn)
RW34HERMT (354°)HERMT 6000ft
RW34IGAYO (316°)IGAYO
HERMT (8mi, 266°) 6000ft
RW34NIKBY (33°)NIKBY
HERMT (8mi, 86°) 6000ft
 RNAVHERMT 6000ft
TREAS (7mi, 354°) 3900ft
JENBU (turn) 3600ft
O28 (5mi, 353°) 2068ft
(6915mi, 108°) 2466ft
NEAPO (6914mi, 288°) 6100ft
NEAPO (turn) 6100ft
