Airports for X-Plane

Herat - Khwaja Abdullah Ansari Intl

Airport details

CountryAfghanistan
StateHerat Province
RegionOA
AirspaceKabul Ctr
MunicipalityGuzara
Elevation3206ft (977m)
TimezoneGMT +4.5
Coordinates34.21000, 62.22833
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOAHR
IATA codeHEA
FAA coden/a

Communication

Khwaja Abdullah Ansari Intl Tower118.100

Runway info

Runway 18 / 36
 length3009m (9872ft)
 bearing189° / 9°
 width44m (144ft)
 surfaceasphalt
 blast zone150m (492ft) / 150m (492ft)

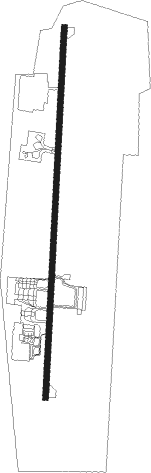

Airport layout


Parking locations

 C1  C2  C3  C5  C6  Mil

Nearby beacons

codeidentifierdistbearingfrequency
HRTHERAT NDB0.167°412
AHRHERAT VOR/DME0.2125°116.20
ASDSHINDAND TACAN49.2178°111.10

Departure and arrival routes

Transition altitude14000ft
Transition level16000ft
SID end pointsdistanceoutbound heading
RW18
 DAXU2D64mi49°
 QALA7B64mi49°
 VELD7B, VELD2D134mi84°
 ALEX7B68mi149°
 SHIN7B49mi178°
 SOKA2D, SOKA7B99mi238°
 CHAR7B79mi311°
RW36
 QALA7B64mi49°
 DAXU2A64mi49°
 VELD2A, VELD7B134mi84°
 ALEX7B68mi149°
 SHIN7B49mi178°
 SOKA2A, SOKA7B99mi238°
 CHAR7B79mi311°

STAR starting pointsdistanceinbound heading
ALL
 KALO1A29.9228°
 SARS1A29.9264°
 RUTA1A29.8306°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
KALO1AAHRNDBright245 (65)°> 7000ft1.0min timedICAO rules
RUTA1AAHRNDBright245 (65)°> 7000ft1.0min timedICAO rules
SARS1AAHRNDBright245 (65)°> 7000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
