Mazar I Sharif

Airport details

Country	Afghanistan
State	Balkh Province
Region	OA
Airspace	Kabul Ctr
Municipality	Marmul
Elevation	1287ft (392m)
Timezone	GMT +4.5
Coordinates	36.71160, 67.21564
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	OAMS
IATA code	MZR
FAA code	n/a

Communication

Mazar I Sharif Tower

135.350

Approach frequencies

ILS-cat-I	RW24	109.1	18.00mi
ILS-cat-I	RW06	109.9	18.00mi
3° GS	RW24	109.1	18.00mi
3° GS	RW06	109.9	18.00mi

Runway info

Runway 06 / 24
	length	2996m (9829ft)
	bearing	70° / 250°
	width	50m (164ft)
	surface	asphalt
	blast zone	150m (492ft) / 152m (499ft)

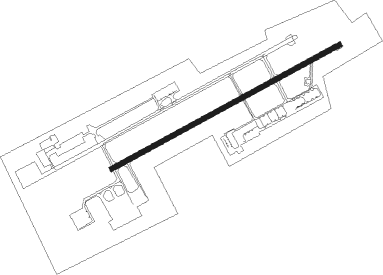

Airport layout

Taxiway locations

B	C1	C2	E	F	G	H	P
S

Parking locations

Ramp

Nearby beacons

code	identifier	dist	bearing	frequency
AMS	MAZAR VOR/DME	0.6	205°	116.80
TRZ	TERMEZ VOR/DME	34.8	10°	113.40
N	TERMEZ NDB	35.3	12°	193
NO	TERMEZ NDB	36	14°	398
HA	SHERABAD NDB	59.4	351°	340

Departure and arrival routes

Transition altitude

14000ft

Transition level

16000ft

SID end points		distance	outbound heading
RW06
	AMDA3B	30mi	14°
	KHOL1E, KHOL2D, KHOL3B	23mi	89°
	UKMU2D, UKMU3B	43mi	253°
RW24
	AMDA3A	30mi	14°
	KHOL2A, KHOL3A	23mi	89°
	UKMU1B, UKMU2A, UKMU3A	43mi	253°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW06	KHOLM (269°)	KHOLM 11000ft MS525 (14mi, 325°) 3000ft MS523 (18mi, 250°) 3000ft MS521 (13mi, 250°) 3000ft MS511 (5mi, 151°) 3000ft
RW06	MS500 (70°)	MS500 8000ft MS510 (17mi, 70°) 7000ft MS511 (5mi, 70°) 3000ft
RW06	MS600 (157°)	MS600 5000ft MS523 (16mi, 151°) 3000ft MS521 (13mi, 250°) 3000ft MS511 (5mi, 151°) 3000ft
	RNAV	MS511 3000ft MS512 (5mi, 70°) 3000ft OAMS (6mi, 68°) 1337ft OAMS (turn) 2000ft MS600 (21mi, 337°) 5000ft MS600 (turn)
RW24	KHOLM (269°)	KHOLM 11000ft MS610 (9mi, 325°) 3000ft MS611 (8mi, 250°)
RW24	MS500 (70°)	MS500 8000ft MS520 (9mi, 39°) 8000ft MS521 (14mi, 70°) 7000ft MS523 (13mi, 70°) 3000ft MS524 (10mi, 70°) 3000ft MS611 (5mi, 151°)
RW24	MS600 (157°)	MS600 5000ft MS523 (16mi, 151°) 3000ft MS524 (10mi, 70°) 3000ft MS611 (5mi, 151°)
	RNAV	MS611 3000ft MS612 (6mi, 250°) 3000ft OAMS (6mi, 253°) 1317ft MS522 (9mi, 249°) MS600 (24mi, 4°) 5000ft MS600 (turn)
