Airports for X-Plane

Prince Abdul Majeed Bin Abdulaziz Domest - P.abdul Majeed Bin Abdulaziz

Airport details

CountrySaudi Arabia
StateMedina Province
RegionOE
AirspaceJeddah Ctr
MunicipalityAl Ula
Elevation2044ft (623m)
TimezoneGMT +3
Coordinates26.48298, 38.11871
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOEAO
IATA coden/a
FAA coden/a

Communication

No airport communication available for OEAO

Runway info

Runway 12 / 30
 length3050m (10007ft)
 bearing117° / 297°
 width45m (148ft)
 surfaceasphalt
 blast zone241m (791ft) / 241m (791ft)

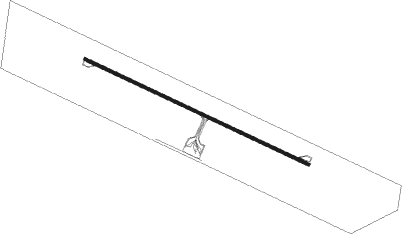

Airport layout


Parking locations

 1  2  3  New

Nearby beacons

codeidentifierdistbearingfrequency
AUAALULA INTL VOR/DME1.3117°114.90

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12KULDA (319°)KULDA
MITAB (43mi, 306°) 5500ft
SESMI (5mi, 32°) 5500ft
2NM (5mi, 117°) 4400ft
ITREP (2mi, 118°) 3900ft
RW12MEDKA (266°)MEDKA
RADEV (41mi, 281°) 5500ft
SESMI (5mi, 212°) 5500ft
2NM (5mi, 117°) 4400ft
ITREP (2mi, 118°) 3900ft
RW12NADIK (62°)NADIK
MITAB (14mi, 19°) 5500ft
SESMI (5mi, 32°) 5500ft
2NM (5mi, 117°) 4400ft
ITREP (2mi, 118°) 3900ft
 RNAVITREP 3900ft
35THR (2mi, 117°) 3160ft
OEAO (4mi, 117°) 2045ft
(2717mi, 235°) 3500ft
DEDAD (2703mi, 55°) 6000ft
DEDAD (turn) 6000ft
RW30KULDA (319°)KULDA
OBROR (17mi, 342°) 5500ft
59NM (4mi, 296°) 4800ft
ALSEN (6mi, 298°) 3900ft
RW30MEDKA (266°)MEDKA
OBROR (20mi, 241°) 5500ft
59NM (4mi, 296°) 4800ft
ALSEN (6mi, 298°) 3900ft
RW30NADIK (62°)NADIK
TAMTO (30mi, 93°) 5500ft
OBROR (5mi, 32°) 5500ft
59NM (4mi, 296°) 4800ft
ALSEN (6mi, 298°) 3900ft
 RNAVALSEN 3900ft
41THR (2mi, 297°) 3400ft
24THR (2mi, 297°) 2860ft
OEAO (3mi, 297°) 2096ft
(2717mi, 235°) 3500ft
DEDAD (2703mi, 55°) 6000ft
DEDAD (turn) 6000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
