Airports for X-Plane

Medina - Prince Mohammad Bin Abdulaziz

Airport details

CountrySaudi Arabia
StateMedina Province
RegionOE
AirspaceJeddah Ctr
MunicipalityMedina
Elevation2149ft (655m)
TimezoneGMT +3
Coordinates24.55028, 39.70583
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOEMA
IATA codeMED
FAA coden/a

Communication

Prince Mohammad bin Abdulaziz Ground Control121.600
Prince Mohammad bin Abdulaziz Ground Control121.900
Prince Mohammad bin Abdulaziz MADINAH Tower118.300
Prince Mohammad bin Abdulaziz MADINAH Approach124.200

Approach frequencies

ILS-cat-IIRW35111.318.00mi
ILS-cat-IIRW17111.718.00mi
3° GSRW35111.318.00mi
3° GSRW17111.718.00mi

Runway info

Runway 17 / 35
 length4352m (14278ft)
 bearing168° / 348°
 width60m (197ft)
 surfaceasphalt
 blast zone0m (0ft) / 120m (394ft)
Runway 18 / 36
 length3063m (10049ft)
 bearing184° / 4°
 width45m (147ft)
 surfaceasphalt
 blast zone120m (394ft) / 120m (394ft)

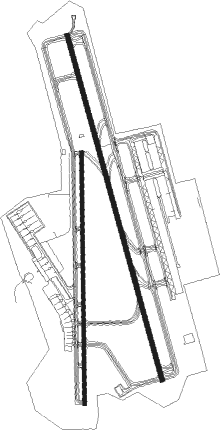

Airport layout


Taxiway locations

 A  B  C  D  D1  E  F  G
 H  J  J1  J2  J3  J4  J5  J7
 J8  K  N  P  W
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
PMAMADINAH VOR/DME0.1191°114.10

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW17
 MIXU1J, MIXU1N50mi34°
 MEDR1J, MEDR1N50mi96°
 SISU1N, SISU1J50mi199°
 UKTO1N, UKTO1J50mi257°
 PEGU1N, PEGU1J50mi321°
 ALTE1N, ALTE1J50mi347°
RW18
 MIXU1M, MIXU1C50mi34°
 MEDR1C, MEDR1M50mi96°
 SISU1M, SISU1C50mi199°
 UKTO1C, UKTO1M50mi257°
 PEGU1C, PEGU1M50mi321°
 ALTE1C, ALTE1M50mi347°
RW35
 MIXU1P, MIXU1K50mi34°
 MEDR1P, MEDR1K50mi96°
 SISU1P, SISU1K50mi199°
 UKTO1P, UKTO1K50mi257°
 PEGU1P, PEGU1K50mi321°
 ALTE1K, ALTE1P50mi347°
RW36
 MIXU1L, MIXU1D50mi34°
 MEDR1D, MEDR1L50mi96°
 SISU1L, SISU1D50mi199°
 UKTO1D, UKTO1L50mi257°
 PEGU1L, PEGU1D50mi321°
 ALTE1D, ALTE1L50mi347°

STAR starting pointsdistanceinbound heading
RW17
 DEGV1G50.33°
 TAMG1G49.992°
 BOVE1G49.9117°
 LABK1G50.0191°
 EMUR1G74.8246°
 ITSE1G49.8263°
 ORLI1G18.9263°
 ELON1G50.0296°
RW18
 DEGV1E50.33°
 TAMG1E49.992°
 BOVE1E49.9117°
 LABK1E50.0191°
 EMUR1E74.8246°
 ITSE1E49.8263°
 ORLI1E18.9263°
 ELON1E50.0296°
RW35
 DEGV1H50.33°
 TAMG1H49.992°
 BOVE1H49.9117°
 LABK1H50.0191°
 EMUR1H74.8246°
 ITSE1H49.8263°
 ORLI1H18.9263°
 ELON1H50.0296°
RW36
 DEGV1F50.33°
 TAMG1F49.992°
 BOVE1F49.9117°
 LABK1F50.0191°
 EMUR1F74.8246°
 ITSE1F49.8263°
 ORLI1F18.9263°
 ELON1F50.0296°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17MA407 (168°)MA407 6300ft
EGMEM (6mi, 168°) 6200ft
 RNAVEGMEM 6200ft
MA455 (7mi, 168°) 4500ft
OEMA (9mi, 169°) 2184ft
MA454 (3mi, 165°) 3200ft
ORLIG (19mi, 74°) 6000ft
ORLIG (turn) 6000ft
RW18MA465 (184°)MA465 6400ft
MA415 (6mi, 184°) 6400ft
 RNAVMA415 6400ft
MA417 (8mi, 185°) 5000ft
OEMA (10mi, 183°) 2174ft
MA419 (3mi, 187°) 3100ft
ORLIG (20mi, 74°) 6000ft
ORLIG (turn) 6000ft
RW35MA443 (348°)MA443 6300ft
OBTOX (6mi, 348°) 6000ft
 RNAVOBTOX 6000ft
MA703 (8mi, 348°) 4400ft
OEMA (8mi, 347°) 2113ft
MA702 (5mi, 350°) 3500ft
ORLIG (20mi, 95°) 6000ft
ORLIG (turn) 6000ft
RW36MA428 (5°)MA428 6300ft
MA430 (6mi, 4°) 6000ft
 RNAVMA430 6000ft
MA510 (10mi, 4°) 3800ft
OEMA (6mi, 6°) 2109ft
MA508 (5mi, 2°) 3400ft
ORLIG (19mi, 96°) 6000ft
ORLIG (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ELON1FORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
ELON1HORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
EMUR1EORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
EMUR1FORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
EMUR1GORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
EMUR1HORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
ITSE1EORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
ITSE1FORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
ITSE1GORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
ITSE1HORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
ORLI1EORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
ORLI1FORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
ORLI1GORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
ORLI1HORLIGVHFright78 (258)°8000ft - 12000ft1.0min timed230
*) magnetic outbound (inbound) holding course
