Airports for X-Plane

Riyadh - Riyadh King Khaled Intl.

Airport details

CountrySaudi Arabia
StateRiyadh Region
RegionOE
AirspaceJeddah Ctr
MunicipalityRiyadh governorate
Elevation2047ft (624m)
TimezoneGMT +3
Coordinates24.97941, 46.69398
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOERK
IATA codeRUH
FAA coden/a

Communication

Riyadh King Khaled Intl. ATS127.150
Riyadh King Khaled Intl. CLD121.700
Riyadh King Khaled Intl. Ground Control121.800
Riyadh King Khaled Intl. Tower118.600
Riyadh King Khaled Intl. Approach120.000
Riyadh King Khaled Intl. Departure120.000

Approach frequencies

ILS-cat-IRW15L109.518.00mi
ILS-cat-IRW33L110.118.00mi
ILS-cat-IRW33R109.118.00mi
ILS-cat-IRW15R110.518.00mi
3° GSRW15L109.518.00mi
3° GSRW33L110.118.00mi
3° GSRW33R109.118.00mi
3° GSRW15R110.518.00mi
Nearby Points of Interest:
Diriyah governorate

Runway info

Runway 15R / 33L
 length4219m (13842ft)
 bearing148° / 328°
 width60m (197ft)
 surfaceasphalt
 blast zone117m (384ft) / 117m (384ft)
Runway 15L / 33R
 length4216m (13832ft)
 bearing148° / 328°
 width60m (197ft)
 surfaceasphalt
 blast zone117m (384ft) / 117m (384ft)

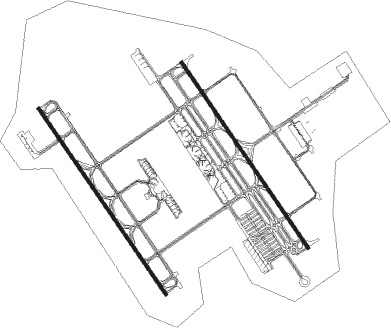

Airport layout


Taxiway locations

 A  A1  A2  A6  A7  D  E  F
 G  G1  G2  G3  G4  G5  G6  G7
 H  H1  H3  H4  N  P  R  ROYAL1
 ROYAL2  S  T  U  V
Parking locations

 10E  11E  12E  13  13E  14  15  16
 17  18  1W  23  24  25  26  27
 28  2A  2E  2W  33  34  35  36
 37  38  3A  3E  3W  41  42  43
 4E  4W  50  504  505  506  507  508
 509  510  511  52  53  54  55  5E-A
 5E-B  5W  6E  6W  7E  7W  8E  8W
 90  91  92  93  94  95  96  97
 98  99  9E  A1  A10  A2  A3  A4
 A5  A6  A7  A8  A9  C1  C10  C11
 C1C  C2  C2C  C3  C3C  C4  C5  C6
 C7  C8  C9  E20  E21  E22  E23  E24
 E25  E26  E27  E28  E29  E30  E31  E32
 E33  E34  E35  E36  E37  E38  E39  Helicopter

Nearby beacons

codeidentifierdistbearingfrequency
KIARIYADH VORTAC6.6145°113.30
RIYKING SALMAN AB (RIYADH) VORTAC15.6173°114.50
RAZKHASHM ALAN VOR/DME25.8148°114.20
PS3PUMP STATION 3 NDB44.976°315
AKJAL KHARJ VORTAC67.1142°117.30
PSAPRINCE SULTAN VORTAC72.9136°115.40

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW15L
 ESRA1G56mi22°
 ALTA1G57mi40°
 TAKT1G61mi70°
 KOBO1G62mi83°
 RESA1G56mi156°
 MUNT1G65mi186°
 DURM1G60mi240°
 IVON1G56mi274°
 METN1G54mi313°
 MURL1G54mi353°
RW15R
 ESRA1H56mi22°
 ALTA1H57mi40°
 TAKT1H61mi70°
 KOBO1H62mi83°
 RESA1H56mi156°
 MUNT1H65mi186°
 DURM1H60mi240°
 IVON1H56mi274°
 METN1H54mi313°
 MURL1H54mi353°
RW33L
 ESRA1J56mi22°
 ALTA1J57mi40°
 TAKT1J61mi70°
 KOBO1J62mi83°
 RESA1J56mi156°
 MUNT1J65mi186°
 DURM1J60mi240°
 IVON1J56mi274°
 METN1J54mi313°
 MURL1J54mi353°
RW33R
 ESRA1K56mi22°
 ALTA1K57mi40°
 TAKT1K61mi70°
 KOBO1K62mi83°
 RESA1K56mi156°
 MUNT1K65mi186°
 DURM1K60mi240°
 IVON1K56mi274°
 METN1K54mi313°
 MURL1K54mi353°

STAR starting pointsdistanceinbound heading
ALL
 MUNT1A65.36°
 TEVO1A62.535°
 KAVU1A57.775°
 VELO1A54.2113°
 METN1A53.5133°
 MURL1A54.1173°
 ESRA1A55.9202°
 ETBA1A59.0235°
 TAKT1A60.7250°
 KOBO1A62.3263°
 RESA1A55.9336°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15LBOS1A (62°)BOSEB 11000ft
ALMUM (6mi, 62°) 11000ft
TALDI (15mi, 328°) 7500ft
RK412 (7mi, 62°) 6000ft
RW15LITK1A (62°)ITKUS 12000ft
OBSAR (6mi, 242°) 12000ft
HAZEM (15mi, 328°) 7500ft
RK412 (6mi, 242°) 6000ft
 RNAVRK412 6000ft
RK410 (6mi, 148°) 4500ft
OERK (7mi, 150°) 2086ft
15LM1 (5mi, 144°) 3200ft
EGPOM (7mi, 91°) 4700ft
DE002 (7mi, 63°) 6000ft
LOPAK (14mi, 32°) 8000ft
LOPAK (turn) 8000ft
RW15RBOS1B (62°)BOSEB 11000ft
ALMUM (6mi, 62°) 11000ft
TALDI (15mi, 328°) 7500ft
RK406 (6mi, 62°) 6000ft
RW15RITK1B (62°)ITKUS 12000ft
OBSAR (6mi, 242°) 12000ft
HAZEM (15mi, 328°) 7500ft
RK406 (7mi, 242°) 6000ft
 RNAVRK406 6000ft
RK408 (6mi, 148°) 4400ft
OERK (7mi, 139°) 2102ft
RA003 (6mi, 159°) 3300ft
MATPR (25mi, 223°) 7100ft
DE102 (12mi, 319°) 8300ft
BOSEB (13mi, 59°) 9000ft
BOSEB (turn) 9000ft
RW33LBOS1C (62°)BOSEB 11000ft
ALMUM (6mi, 62°) 11000ft
RADOX (13mi, 148°) 7500ft
RK809 (6mi, 62°) 5500ft
RW33LITK1C (62°)ITKUS 12000ft
OBSAR (6mi, 242°) 12000ft
LOXAR (13mi, 148°) 7500ft
RK809 (7mi, 242°) 5500ft
 RNAVRK809 5500ft
RK702 (6mi, 328°) 4100ft
OERK (9mi, 336°) 2086ft
RK446 (17mi, 324°) 5400ft
RK802 (8mi, 242°) 6600ft
BOSEB (20mi, 160°) 7500ft
BOSEB (turn) 7500ft
RW33RBOS1D (62°)BOSEB 11000ft
ALMUM (6mi, 62°) 11000ft
RADOX (13mi, 148°) 7500ft
RA008 (7mi, 62°) 5500ft
RW33RITK1D (62°)ITKUS 12000ft
OBSAR (6mi, 242°) 12000ft
LOXAR (13mi, 148°) 7500ft
RA008 (6mi, 242°) 5500ft
 RNAVRA008 5500ft
RK808 (6mi, 328°) 4000ft
OERK (9mi, 326°) 2065ft
MAT3R (5mi, 332°) 3400ft
MA3HP (14mi, 89°) 5400ft
LOPAK (13mi, 62°) 8000ft
LOPAK (turn) 8000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ESRA1AITKUSVHFright65 (245)°> 12000ft1.0min timedICAO rules
ETBA1AITKUSVHFright65 (245)°> 12000ft1.0min timedICAO rules
KAVU1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
KOBO1AITKUSVHFright65 (245)°> 12000ft1.0min timedICAO rules
METN1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
MUNT1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
MURL1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
RESA1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
TAKT1AITKUSVHFright65 (245)°> 12000ft1.0min timedICAO rules
TEVO1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
VELO1ABOSEBVHFleft257 (77)°> 11000ft1.0min timed210
*) magnetic outbound (inbound) holding course
