Airports for X-Plane

Ta’if - Ta'if

Airport details

CountrySaudi Arabia
StateMakkah Region
RegionOE
AirspaceJeddah Ctr
MunicipalityAl Taif
Elevation4848ft (1478m)
TimezoneGMT +3
Coordinates21.48058, 40.53996
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOETF
IATA codeTIF
FAA coden/a

Communication

TA'IF Ground Control121.900
TA'IF SAUDIA RDO131.500
TA'IF Tower118.700
TA'IF Approach119.700

Approach frequencies

ILS-cat-IRW35110.718.00mi
ILS-cat-IRW25110.918.00mi
3° GSRW35110.718.00mi
3° GSRW25110.918.00mi

Runway info

Runway 07 / 25
 length3686m (12093ft)
 bearing76° / 256°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 122m (400ft)
Runway 17 / 35
 length3285m (10778ft)
 bearing171° / 351°
 width45m (148ft)
 surfaceasphalt
 blast zone116m (381ft) / 98m (322ft)

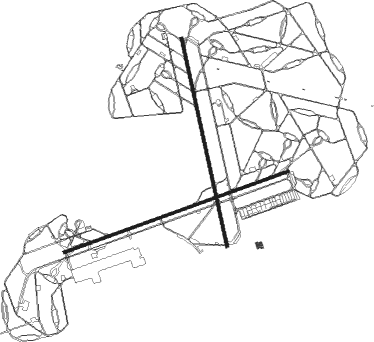

Airport layout


Taxiway locations

 07  A  A1  A2  A3  A4  A5  A6
 APRON  M  M1  M2  M3
Parking locations

 Adjacent  B9  General  Hangar  Hanger  Holding  MILITARY  TEST

Nearby beacons

codeidentifierdistbearingfrequency
TIFTAIF VORTAC0.551°112.70

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW07
 TATR1G, TATR1C71mi33°
 BOXI1C, BOXI1G52mi137°
 GEVE1C43mi234°
 GEVE1G54mi234°
 MISA1G57mi309°
 MISA1C38mi310°
RW17
 TATR1H, TATR1D71mi33°
 BOXI1H, BOXI1D52mi137°
 GEVE1D43mi234°
 GEVE1H54mi234°
 MISA1H57mi309°
 MISA1D38mi310°
RW25
 TATR1E, TATR1A71mi33°
 BOXI1E, BOXI1A52mi137°
 GEVE1A43mi234°
 GEVE1E54mi234°
 MISA1E57mi309°
 MISA1A38mi310°
RW35
 TATR1B, TATR1F71mi33°
 BOXI1B, BOXI1F52mi137°
 GEVE1B43mi234°
 GEVE1F54mi234°
 MISA1F57mi309°
 MISA1B38mi310°
