Airports for X-Plane

Yanbu - Pr. Abdul Mohsin Bin Abdulaziz

Airport details

CountrySaudi Arabia
StateMedina Province
RegionOE
AirspaceJeddah Ctr
MunicipalityYanbu`
Elevation42ft (13m)
TimezoneGMT +3
Coordinates24.14418, 38.06355
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOEYN
IATA codeYNB
FAA coden/a

Communication

No airport communication available for OEYN

Approach frequencies

ILS-cat-IRW28111.518.00mi
3° GSRW28111.518.00mi

Runway info

Runway 10 / 28
 length3208m (10525ft)
 bearing102° / 282°
 width50m (164ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

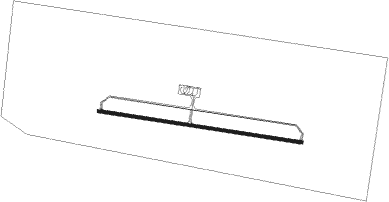

Airport layout


Parking locations

 01  02  03  04

Nearby beacons

codeidentifierdistbearingfrequency
YENYENBO VOR/DME1.4282°112.90

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10LADSI (338°)LADSI 5000ft
RANBU (36mi, 307°) 5000ft
YN500 (8mi, 14°) 2500ft
RW10PASUS (160°)PASUS 9000ft
NM10 (8mi, 196°) 6000ft
NADKO (10mi, 196°) 5000ft
YN500 (8mi, 194°) 2500ft
RW10VEDAX (255°)VEDAX 5000ft
NADKO (34mi, 279°) 5000ft
YN500 (8mi, 194°) 2500ft
 RNAVYN500 2500ft
LAGRI (9mi, 102°) 2000ft
OEYN (7mi, 102°) 81ft
(2647mi, 238°) 3000ft
RANBU (2629mi, 57°) 5000ft
RANBU (turn) 5000ft
RW28LADSI (338°)LADSI 5000ft
ORSAS (17mi, 5°) 5000ft
YN400 (8mi, 14°) 3000ft
RW28PASUS (160°)PASUS 9000ft
NM147 (20mi, 131°) 7000ft
GEROG (15mi, 131°) 5000ft
YN400 (8mi, 194°) 3000ft
RW28VEDAX (255°)VEDAX 5000ft
GEROG (4mi, 256°) 5000ft
YN400 (8mi, 194°) 3000ft
 RNAVYN400 3000ft
SEPMA (7mi, 282°) 2000ft
OEYN (7mi, 282°) 99ft
(2647mi, 238°) 3000ft
ORSAS (2652mi, 58°) 5000ft
ORSAS (turn) 5000ft
