Airports for X-Plane

Sanandaj

Airport details

CountryIran
StateKurdistan Province
RegionOI
AirspaceTehran Ctr
Municipalityدهستان حومه
Elevation4521ft (1378m)
TimezoneGMT +3.5
Coordinates35.25083, 47.01111
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOICS
IATA codeSDG
FAA coden/a

Communication

Sanandaj Approach123.900
Sanandaj Awos128.450
Sanandaj Ground122.900
Sanandaj Tower121.900
Sanandaj Departure124.900

Approach frequencies

ILS-cat-IRW19109.318.00mi
4° GSRW19109.318.00mi
Nearby Points of Interest:
Qeshlaq Bridge
-
Sanandaj Bazaar
-
Khan Hammam
-
Cultural Landscape of Hawraman/Uramanat

Runway info

Runway 01 / 19
 length3021m (9911ft)
 bearing22° / 202°
 width45m (148ft)
 surfaceasphalt
 displ threshold498m (1634ft) / 0m (0ft)
 blast zone97m (318ft) / 115m (377ft)

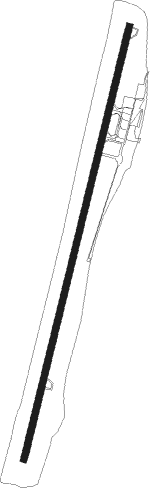

Airport layout


Parking locations

 GATE

Nearby beacons

codeidentifierdistbearingfrequency
SNJSANANDAJ NDB0.7352°366
KMSKERMANSHAH NDB54.1172°382
KMSKERMANSHAH VOR/DME55.2170°114.60

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW19
 LOVI1A, LOVI1B24mi105°
 ASLA1A24mi272°

STAR starting pointsdistanceinbound heading
RW19
 ASLA1N24.092°
 LOVI1N, LOVI1P24.0285°
 BOPE1N25.2350°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASLA1ND013QVHFleft13 (193)°> 10500ft1.0min timed230
BOPE1ND013QVHFleft13 (193)°> 10500ft1.0min timed230
LOVI1ND013QVHFleft13 (193)°> 10500ft1.0min timed230
LOVI1PD013QVHFleft13 (193)°> 10500ft1.0min timed230
*) magnetic outbound (inbound) holding course
