Karaj - Payam
Airport details
| Country | Iran |
| State | Alborz Province |
| Region | OI |
| Airspace | Tehran Ctr |
| Municipality | Arababad-e Afshar RD |
| Elevation | 4168ft (1270m) |
| Timezone | GMT +3.5 |
| Coordinates | 35.77972, 50.82278 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | OIIP |
| IATA code | PYK |
| FAA code | n/a |
Communication
| Payam INFO | 121.650 |
| Payam INFO | 118.400 |
Nearby Points of Interest:
Mehrshahr Apple Garden
-Imamzadeh Husayn (Kordan)
-Pol-e Dokhtar (Karaj)
-Imamzadeh Zeid and Rahman
-Tepe Balkin
-Tepe Juqin
-Baba Mahmud Tower
-Imamzadeh Hazratein
-Bazarak Bridge
-Robat Karim Watermill
-Torsh Anbeh Icehouse
-Tepe Mafinabad
-Tepe Nezamabad (Eslamshahr County)
-Sain Minas church

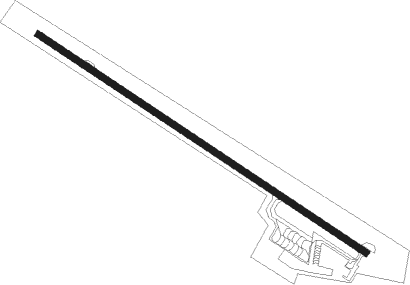

Runway info
| Runway 12 / 30 | ||
| length | 3662m (12014ft) | |
| bearing | 122° / 302° | |
| width | 60m (197ft) | |
| surface | asphalt | |
| blast zone | 155m (509ft) / 105m (344ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| PIM | PAYAM NDB | 1.6 | 124° | 306 |
| PIM | PAYAM VOR/DME | 1.7 | 122° | 117.50 |
| RUS | RUDESHUR VOR/DME | 20.4 | 166° | 116.95 |
| THR | TEHRAN TACAN | 22.8 | 100° | 113.30 |
| TRN | TEHRAN VOR/DME | 23 | 100° | 115.30 |
| IKA | IMAM KHOMAINI VOR/DME | 28.2 | 136° | 114.30 |
| IKA | IMAM KHOMAINI NDB | 28.4 | 136° | 201 |
| KAZ | KAHRIZAK NDB | 30.8 | 116° | 358 |
| VR | VARAMIN NDB | 47.6 | 118° | 373 |
| SAV | SAVEH NDB | 50.7 | 211° | 408 |
| NSR | NOSHAHR NDB | 61.4 | 36° | 260 |
Departure and arrival routes
| Transition altitude | 9000ft |
| Transition level | 11000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW12 | |||
| NAGM1F | 30mi | 64° | |
| DHN1F | 98mi | 105° | |
| RUS1H, RUS2F | 20mi | 166° | |
| PARO3F | 48mi | 296° | |
| PAXI2F | 38mi | 316° | |
| RW30 | |||
| NAGM1E | 30mi | 64° | |
| DHN1E | 98mi | 105° | |
| RUS1G, RUS2E | 20mi | 166° | |
| PARO3E | 48mi | 296° | |
| PAXI2E | 38mi | 316° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| SAV1P, SAV1Q | 50.7 | 31° | |
| PAVE1Q | 50.0 | 70° | |
| MIVA1Q | 47.0 | 103° | |
| PAXI1Q | 38.3 | 136° | |
| RW12 | |||
| SAV1Y | 50.7 | 31° | |
| PAVE1P | 50.0 | 70° | |
| MIVA1P | 47.0 | 103° | |
| PAXI1P | 38.3 | 136° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| MIVA1P | D303O | VHF | right | 303 (123)° | > 8500ft | 1.0min timed | 230 |
| PAVE1P | D303O | VHF | right | 303 (123)° | > 8500ft | 1.0min timed | 230 |
| PAXI1P | D303O | VHF | right | 303 (123)° | > 8500ft | 1.0min timed | 230 |
| SAV1P | SAV | FIX | left | 149 (329)° | > 21000ft | 1.5min timed | ICAO rules |
| SAV1Q | SAV | FIX | left | 149 (329)° | > 21000ft | 1.5min timed | ICAO rules |
| SAV1Y | D303O | VHF | right | 303 (123)° | > 8500ft | 1.0min timed | 230 |
| SAV1Y | SAV | FIX | left | 149 (329)° | > 21000ft | 1.5min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
