Airports for X-Plane

Tabriz - Tabriz Intl

Airport details

CountryIran
StateEast Azerbaijan Province
RegionOI
AirspaceTehran Ctr
MunicipalityTabriz
Elevation4458ft (1359m)
TimezoneGMT +3.5
Coordinates38.13389, 46.23500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOITT
IATA codeTBZ
FAA coden/a

Communication

Tabriz Intl INFO127.000
Tabriz Intl Tower121.700
Tabriz Intl Tower124.100
Tabriz Intl Tower121.900
Tabriz Intl Approach122.500

Approach frequencies

ILS-cat-IRW30L110.318.00mi
ILS-cat-IRW30R109.918.00mi
3.2° GSRW30L110.318.00mi
3.2° GSRW30R109.918.00mi
Nearby Points of Interest:
Jameh Mosque of Amol
-
Saat Tower
-
Shahryar Literature Museum
-
Stone Bridge
-
Saint John Church
-
Saint Hripsime Church of Mujumbar
-
Qermez Gol Hammam

Runway info

Runway 12L / 30R
 length3654m (11988ft)
 bearing123° / 303°
 width45m (148ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)
Runway 12R / 30L
 length3759m (12333ft)
 bearing122° / 302°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 270m (886ft)
 blast zone255m (837ft) / 254m (833ft)

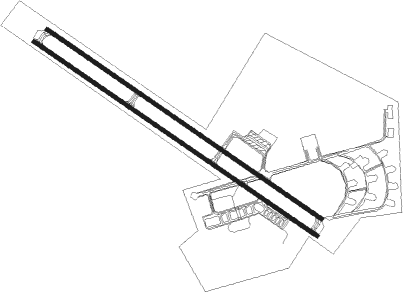

Airport layout


Parking locations

 101  102  103  104  105  106  107  108
 109  110  211  213  215  218  220  222
 224  226  228  301  303  305  307  309
 311  315  317  319  321

Nearby beacons

codeidentifierdistbearingfrequency
TBZTABRIZ VOR/DME1.3303°117.70
SHDSAHAND (MARAGHEH) NDB47.5187°363

Departure and arrival routes

Transition altitude12000ft
SID end pointsdistanceoutbound heading
RW12 (ALL)
 RUDA1B44mi122°
 UMH1B61mi249°
RW30 (ALL)
 PAPO1A37mi11°
 DASD1A45mi49°
 RAKE1A, RAKE1B43mi102°
 RUDA1A44mi122°
 UMH1A61mi249°
 BORE1A46mi291°
 RABD1A46mi324°

STAR starting pointsdistanceinbound heading
RW12L
 SETN1N, SETN1P18.958°
 BORE1N, BORE1P46.0111°
 RABD1P, RABD1N46.2144°
 PAPO1N, PAPO1P37.0191°
 DASD1P, DASD1N44.9229°
 RAKE1P, RAKE2N43.4282°
 RUDA1P, RUDA1N43.9302°
RW30R
 SETN1P, SETN1N18.958°
 BORE1N, BORE1P46.0111°
 RABD1P, RABD1N46.2144°
 PAPO1P, PAPO1N37.0191°
 DASD1P, DASD1N44.9229°
 RAKE1P, RAKE2N43.4282°
 RUDA1N, RUDA1P43.9302°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BORE1PD082RVHFright82 (262)°> 12000ft1.0min timed210
DASD1PD082RVHFright82 (262)°> 12000ft1.0min timed210
PAPO1PD082RVHFright82 (262)°> 12000ft1.0min timed210
RABD1PD082RVHFright82 (262)°> 12000ft1.0min timed210
RAKE1PD082RVHFright82 (262)°> 12000ft1.0min timed210
RUDA1PD082RVHFright82 (262)°> 12000ft1.0min timed210
SETN1PD082RVHFright82 (262)°> 12000ft1.0min timed210
*) magnetic outbound (inbound) holding course
