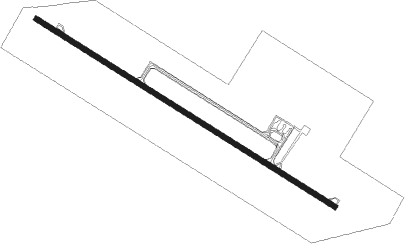

Zanjan
Airport details
| Country | Iran |
| State | Zanjan Province |
| Region | OI |
| Airspace | Tehran Ctr |
| Municipality | Soharin |
| Elevation | 5377ft (1639m) |
| Timezone | GMT +3.5 |
| Coordinates | 36.77472, 48.35917 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | OITZ |
| IATA code | JWN |
| FAA code | n/a |
Communication
| Zanjan INFO | 122.950 |
| Zanjan INFO | 121.750 |
Nearby Points of Interest:
Mir Bahauddin Bridge
-Soltaniyeh
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| ZAJ | ZANJAN NDB | 0.2 | 83° | 321 |
| ZAJ | ZANJAN VOR/DME | 0.4 | 310° | 114.40 |
Departure and arrival routes
| Transition altitude | 11500ft |
| Transition level | 13500ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW12 | |||
| SUTB1B | 25mi | 117° | |
| TULG1B | 25mi | 130° | |
| RW30 | |||
| LOXU1A | 25mi | 109° | |
| SUTB1A | 25mi | 117° | |
| TULG1A | 25mi | 130° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| LOXU1P | 24.6 | 289° | |
| SUTB1P | 24.6 | 297° | |
| TULG1P | 24.6 | 310° | |
| RW30 | |||
| LOXU1N | 24.6 | 289° | |
| SUTB1N | 24.6 | 297° | |
| TULG1N | 24.6 | 310° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| LOXU1N | D125Q | VHF | left | 125 (305)° | > 10700ft | 1.0min timed | ICAO rules |
| SUTB1N | D125Q | VHF | left | 125 (305)° | > 10700ft | 1.0min timed | ICAO rules |
| TULG1N | D125Q | VHF | left | 125 (305)° | > 10700ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
