Airports for X-Plane

Zahedan - Zahedan Intl

Airport details

CountryIran
StateSistan and Baluchestan Province
RegionOI
AirspaceTehran Ctr
MunicipalityZahedan
Elevation4562ft (1390m)
TimezoneGMT +3.5
Coordinates29.47333, 60.90333
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOIZH
IATA codeZAH
FAA coden/a

Communication

Zahedan Intl ATIS128.450
Zahedan Intl Tower121.900
Zahedan Intl Tower119.400
Zahedan Intl Tower118.100

Approach frequencies

ILS-cat-IRW35L108.718.00mi
3.2° GSRW35L108.718.00mi

Runway info

Runway 17R / 35L
 length4279m (14039ft)
 bearing172° / 352°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 274m (899ft)
 blast zone255m (837ft) / 255m (837ft)
Runway 17L / 35R
 length4266m (13996ft)
 bearing172° / 352°
 width30m (98ft)
 surfaceasphalt
 displ threshold0m (0ft) / 224m (735ft)
 blast zone255m (837ft) / 255m (837ft)

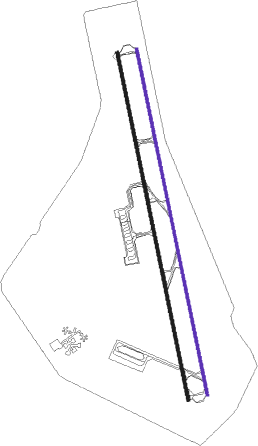

Airport layout - runway 17L / 35R


Parking locations

 101  102  103  104  105  106  107  202
 204  206  208  210  212  214  216  218
 220  222  224  226  228  H1  H10  H11
 H12  H2  h3  h4  H5  H6  H7  H8
 H9

Nearby beacons

codeidentifierdistbearingfrequency
ZDZAHEDAN NDB0.4252°224
ZAHZAHEDAN TACAN0.5173°112.90
ZDNZAHEDAN VOR/DME0.8353°116

Departure and arrival routes

Transition altitude11000ft
SID end pointsdistanceoutbound heading
RW17R
 PIRA1H, PIRA1E13mi68°
 DERB2E, DERB1H20mi97°
 DANB1H, DANB2E29mi133°
 DANX1H, DANX2E29mi185°
 DANO2E, DANO1H30mi246°
 DANU1E, DANU1H30mi283°
 DAPA1H, DAPA2E31mi303°
 LUDA1H, LUDA2E31mi335°
RW35L
 PIRA1J13mi68°
 DERB2D, DERB1J20mi97°
 DANB1J, DANB2D29mi133°
 DANX1J, DANX2D29mi185°
 DANO1J, DANO2D30mi246°
 DANU1J, DANU1D30mi283°
 DAPA1J, DAPA2D31mi303°
 LUDA1J, LUDA2D31mi335°

STAR starting pointsdistanceinbound heading
RW17R
 DANX1Z29.25°
 DANO1Z29.766°
 DANU2Z30.4103°
 DAPA1Z30.5123°
 LUDA1Z30.8155°
 PIRA1Z13.4248°
 DERB1Z20.0277°
 DANB1Z29.3313°
RW35L
 DANX2P, DANX2N, DANX1U, DANX1Q29.25°
 DANO2P, DANO1T, DANO1Q, DANO1N29.766°
 DANU2N, DANU2P, DANU1T, DANU1Q30.4103°
 DAPA2P, DAPA1T, DAPA1R, DAPA1N, DAPA2Q30.5123°
 LUDA2P, LUDA1T, LUDA1Q, LUDA2N30.8155°
 PIRA1S, PIRA2P, PIRA1Q, PIRA1N13.4248°
 DERB1S, DERB1N, DERB1Q, DERB2P20.0277°
 DANB2P, DANB1S, DANB1Q, DANB2N29.3313°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17RZH409 (154°)ZH409 9500ft
ZH410 (6mi, 142°) 7100ft
 RNAVZH410 7100ft
ZH411 (5mi, 142°) 6400ft
OIZH (7mi, 173°) 4534ft
ZH404 (turn) 5500ft
ZH408 (5mi, 265°) 6000ft
ZH409 (18mi, 352°) 9500ft
ZH409 (turn)
RW35LZH403 (13°)ZH403 9500ft
ZH402 (5mi, 84°) 8100ft
RW35LZH405 (352°)ZH405 9500ft
ZH402 (5mi, 352°) 8100ft
RW35LZH407 (331°)ZH407 9500ft
ZH402 (5mi, 264°) 8100ft
 RNAVZH402 8100ft
ZH401 (5mi, 352°) 7600ft
OIZH (10mi, 351°) 4569ft
ZH411 (7mi, 353°) 6000ft
ZH414 (5mi, 84°) 6000ft
ZH407 (22mi, 172°) 9500ft
ZH407 (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DANB1QZDFIXright341 (161)°> 10500ft1.0min timedICAO rules
DANB1SZH407VHFleft80 (260)°> 9500ft1.0min timed210
DANB1ZZH409VHFright323 (143)°> 9500ft1.0min timed210
DANB2PD170PVHFleft170 (350)°> 9500ft1.0min timed230
DANO1QZDFIXright341 (161)°> 10500ft1.0min timedICAO rules
DANO1TZH403VHFright260 (80)°> 9500ft1.0min timed210
DANO1ZZH409VHFright323 (143)°> 9500ft1.0min timed210
DANO2PD170PVHFleft170 (350)°> 9500ft1.0min timed230
DANU1QZDFIXright341 (161)°> 10500ft1.0min timedICAO rules
DANU1TZH403VHFright260 (80)°> 9500ft1.0min timed210
DANU2PD170PVHFleft170 (350)°> 9500ft1.0min timed230
DANU2ZZH409VHFright323 (143)°> 9500ft1.0min timed210
DANX1QZDFIXright341 (161)°> 10500ft1.0min timedICAO rules
DANX1UZH405VHFright170 (350)°> 9500ft1.0min timed210
DANX1ZZH409VHFright323 (143)°> 9500ft1.0min timed210
DANX2PD170PVHFleft170 (350)°> 9500ft1.0min timed230
DAPA1RZDFIXright341 (161)°> 10500ft1.0min timedICAO rules
DAPA1TZH403VHFright260 (80)°> 9500ft1.0min timed210
DAPA1ZZH409VHFright323 (143)°> 9500ft1.0min timed210
DAPA2PD170PVHFleft170 (350)°> 9500ft1.0min timed230
DAPA2QD170PVHFleft170 (350)°> 9500ft1.0min timed230
DERB1QZDFIXright341 (161)°> 10500ft1.0min timedICAO rules
DERB1SZH407VHFleft80 (260)°> 9500ft1.0min timed210
DERB1ZZH409VHFright323 (143)°> 9500ft1.0min timed210
DERB2PD170PVHFleft170 (350)°> 9500ft1.0min timed230
LUDA1QZDFIXright341 (161)°> 10500ft1.0min timedICAO rules
LUDA1TZH403VHFright260 (80)°> 9500ft1.0min timed210
LUDA1ZZH409VHFright323 (143)°> 9500ft1.0min timed210
LUDA2PD170PVHFleft170 (350)°> 9500ft1.0min timed230
PIRA1QZDFIXright341 (161)°> 10500ft1.0min timedICAO rules
PIRA1SZH407VHFleft80 (260)°> 9500ft1.0min timed210
PIRA1ZZH409VHFright323 (143)°> 9500ft1.0min timed210
PIRA2PD170PVHFleft170 (350)°> 9500ft1.0min timed230
*) magnetic outbound (inbound) holding course
