Faisalabad - Faisalabad Intl

Airport details

CountryPakistan
StatePunjab
RegionOP
AirspaceLahore Ctr
MunicipalityFaisalabad
Elevation590ft (180m)
TimezoneGMT +5
Coordinates31.36527, 72.99554
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOPFA
IATA codeLYP
FAA coden/a

Communication

FAISALABAD INTL Tower121.800
FAISALABAD INTL Tower127.300

Approach frequencies

ILS-cat-IRW03L109.718.00mi
3° GSRW03L109.718.00mi

Runway info

Runway 03 / 21
 length2819m (9249ft)
 bearing41° / 221°
 width46m (151ft)
 surfaceconcrete
 blast zone152m (499ft) / 152m (499ft)

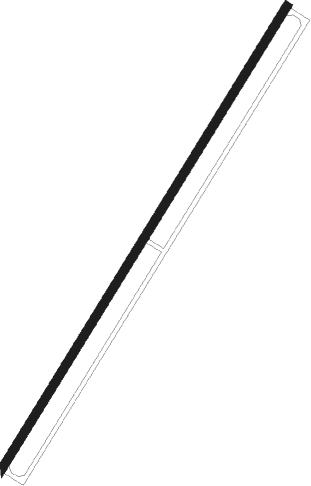

Airport layout


Nearby beacons

codeidentifierdistbearingfrequency
FAFAISALABAD NDB0.2353°212

Departure and arrival routes

Transition altitude4000ft
Transition level6000ft
SID end pointsdistanceoutbound heading
RW03L
 ENRI1C24mi84°
 NINU1C31mi199°
RW21R
 ENRI1D24mi84°
 NINU1D31mi199°

STAR starting pointsdistanceinbound heading
RW03L
 NINU1A30.519°
 ENRI1A24.4264°
RW21R
 NINU1B30.519°
 ENRI1B24.4264°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03LENRIR (264°)ENRIR
FA403 (30mi, 243°) 4000ft
FA422 (6mi, 303°) 2500ft
RW03LMEPAP (20°)MEPAP 4000ft
FA422 (6mi, 340°) 2500ft
 RNAVFA422 2500ft
FA421 (4mi, 40°) 2500ft
OPFA (7mi, 41°) 638ft
(4537mi, 247°) 1500ft
FA413 (4543mi, 67°)
MEPAP (15mi, 232°) 3000ft
RW03RENRIR (264°)ENRIR
FA403 (30mi, 243°) 4000ft
FA402 (6mi, 302°) 2500ft
RW03RMEPAP (20°)MEPAP 4000ft
FA402 (6mi, 340°) 2500ft
 RNAVFA402 2500ft
FA401 (4mi, 40°) 2500ft
OPFA (7mi, 40°) 637ft
(4537mi, 247°) 1500ft
FA413 (4543mi, 67°)
MEPAP (15mi, 232°) 3000ft
RW21LSAMIM (248°)SAMIM 4000ft
FA412 (6mi, 293°) 2500ft
 RNAVFA412 2500ft
FA411 (4mi, 221°) 2500ft
OPFA (7mi, 221°) 641ft
(4537mi, 247°) 1500ft
SAMIM (4549mi, 67°) 3000ft
RW21RSAMIM (248°)SAMIM 4000ft
FA432 (6mi, 293°) 2500ft
 RNAVFA432 2500ft
FA431 (4mi, 221°) 2500ft
OPFA (7mi, 220°) 640ft
(4537mi, 247°) 1500ft
SAMIM (4549mi, 67°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ENRI1AMEPAPVHFright160 (340)°> 3000ft1.0min timed230
ENRI1BSAMIMVHFleft114 (294)°> 3000ft1.0min timed230
NINU1AMEPAPVHFright160 (340)°> 3000ft1.0min timed230
NINU1BSAMIMVHFleft114 (294)°> 3000ft1.0min timed230
*) magnetic outbound (inbound) holding course
