Airports for X-Plane

Gwadar

Airport details

CountryPakistan
StateBalochistan
RegionOP
AirspaceKarachi Ctr
MunicipalityGwadar
Elevation36ft (11m)
TimezoneGMT +5
Coordinates25.23331, 62.32949
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOPGD
IATA codeGWD
FAA coden/a

Communication

GWADAR Tower122.500
Nearby Points of Interest:
Jiwani Coastal Wetland

Runway info

Runway 06 / 24
 length1511m (4957ft)
 bearing65° / 245°
 width23m (75ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)

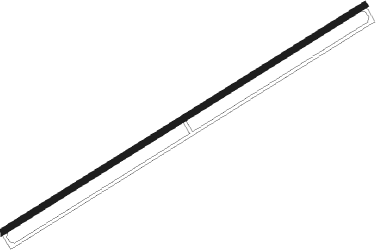

Airport layout


Nearby beacons

codeidentifierdistbearingfrequency
GDGWADAR NDB0.3169°303
TUTURBAT NDB59.143°237

Departure and arrival routes

Transition altitude5500ft
Transition level7500ft
SID end pointsdistanceoutbound heading
RW06
 BIVI1B31mi252°
RW24
 BIVI1A31mi252°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06DUMAL (65°)DUMAL 3000ft
GD402 (5mi, 65°) 1700ft
RW06ENGAM (154°)ENGAM 5000ft
GD404 (10mi, 243°) 3000ft
GD402 (5mi, 150°) 1700ft
RW06KAKEX (324°)KAKEX 5000ft
GD403 (10mi, 246°) 3000ft
GD402 (5mi, 330°) 1700ft
 RNAVGD402 1700ft
GD401 (3mi, 65°) 1700ft
OPGD (6mi, 65°) 72ft
GD411 (5mi, 65°)
MORKI (15mi, 95°) 3000ft
RW24KAKEX (324°)KAKEX 5000ft
GD413 (9mi, 63°) 3000ft
GD412 (5mi, 329°) 1700ft
RW24LUTKU (245°)LUTKU 5000ft
GD414 (6mi, 245°) 3000ft
GD412 (6mi, 245°) 1700ft
RW24MORKI (267°)MORKI 5000ft
GD412 (12mi, 283°) 1700ft
 RNAVGD412 1700ft
GD411 (4mi, 245°) 1700ft
OPGD (5mi, 245°) 82ft
DUMAL (14mi, 245°) 3000ft
