Airports for X-Plane

Jacobabad - Shahbaz Ab

Airport details

CountryPakistan
StateSindh
RegionOP
AirspaceKarachi Ctr
MunicipalityJacobabad
Elevation185ft (56m)
TimezoneGMT +5
Coordinates28.28333, 68.45000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOPJA
IATA codeJAG
FAA coden/a

Communication

SHAHBAZ AB Ground Control126.525
SHAHBAZ AB JACOBABAD Tower124.625

Runway info

Runway 15L / 33R
 length3081m (10108ft)
 bearing144° / 324°
 width24m (80ft)
 surfaceasphalt
 displ threshold116m (381ft) / 0m (0ft)
Runway 15 / 33
 length3040m (9974ft)
 bearing144° / 324°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

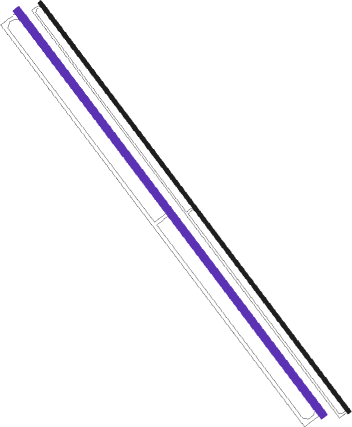

Airport layout - runway 15 / 33


Nearby beacons

codeidentifierdistbearingfrequency
SKSUKKUR NDB38.3148°375
MJMOENJODARO NDB59.5198°304
