Airports for X-Plane

Multan - Multan Intl

Airport details

CountryPakistan
StatePunjab
RegionOP
AirspaceLahore Ctr
MunicipalityMultan
Elevation401ft (122m)
TimezoneGMT +5
Coordinates30.20322, 71.41911
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOPMT
IATA codeMUX
FAA coden/a

Communication

MULTAN INTL GROUND121.800
MULTAN INTL Tower119.100

Approach frequencies

ILS-cat-IRW36110.318.00mi
3° GSRW36110.318.00mi

Runway info

Runway 18 / 36
 length3207m (10522ft)
 bearing184° / 4°
 width46m (151ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)

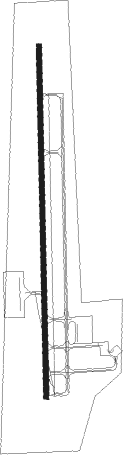

Airport layout


Taxiway locations

 36  A  G
Parking locations

 MILITARY  TERMINAL

Nearby beacons

codeidentifierdistbearingfrequency
MTMULTAN VOR0.5197°116.70
MTMULTAN NDB0.6215°387
DGDERA GHAZI KHAN NDB50.3255°322
BWBAHAWALPUR NDB53.4161°332

Departure and arrival routes

Transition altitude3000ft
Transition level5000ft
SID end pointsdistanceoutbound heading
RW18
 MOLT1C, MOLT1B61mi90°
 MANR1B48mi212°
 RAJA1B46mi227°
 MELU1B22mi270°
RW36
 MOLT1A61mi90°
 MANR1A48mi212°
 RAJA1A46mi227°
 MELU1A22mi270°

STAR starting pointsdistanceinbound heading
RW18
 OLSU1A20.233°
 KASB1A20.248°
 MELU1A21.790°
 DIBA1A19.8270°
RW36
 OLSU1B20.233°
 KASB1B20.248°
 MELU1B21.790°
 DIBA1B19.8270°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18RUTEV (236°)RUTEV 4000ft
MT373 (5mi, 333°) 3000ft
MT372 (5mi, 253°) 2000ft
 RNAVMT372 2000ft
MT371 (4mi, 201°) 2000ft
OPMT (6mi, 184°) 451ft
(4445mi, 247°) 1500ft
MT375 (4436mi, 67°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DIBA1ARUTEVVHFleft155 (335)°> 3000ft1.0min timed220
DIBA1BKEVEMVHFright182 (2)°> 3000ft1.0min timed220
KASB1ARUTEVVHFleft155 (335)°> 3000ft1.0min timed220
KASB1BKEVEMVHFright182 (2)°> 3000ft1.0min timed220
MELU1ARUTEVVHFleft155 (335)°> 3000ft1.0min timed220
MELU1BKEVEMVHFright182 (2)°> 3000ft1.0min timed220
OLSU1ARUTEVVHFleft155 (335)°> 3000ft1.0min timed220
OLSU1BKEVEMVHFright182 (2)°> 3000ft1.0min timed220
*) magnetic outbound (inbound) holding course
