Airports for X-Plane

Arbil - Erbil Intl

Airport details

CountryIraq
StateErbil Governorate
RegionOR
AirspaceBaghdad Ctr
MunicipalityAnkawa Subdistrict
Elevation1339ft (408m)
TimezoneGMT +3
Coordinates36.23806, 43.94667
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeORER
IATA codeEBL
FAA coden/a

Communication

Erbil intl Tower128.800
Erbil intl Approach127.700

Approach frequencies

ILS-cat-IRW18109.118.00mi
ILS-cat-IRW36109.718.00mi
3° GSRW18109.118.00mi
3° GSRW36109.718.00mi

Runway info

Runway 18 / 36
 length4813m (15791ft)
 bearing180° / 0°
 width75m (246ft)
 surfaceconcrete
 blast zone241m (791ft) / 225m (738ft)
Runway 15 / 33
 length2807m (9209ft)
 bearing146° / 326°
 width30m (98ft)
 surfaceasphalt
 blast zone61m (200ft) / 59m (194ft)

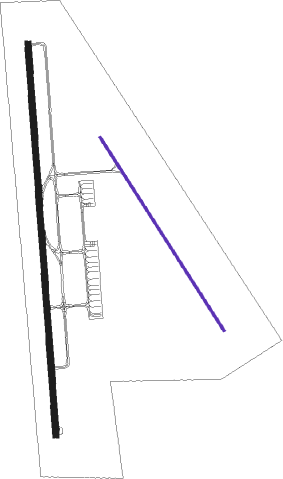

Airport layout - runway 15 / 33


Taxiway locations

 A  A1  R
Parking locations

 Cargo  Main  Parking  Stand

Nearby beacons

codeidentifierdistbearingfrequency
RERERBIL VOR/DME176°116.30
ORBORBR TACAN2654°111

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18ARAZO (228°)ARAZO 8500ft
AFRAN (5mi, 270°) 6100ft
ZANST (5mi, 270°) 3800ft
RW18NEZAR (180°)NEZAR 5100ft
ZANST (6mi, 180°) 3800ft
RW18SOZAN (147°)SOZAN 5100ft
ZANST (6mi, 90°) 3800ft
 RNAVZANST 3800ft
REZAN (5mi, 180°) 2900ft
ORER (6mi, 180°) 1359ft
RIBAZ (4mi, 181°) 2200ft
DAXOG (26mi, 205°) 6000ft
DAXOG (turn)
RW36DIWAN (0°)DIWAN 5100ft
LIZAN (6mi, 0°) 3800ft
RW36SAFEN (327°)SAFEN 5100ft
LIZAN (6mi, 270°) 3800ft
RW36ZOZIK (51°)ZOZIK 6100ft
LIZAN (11mi, 90°) 3800ft
 RNAVLIZAN 3800ft
VIYAN (5mi, 0°) 2900ft
ORER (6mi, 0°) 1399ft
LAWAN (4mi, 1°) 2400ft
ROXOP (33mi, 319°) 9000ft
ROXOP (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
