Airports for X-Plane

Agana - Guam Agana

Airport details

CountryUnited States of America
StateGuam
RegionPG
MunicipalityBarrigada Municipality
Elevation304ft (93m)
TimezoneGMT +10
Coordinates13.48396, 144.79713
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codePGUM
IATA codeGUM
FAA codeGUM

Communication

Guam Agana ATIS119.000
Guam Agana Ground Control121.900
Guam Agana AGANA Tower118.100

Approach frequencies

ILS-cat-IRW06R110.918.00mi
ILS-cat-IRW06L110.318.00mi
3° GSRW06R110.918.00mi
3° GSRW06L110.318.00mi
Nearby Points of Interest:
Ipao Pillbox I
-
Guam Congress Building
-
Plaza de España
-
South Finegayan Latte Stone Park
-
Asan Invasion Beach
-
Piti Guns
-
Guam Cable Station
-
Aratama Maru
-
Ha. 62-76 Japanese Midget Attack Submarine
-
Agat Invasion Beach
-
Cetti Bay
-
Fort Nuestra Señora de la Soledad
-
Merlyn G. Cooke School

Runway info

Runway 06L / 24R
 length3666m (12028ft)
 bearing65° / 245°
 width46m (150ft)
 surfaceasphalt
 displ threshold305m (1001ft) / 0m (0ft)
 blast zone122m (400ft) / 122m (400ft)
Runway 06R / 24L
 length3053m (10016ft)
 bearing65° / 245°
 width46m (150ft)
 surfaceasphalt
 displ threshold0m (0ft) / 306m (1004ft)
 blast zone122m (400ft) / 122m (400ft)

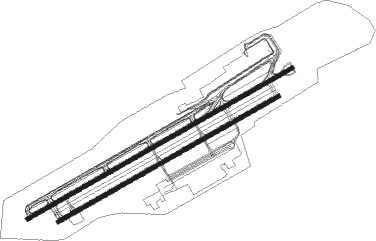

Airport layout


Taxiway locations

 A  B  C  D  E  F  G  J
 K
Parking locations

 1  10  12  13  13A  14  15  15L
 15R  16  17  17A  18  19  2  20
 21  3  4  5  6  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
AJAMOUNT MACAJNA (GUAM) NDB3.9243°385
UNZNIMITZ VORTAC4.1245°115.80
UAMANDERSEN (YIGO) TACAN10.854°111.70
GROROTA NDB48.733°332

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06LYASADE (356°)ASADE
BURLE (29mi, 339°) 3000ft
OBALE (10mi, 335°) 3000ft
RW06LYPULEE (93°)PULEE
OBALE (33mi, 104°) 3000ft
RW06LYUNZ (65°)UNZ
OBALE (9mi, 246°) 3000ft
OBALE (turn) 3000ft
RW06LYWUVEN (148°)WUVEN
RASPE (36mi, 168°) 3000ft
OBALE (5mi, 154°) 3000ft
 RNAVOBALE 3000ft
ADEDE (7mi, 65°) 2000ft
BOLFY (2mi, 65°) 1480ft
PGUM (4mi, 66°) 308ft
(8565mi, 265°) 705ft
WABOX (8574mi, 85°) 3000ft
WABOX (turn)
RW06LZASADE (356°)ASADE 15100ft
BURLE (29mi, 339°)
OBALE (10mi, 335°) 3000ft
RW06LZPULEE (93°)PULEE 13300ft
OBALE (33mi, 104°) 3000ft
RW06LZWUVEN (148°)WUVEN 15900ft
RASPE (36mi, 168°)
OBALE (5mi, 154°) 3000ft
 RNAVOBALE 3000ft
ADEDE (7mi, 65°) 2000ft
PGUM (6mi, 66°) 290ft
WABOX (13mi, 65°) 3000ft
WABOX (turn)
RW06RYASADE (356°)ASADE
BURLE (29mi, 339°) 3000ft
DALPE (10mi, 335°) 3000ft
RW06RYPULEE (93°)PULEE
DALPE (33mi, 104°) 3000ft
RW06RYUNZ (65°)UNZ
DALPE (9mi, 245°) 3000ft
DALPE (turn) 3000ft
RW06RYWUVEN (148°)WUVEN
RASPE (36mi, 168°) 3000ft
DALPE (5mi, 154°) 3000ft
 RNAVDALPE 3000ft
FISON (7mi, 65°) 2000ft
HUKES (2mi, 65°) 1440ft
PGUM (4mi, 65°) 286ft
(8565mi, 265°) 980ft
CIBOL (8574mi, 85°) 3000ft
CIBOL (turn)
RW06RZASADE (356°)ASADE 15100ft
BURLE (29mi, 339°)
DALPE (10mi, 335°) 3000ft
RW06RZPULEE (93°)PULEE 13300ft
DALPE (33mi, 104°) 3000ft
RW06RZWUVEN (148°)WUVEN 16000ft
RASPE (36mi, 168°)
DALPE (5mi, 154°) 3000ft
 RNAVDALPE 3000ft
FISON (7mi, 65°) 2000ft
PGUM (6mi, 65°) 286ft
CIBOL (13mi, 66°) 3000ft
CIBOL (turn)
RW24LYBAGBE (251°)BAGBE
CIBOL (18mi, 255°) 3000ft
RW24LYCULPS (197°)CULPS
CADUK (17mi, 188°) 3000ft
CIBOL (10mi, 154°) 3000ft
RW24LYGUMGE (315°)GUMGE
SIDPE (27mi, 338°) 3000ft
CIBOL (5mi, 335°) 3000ft
RW24LYUNZ (65°)UNZ
CIBOL (17mi, 66°) 3000ft
CIBOL (turn) 3000ft
 RNAVCIBOL 3000ft
JOMAX (7mi, 245°) 2000ft
PGUM (6mi, 246°) 348ft
(8565mi, 265°) 705ft
DALPE (8556mi, 85°) 3000ft
DALPE (turn)
RW24LZBAGBE (251°)BAGBE 8800ft
CIBOL (18mi, 255°) 3000ft
RW24LZCULPS (197°)CULPS 11300ft
CADUK (17mi, 188°)
CIBOL (10mi, 154°) 3000ft
RW24LZGUMGE (315°)GUMGE 12900ft
SIDPE (27mi, 338°)
CIBOL (5mi, 335°) 3000ft
 RNAVCIBOL 3000ft
JOMAX (7mi, 245°) 2000ft
PGUM (6mi, 246°) 348ft
DALPE (13mi, 245°) 3000ft
DALPE (turn)
RW24RYBAGBE (251°)BAGBE
WABOX (18mi, 255°) 3000ft
RW24RYCULPS (197°)CULPS
HAGIX (16mi, 187°) 3000ft
WABOX (10mi, 154°) 3000ft
RW24RYGUMGE (315°)GUMGE
FAPAM (22mi, 339°) 3000ft
WABOX (10mi, 335°) 3000ft
RW24RYUNZ (65°)UNZ
WABOX (17mi, 65°) 3000ft
WABOX (turn) 3000ft
 RNAVWABOX 3000ft
PAVYI (6mi, 245°) 2300ft
PGUM (7mi, 245°) 380ft
(8565mi, 265°) 705ft
OBALE (8556mi, 85°) 3000ft
OBALE (turn)
RW24RZBAGBE (251°)BAGBE
WABOX (18mi, 255°) 3000ft
RW24RZCULPS (197°)CULPS
HAGIX (16mi, 187°) 3000ft
WABOX (10mi, 154°) 3000ft
RW24RZGUMGE (315°)GUMGE
FAPAM (22mi, 339°) 3000ft
WABOX (10mi, 335°) 3000ft
 RNAVWABOX 3000ft
PAVYI (6mi, 245°) 2300ft
PGUM (7mi, 245°) 380ft
OBALE (13mi, 246°) 3000ft
OBALE (turn)
