Airports for X-Plane

Tokyo - Narita Intl

Airport details

CountryJapan
StateChiba Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityShibayama
Elevation133ft (41m)
TimezoneGMT +9
Coordinates35.74124, 140.38840
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJAA
IATA codeNRT
FAA coden/a

Communication

Narita Intl ATIS128.250
Narita Intl Clearance DEL121.900
Narita Intl Ground Control121.950
Narita Intl Tower118.200
Narita Intl Tower118.350
Narita Intl TCA119.450
Narita Intl Approach124.400
Narita Intl Departure119.600
Narita Intl Departure124.200

Approach frequencies

ILS-cat-IIIRW16R111.518.00mi
ILS-cat-IRW34R110.918.00mi
ILS-cat-IRW16L110.718.00mi
ILS-cat-IRW34L111.918.00mi
3° GSRW16R111.518.00mi
3° GSRW34R110.918.00mi
3° GSRW16L110.718.00mi
3° GSRW34L111.918.00mi
Nearby Points of Interest:
Ryūgakuji Kofun Cluster
-
historic streets of Sawara
-
Yokotone Lock
-
Yatsu-higata
-
Bernard Leach
-
Tojō-tei
-
Yōgō no Matsu
-
Yamamoto-tei
-
Hitachi Kokubunji
-
Shirahige Bridge
-
Kototoi Bridge
-
Tokyo Memorial Hall
-
Former Hananoi Family House
-
Mikawashima Water Reclamation Center
-
Meiji Maru
-
Eitai Bridge
-
Pine Trees
-
Mikazuki Munechika
-
Suda Hachiman Shrine Mirror
-
Writing Box with Eight Bridges
-
Kuromon
-
International Library of Children's Literature
-
Mitsui Main Building
-
Shigaraki Palace
-
DN Tower 21

Runway info

Runway 16R / 34L
 length4006m (13143ft)
 bearing144° / 324°
 width60m (196ft)
 surfaceasphalt
 blast zone125m (410ft) / 127m (417ft)
Runway 16L / 34R
 length2503m (8212ft)
 bearing144° / 324°
 width60m (196ft)
 surfaceasphalt
 blast zone60m (197ft) / 61m (200ft)

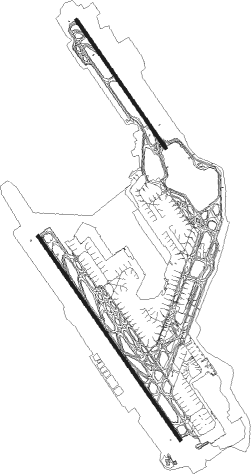

Airport layout


Taxiway locations

 A  A1  A10  A11  A12  A13  A2  A3
 A5  A8  A9  B  B1  B2  B3  B5
 B8  C  E  E5  E6  E7  G  G4
 H1  P  R  S  S1  S3  S4  S5
 S7  S8  W  W10  W3  W4  W5  W6
 W7  W8  W9
Parking locations

 Cargo  LLC  Stand  T1  T2

Nearby beacons

codeidentifierdistbearingfrequency
NRENARITA (TOKYO) VOR/DME2.7328°117.90
SHTSHIMOFUSA (MATSUDO) TACAN18.8279°108.20
TLDDME19327°116
CVTCHOSHI TACAN2092°113.60
SND(TOKYO) DME22.9295°114
HUCHYAKURI VORTAC26.73°113.30
SYESEKIYADO VOR/DME31.2296°117
KZTKISARAZU TACAN31.4235°110.05
HMEHANEDA (TOKYO) VOR/DME32.4254°112.20
OJTONJUKU TACAN33.4182°115.70
YLTIRUMA TACAN47.7276°110.60
TNSHIN-TACHIKAWA NDB48.2269°366
TNTTACHIKAWA TACAN48.2269°115.80
HYDDME48.8239°116.20
NJAATSUGI TACAN48.9252°115.10
JDNIKKO (UTSUNOMIYA) NDB51.5325°389
JDTUTSUNOMIYA TACAN52.8327°112.15
PQDDME53.5212°112.50
TETTATEYAMA TACAN53.5216°108.80

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW16L
 GULBO269mi102°
 BORLO272mi109°
 PEDLA167mi154°
 OLVAN2115mi185°
 PIGOK234mi227°
 REDEK229mi242°
 TETRA8122mi247°
RW16R
 GULBO269mi102°
 BORLO272mi109°
 SUNNS287mi125°
 PEDLA167mi154°
 OLVAN2115mi185°
 PIGOK234mi227°
 REDEK229mi242°
 SAKUR5, TETRA8122mi247°
 AKAGI451mi313°
RW34L
 GULBO269mi102°
 BORLO272mi109°
 SUNNS287mi125°
 PEDLA167mi154°
 OLVAN2115mi185°
 PIGOK234mi227°
 REDEK229mi242°
 TETRA8, SAKUR5122mi247°
 AKAGI451mi313°
RW34R
 GULBO269mi102°
 BORLO272mi109°
 PEDLA167mi154°
 OLVAN2115mi185°
 PIGOK234mi227°
 REDEK229mi242°
 TETRA8122mi247°

STAR starting pointsdistanceinbound heading
RW16 (ALL)
 LAKESN, SWAMPN, SWAMPG35.5194°
 BOSPAN34.1265°
 SUPOKG, SUPOKN52.7268°
 LUBLAN, LUBLAG52.2281°
 BINKSN37.2328°
 RUTASN, RUTASG62.3344°
RW34 (ALL)
 SWAMPE, SWAMPT35.5194°
 SUPOKE, SUPOKT52.7268°
 LUBLAT, LUBLAE52.2281°
 RUTAST, RUTASE62.3344°
RW34L
 SWAMSA35.5194°
 BOSPSA34.1265°
 BINKSA37.2328°
RW34R
 SWAMSB35.5194°
 BOSPSB34.1265°
 BINKSB37.2328°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16LGEMIN (187°)GEMIN 4000ft
GLARE (5mi, 301°)
AMITY (4mi, 239°) 3000ft
RW16LNORMA (213°)NORMA 6000ft
CURIO (5mi, 278°) 4000ft
GLARE (6mi, 278°)
AMITY (4mi, 239°) 3000ft
 RNAVAMITY 3000ft
BIRDY (7mi, 144°) 1777ft
A6L50 (2mi, 144°) 1240ft
RJAA (7mi, 158°) 189ft
(7730mi, 256°) 640ft
AA471 (7736mi, 76°)
BOSPA (25mi, 89°) 8000ft
BOSPA (turn)
RW34RELGAR (300°)ELGAR 5000ft
FIONA (4mi, 236°)
TEMIS (7mi, 295°) 5000ft
RW34RTYLER (320°)TYLER 5000ft
TEMIS (6mi, 324°) 5000ft
 RNAVTEMIS 5000ft
CROWN (9mi, 324°) 2932ft
A4R70 (5mi, 324°) 1310ft
RJAA (2mi, 278°) 196ft
(7730mi, 256°) 640ft
AA471 (7736mi, 76°)
BOSPA (25mi, 89°) 8000ft
BOSPA (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BINKSABINKSVHFright160 (340)°> 5000ftDME 6.0mi230
BINKSAGIINAVHFleft157 (337)°> 4000ftDME 4.9mi230
BINKSBBINKSVHFright160 (340)°> 5000ftDME 6.0mi230
BINKSBTEMISVHFright153 (333)°> 3000ftDME 5.9mi230
BINKSNBINKSVHFright160 (340)°> 5000ftDME 6.0mi230
BOSPANBOSPAVHFright132 (312)°> 4000ftDME 5.9mi230
BOSPSABOSPAVHFright132 (312)°> 4000ftDME 5.9mi230
BOSPSAGIINAVHFleft157 (337)°> 4000ftDME 4.9mi230
BOSPSBBOSPAVHFright132 (312)°> 4000ftDME 5.9mi230
BOSPSBTEMISVHFright153 (333)°> 3000ftDME 5.9mi230
LAKESNSWAMPVHFleft25 (205)°11000ft - 14000ft1.0min timed230
LUBLAECORGIVHFright43 (223)°4000ft - 14000ft1.0min timed230
LUBLAEELGARVHFright43 (223)°3000ft - 14000ft1.0min timed230
LUBLAELUBLAVHFright161 (341)°5000ft - 14000ft1.0min timed230
LUBLAGCASIOVHFright136 (316)°4000ft - 14000ft1.0min timed230
LUBLAGGEMINVHFright137 (317)°4000ft - 14000ft1.0min timed230
LUBLAGLUBLAVHFright161 (341)°5000ft - 14000ft1.0min timed230
LUBLANBARONVHFright97 (277)°6000ft - 14000ft1.0min timed230
LUBLANLUBLAVHFright161 (341)°5000ft - 14000ft1.0min timed230
LUBLANNORMAVHFright128 (308)°6000ft - 14000ft1.0min timed230
LUBLATLUBLAVHFright161 (341)°5000ft - 14000ft1.0min timed230
LUBLATPEAKSVHFleft118 (298)°4000ft - 14000ft1.0min timed230
LUBLATTYLERVHFleft157 (337)°3000ft - 14000ft1.0min timed230
RUTASEAQUOSVHFright217 (37)°5000ft - 14000ft1.0min timed230
RUTASECORGIVHFright43 (223)°4000ft - 14000ft1.0min timed230
RUTASEELGARVHFright43 (223)°3000ft - 14000ft1.0min timed230
RUTASERUTASVHFright245 (65)°6000ft - 14000ft1.0min timed230
RUTASGCASIOVHFright136 (316)°4000ft - 14000ft1.0min timed230
RUTASGCOPENVHFright198 (18)°6000ft - 14000ft1.0min timed230
RUTASGGEMINVHFright137 (317)°4000ft - 14000ft1.0min timed230
RUTASGRUTASVHFright245 (65)°6000ft - 14000ft1.0min timed230
RUTASGVENUSVHFright193 (13)°6000ft - 14000ft1.0min timed230
RUTASNBARONVHFright97 (277)°6000ft - 14000ft1.0min timed230
RUTASNGAUDIVHFright178 (358)°6000ft - 14000ft1.0min timed230
RUTASNNORMAVHFright128 (308)°6000ft - 14000ft1.0min timed230
RUTASNRUTASVHFright245 (65)°6000ft - 14000ft1.0min timed230
RUTASNVENUSVHFright193 (13)°6000ft - 14000ft1.0min timed230
RUTASTPEAKSVHFleft118 (298)°4000ft - 14000ft1.0min timed230
RUTASTRUTASVHFright245 (65)°6000ft - 14000ft1.0min timed230
RUTASTTYLERVHFleft157 (337)°3000ft - 14000ft1.0min timed230
RUTASTVENUSVHFright193 (13)°6000ft - 14000ft1.0min timed230
SUPOKECORGIVHFright43 (223)°4000ft - 14000ft1.0min timed230
SUPOKEELGARVHFright43 (223)°3000ft - 14000ft1.0min timed230
SUPOKESUPOKVHFright96 (276)°5000ft - 14000ft1.0min timed230
SUPOKGCASIOVHFright136 (316)°4000ft - 14000ft1.0min timed230
SUPOKGGEMINVHFright137 (317)°4000ft - 14000ft1.0min timed230
SUPOKGSUPOKVHFright96 (276)°5000ft - 14000ft1.0min timed230
SUPOKNBARONVHFright97 (277)°6000ft - 14000ft1.0min timed230
SUPOKNNORMAVHFright128 (308)°6000ft - 14000ft1.0min timed230
SUPOKNSUPOKVHFright96 (276)°5000ft - 14000ft1.0min timed230
SUPOKTPEAKSVHFleft118 (298)°4000ft - 14000ft1.0min timed230
SUPOKTSUPOKVHFright96 (276)°5000ft - 14000ft1.0min timed230
SUPOKTTYLERVHFleft157 (337)°3000ft - 14000ft1.0min timed230
SWAMPECORGIVHFright43 (223)°4000ft - 14000ft1.0min timed230
SWAMPEELGARVHFright43 (223)°3000ft - 14000ft1.0min timed230
SWAMPEKARMAVHFleft348 (168)°6000ft - 14000ft1.0min timed230
SWAMPEPLEIAVHFright321 (141)°9000ft - 14000ft1.0min timed230
SWAMPESWAMPVHFleft25 (205)°11000ft - 14000ft1.0min timed230
SWAMPGCASIOVHFright136 (316)°4000ft - 14000ft1.0min timed230
SWAMPGGEMINVHFright137 (317)°4000ft - 14000ft1.0min timed230
SWAMPGPLEIAVHFright321 (141)°9000ft - 14000ft1.0min timed230
SWAMPGSWAMPVHFleft25 (205)°11000ft - 14000ft1.0min timed230
SWAMPNBARONVHFright97 (277)°6000ft - 14000ft1.0min timed230
SWAMPNNORMAVHFright128 (308)°6000ft - 14000ft1.0min timed230
SWAMPNPLEIAVHFright321 (141)°9000ft - 14000ft1.0min timed230
SWAMPNSWAMPVHFleft25 (205)°11000ft - 14000ft1.0min timed230
SWAMPTKARMAVHFleft348 (168)°6000ft - 14000ft1.0min timed230
SWAMPTPEAKSVHFleft118 (298)°4000ft - 14000ft1.0min timed230
SWAMPTPLEIAVHFright321 (141)°9000ft - 14000ft1.0min timed230
SWAMPTSWAMPVHFleft25 (205)°11000ft - 14000ft1.0min timed230
SWAMPTTYLERVHFleft157 (337)°3000ft - 14000ft1.0min timed230
SWAMSAGIINAVHFleft157 (337)°> 4000ftDME 4.9mi230
SWAMSASWAMPVHFleft25 (205)°11000ft - 14000ft1.0min timed230
SWAMSBSWAMPVHFleft25 (205)°11000ft - 14000ft1.0min timed230
SWAMSBTEMISVHFright153 (333)°> 3000ftDME 5.9mi230
*) magnetic outbound (inbound) holding course
