Airports for X-Plane

Monbetsu

Airport details

CountryJapan
StateHokkaidō Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityMombetsu
Elevation80ft (24m)
TimezoneGMT +9
Coordinates44.30416, 143.40416
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJEB
IATA codeMBE
FAA coden/a

Communication

Monbetsu REMOTE118.150

Approach frequencies

ILS-cat-IRW32111.5518.00mi
3° GSRW32111.5518.00mi

Runway info

Runway 14 / 32
 length2002m (6568ft)
 bearing123° / 303°
 width45m (148ft)
 surfaceasphalt
 blast zone55m (180ft) / 55m (180ft)

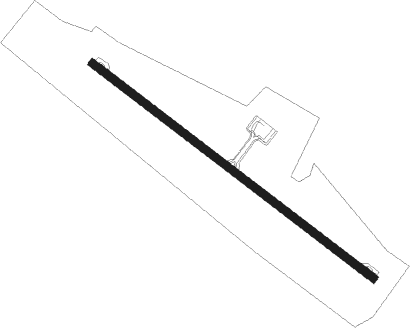

Airport layout


Parking locations

 Stand

Nearby beacons

codeidentifierdistbearingfrequency
MVEMONBETSU VOR/DME0.3277°112.90
TBEMEMANBETSU VOR/DME41.4119°110.85
AWEASAHIKAWA VOR/DME56236°113.50

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW14
 LUBEK1, MVE5R25mi237°
RW32
 LUBEK1, MVE5R25mi237°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14LUBEK (57°)LUBEK 8000ft
EB450 (16mi, 39°) 4200ft
 RNAVEB450 4200ft
EB451 (6mi, 39°) 3300ft
EB452 (1mi, 39°) 2836ft
EB453 (4mi, 90°) 1303ft
EB454 (turn) 1112ft
EB455 (turn) 906ft
RJEB (3mi, 123°) 130ft
EB456 (6mi, 123°)
EB457 (8mi, 226°)
LUBEK (20mi, 256°) 8000ft
LUBEK (turn) 8000ft
RW32LUBEK (57°)LUBEK 8000ft
EB250 (16mi, 68°) 4200ft
 RNAVEB250 4200ft
EB251 (3mi, 68°) 3100ft
EB252 (3mi, 68°) 2700ft
EB253 (1mi, 68°) 2282ft
EB254 (4mi, 9°) 906ft
RJEB (3mi, 303°) 126ft
EB255 (6mi, 303°)
EB256 (7mi, 236°)
LUBEK (19mi, 217°) 8000ft
LUBEK (turn) 8000ft
