Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

flights airfield commuter helipad propeller plane regional hospital hangar aerodrome airborne jetliner buildings train air safety airline southwest landing area station takeoff air terminal

Airports for X-Plane

Makinohara / Shimada - Mt. Fuji Shizuoka

Airport details

CountryJapan
StateShizuoka Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityMakinohara
Elevation433ft (132m)
TimezoneGMT +9
Coordinates34.79611, 138.18944
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJNS
IATA codeFSZ
FAA coden/a

Communication

Mt. Fuji Shizuoka Shizuoka Ground126.200
Mt. Fuji Shizuoka Shizuoka Radio118.000
Mt. Fuji Shizuoka Tokyo Control123.700
Mt. Fuji Shizuoka Tokyo Control134.150

Approach frequencies

ILS-cat-IRW30109.318.00mi
3° GSRW30109.318.00mi
Nearby Points of Interest:
Nomanji no Sotetsu
-
Old Emberson House
-
Nihondaira
-
Shimizu Minato Station

Runway info

Runway 12 / 30
 length2487m (8159ft)
 bearing108° / 288°
 width58m (190ft)
 surfaceasphalt
 blast zone64m (210ft) / 63m (207ft)

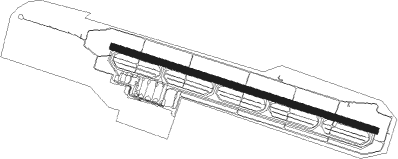

Airport layout


Parking locations

 Gate  Gate1  Ramp  Spot

Nearby beacons

codeidentifierdistbearingfrequency
SZESHIZUOKA VOR/DME0.179°110.65
YZTSHIZUHAMA (YAIZU) TACAN5.380°109.20
LHTHAMAMATSU TACAN23.8264°114.70
WWTHAMAMATSU TACAN23.9264°135.90

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW12
 MOSLO176mi184°
 FUJIK2, SZE1R39mi347°
RW30
 MOSLO176mi184°
 FUJIK2, SZE1R39mi347°

STAR starting pointsdistanceinbound heading
ALL
 MOSLO76.14°
 ENSYU, OHCHA17.032°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ENSYUENSYUVHFright277 (97)°15000ft - 43000ft1.5min timed280
ENSYUSUZKIVHFleft119 (299)°4000ft - 60000ftDME 5.0mi230
MOSLOSUZKIVHFleft119 (299)°4000ft - 60000ftDME 5.0mi230
OHCHAENSYUVHFright277 (97)°15000ft - 43000ft1.5min timed280
OHCHAKOITOVHFright151 (331)°> 5000ftDME 8.9mi240
OHCHAUNAGIVHFleft119 (299)°> 4000ftDME 5.7mi230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
