Airports for X-Plane

Yamagata

Airport details

CountryJapan
StateYamagata Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityHigashine
Elevation345ft (105m)
TimezoneGMT +9
Coordinates38.41195, 140.37111
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJSC
IATA codeGAJ
FAA coden/a

Communication

Yamagata Yamagata Radio122.700
Yamagata Yamagata Radio126.200
Yamagata Tokyo Control118.900
Yamagata Tokyo Control135.900

Approach frequencies

ILS-cat-IRW01110.118.00mi
3° GSRW01110.118.00mi
Nearby Points of Interest:
Jōmon Goddess
-
Motoki Stone Torii
-
Botanical Garden of Tohoku University
-
Three Mountains of Dewa
-
Mutsu Kokubun-niji
-
Shiogama Jinja

Runway info

Runway 01 / 19
 length2003m (6572ft)
 bearing8° / 188°
 width46m (150ft)
 surfaceasphalt
 blast zone60m (197ft) / 59m (194ft)

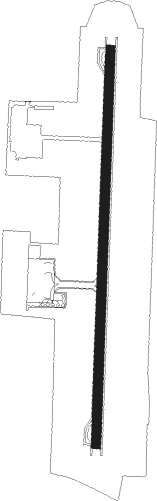

Airport layout


Parking locations

 1  2  3  5  A  B  C  D
 E  F

Nearby beacons

codeidentifierdistbearingfrequency
YTEYAMAGATA VOR/DME1.5209°113
SDESENDAI VOR/DME30.7116°116.30
YSESHONAI VOR/DME35.9305°109.60
MXTMATSUSHIMA TACAN40.291°114.30

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW01
 HANKA137mi17°
 RUBIS142mi158°
 GTC165mi250°
RW19
 HANKA137mi17°
 RUBIS142mi158°
 GTC165mi250°

STAR starting pointsdistanceinbound heading
RW01
 YOZANW36.958°
RW19
 MEDETS26.012°
 MEDETW36.958°
 TUYAH31.1217°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW19MEDET (151°)MEDET 7000ft
GINZA (8mi, 95°) 3000ft
RW19TUYAH (188°)TUYAH 7000ft
SC950 (4mi, 188°) 4500ft
GINZA (4mi, 188°) 3000ft
 RNAVGINZA 3000ft
SC951 (4mi, 188°) 2400ft
YASYO (4mi, 188°) 2200ft
SC952 (2mi, 188°) 1548ft
SC953 (3mi, 188°) 720ft
SC954 (9mi, 188°)
YTE (6mi, 2°) 7000ft
YTE (turn) 7000ft
