Airports for X-Plane

Kadena Ab

Airport details

CountryJapan
StateOkinawa Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityKadena
Elevation143ft (44m)
TimezoneGMT +9
Coordinates26.36384, 127.77274
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRODN
IATA codeDNA
FAA coden/a

Communication

Kadena AB ATIS124.200
Kadena AB Clearance DEL123.300
Kadena AB Ground Control CTL118.500
Kadena AB Tower134.100
Kadena AB Approach NW119.100
Kadena AB Approach SE126.500
Kadena AB Departure SE126.500
Kadena AB Departure NW119.100

Approach frequencies

ILS-cat-IRW05L109.718.00mi
ILS-cat-IRW23R108.718.00mi
3° GSRW05L109.718.00mi
3° GSRW23R108.718.00mi
Nearby Points of Interest:
Gusuku Sites and Related Properties of the Kingdom of Ryukyu
-
Lake Man
-
Kerama Islands
-
Yanbaru
-
Tonaki Island

Runway info

Runway 05L / 23R
 length3693m (12116ft)
 bearing54° / 234°
 width91m (300ft)
 surfaceasphalt
 blast zone255m (837ft) / 0m (0ft)
Runway 05R / 23L
 length3691m (12110ft)
 bearing54° / 234°
 width61m (200ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)

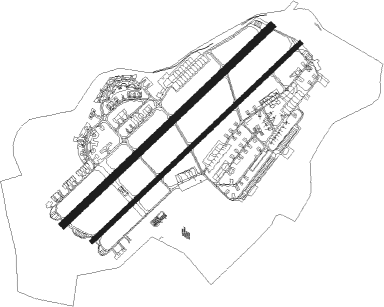

Airport layout


Taxiway locations

 A  B  C  D  E  F  G  J
 K  L  M  N  P  W
Parking locations

 Aero  AMC  N4  SA4

Nearby beacons

codeidentifierdistbearingfrequency
KADKADENA (OKINAWA) VORTAC0.4211°112
NFOFUTENMA (OKINAWA I.) TACAN5.9197°110.50
NHCNAHA VORTAC11.6220°116.50
TITCHINEN TACAN12.2172°114.20
YREYORON VOR/DME52.843°112.25

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW05 (ALL)
 JILEE314mi66°
RW05R
 HIVAS314mi65°
RW23 (ALL)
 EKOLU114mi223°
 TUCOF210mi233°
RW23L
 CUNEK310mi233°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05LADYEK (53°)ADYEK 6000ft
CIRUG (7mi, 54°) 3000ft
 RNAVCIRUG 3000ft
WITOT (6mi, 51°) 2200ft
RODN (8mi, 54°) 119ft
(7404mi, 258°) 540ft
BYYRD (7414mi, 78°) 6000ft
BYYRD (turn)
RW05RADYEK (53°)ADYEK 6000ft
CIRUG (7mi, 54°) 3000ft
 RNAVCIRUG 3000ft
COUCH (6mi, 54°) 2200ft
RODN (8mi, 52°) 134ft
(7404mi, 258°) 543ft
BYYRD (7414mi, 78°) 6000ft
BYYRD (turn)
RW23LBYYRD (235°)BYYRD 6000ft
CITIK (5mi, 234°) 3500ft
 RNAVCITIK 3500ft
CEBIT (6mi, 234°) 2200ft
CANAG (4mi, 234°) 1020ft
RODN (4mi, 239°) 188ft
(7404mi, 258°) 543ft
ADYEK (7393mi, 78°) 6000ft
ADYEK (turn)
RW23RBYYRD (235°)BYYRD 6000ft
CITIK (5mi, 234°) 3500ft
 RNAVCITIK 3500ft
MISAE (7mi, 236°) 2200ft
RODN (6mi, 235°) 178ft
(7404mi, 258°) 543ft
ADYEK (7393mi, 78°) 6000ft
ADYEK (turn)
