Airports4XP | RPLL | Manila - Ninoy Aquino Intl

Manila - Ninoy Aquino Intl

Airport details

Country	Philippines
State	[Other]
Region	RP
Airspace	Manila Ctr
Municipality	Pasay
Elevation	75ft (23m)
Timezone	GMT +8
Coordinates	14.51372, 121.01863
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	RPLL
IATA code	MNL
FAA code	n/a

Communication

Ninoy Aquino Intl MANILA FSS	124.000
Ninoy Aquino Intl ATIS	126.400
Ninoy Aquino Intl MANILA CLD	125.100
Ninoy Aquino Intl MANILA Ground Control	121.800
Ninoy Aquino Intl MANILA Tower	118.100
Ninoy Aquino Intl MANILA Approach	121.100
Ninoy Aquino Intl MANILA Approach	119.700
Ninoy Aquino Intl MANILA Departure	121.100

Approach frequencies

ILS-cat-I	RW24	109.9	18.00mi
ILS-cat-I	RW06	109.1	18.00mi
3° GS	RW24	109.9	18.00mi
3° GS	RW06	109.1	18.00mi

Runway info

Runway 06 / 24
	length	3413m (11198ft)
	bearing	61° / 241°
	width	64m (211ft)
	surface	asphalt
Runway 13 / 31
	length	1917m (6289ft)
	bearing	134° / 314°
	width	46m (151ft)
	surface	asphalt

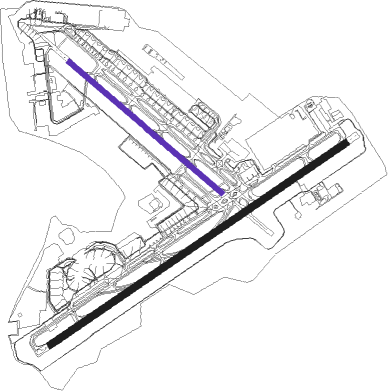

Airport layout - runway 13 / 31

Taxiway locations

C1	C2	C4	D5	E1	E2	E5	F1
F1B	F2	F3	F4	F5	G3	G9	H2
L	N1	N2	N3	P	S22	S25	S26

Parking locations

Bay	Cargo	DOM	GA	Parade	T2	T3	Terminal
Villamor

Nearby beacons

code	identifier	dist	bearing	frequency
MIA	MANILA VOR/DME	0.3	152°	114.40
CIA	CLARK VOR/DME	48.3	326°	113.10
SBA	SUBIC BAY VOR/DME	48.6	288°	113.50
CAB	CABANATUAN VOR/DME	58.1	0°	112.70

Departure and arrival routes

Transition altitude

11000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW06
	CAB2R, CAB1A	58mi	0°
	JOM2R, JOM2A	77mi	82°
	TIMO2A, TIMO2R	60mi	117°
	IPAT2A, IPAT2R	60mi	129°
	LIGP2D	34mi	169°
	VERD2R, VERD2A	61mi	179°
	DINO2R	61mi	190°
	BUCA2R, BUCA2A	60mi	206°
	BETE2A, BETE2R	53mi	248°
	SIRC2A, SIRC2R	40mi	266°
	NATI2A	38mi	288°
	SIMB2A	40mi	294°
	OLIV2A	31mi	326°
	ALPA2R	61mi	344°
RW13
	CAB4V, CAB2V, CAB1C	58mi	0°
	JOM2C	77mi	82°
	TIMO4V, TIMO2V, TIMO2C	60mi	117°
	IPAT2V, IPAT4V, IPAT2C	60mi	129°
	LIGP2F	34mi	169°
	VERD2C, VERD2V, VERD4V	61mi	179°
	DINO4V, DINO2V	61mi	190°
	BUCA2C, BUCA2V, BUCA4V	60mi	206°
	BETE2C	53mi	248°
	SIRC2C	40mi	266°
	NATI2C	38mi	288°
	SIMB2C	40mi	294°
	OLIV2C	31mi	326°
	ALPA2V, ALPA4V	61mi	344°
RW24
	CAB2P, CAB1B	58mi	0°
	JOM2B, JOM2P	77mi	82°
	TIMO2B, TIMO2P	60mi	117°
	IPAT2P, IPAT2B	60mi	129°
	LIGP2E	34mi	169°
	VERD2B, VERD2P	61mi	179°
	DINO2P	61mi	190°
	BUCA2B, BUCA2P	60mi	206°
	BETE2P, BETE2B	53mi	248°
	SIRC2B, SIRC2P	40mi	266°
	NATI2B	38mi	288°
	SIMB2B	40mi	294°
	OLIV2B	31mi	326°
	ALPA2P	61mi	344°

STAR starting points		distance	inbound heading
RW06
	BUCA3R, BUCAL1, BUCA7R, BUCA5R	60.4	26°
	LUBA3R, LUBA7R, LUBA5R	66.2	54°
	OLONG1	54.0	96°
	BAYA1A	28.4	131°
	OLIV1A	31.3	146°
	TADE5R, TADE3R, TADE7R	63.8	147°
	NABA7R, NABA3R, NABA5R	64.2	153°
	ESCAN1	73.2	164°
	CAB3R, CAB5R, CAB7R	58.1	180°
	POLIO1	135.9	241°
	POLI7R, POLI5R, POLI3R	60.0	241°
	ALBA7R, ALBA3R, ALBAT1, ALBA5R	55.5	288°
	CONDE1, COND3R, COND5R, COND7R	60.5	324°
	LAIY3R, LAIY5R, LAIY7R	60.6	338°
	IBAG5R, IBAG7R, IBAG3R	60.6	343°
	LIGP1B	34.0	349°
RW24
	BUCAL1, BUCA5P, BUCA3P, BUCA7P	60.4	26°
	LUBA5P, LUBA3P, LUBA7P	66.2	54°
	OLONG1	54.0	96°
	BAYA1A	28.4	131°
	OLIV1A	31.3	146°
	TADE5P, TADE7P, TADE3P	63.8	147°
	NABA3P, NABA5P, NABA7P	64.2	153°
	ESCAN1	73.2	164°
	CAB5P, CAB3P, CAB7P	58.1	180°
	POLI5P, POLI3P, POLI7P	60.0	241°
	POLIO1	135.9	241°
	ALBAT1, ALBA7P, ALBA3P, ALBA5P	55.5	288°
	COND7P, CONDE1, COND3P, COND5P	60.5	324°
	LAIY7P, LAIY5P, LAIY3P	60.6	338°
	IBAG3P, IBAG7P, IBAG5P	60.6	343°
	LIGP1B	34.0	349°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW06	DAGAT (90°)	DAGAT 5000ft LL06D (8mi, 150°) 3000ft
RW06	GONDO (60°)	GONDO 5000ft LL06D (8mi, 61°) 3000ft
RW06	TRECE (29°)	TRECE 5000ft LL06D (8mi, 330°) 3000ft
	RNAV	LL06D 3000ft LL06E (7mi, 61°) 1700ft RPLL (6mi, 58°) 66ft LL06F (8mi, 63°) LL06G (8mi, 0°) LL06H (14mi, 270°) 7000ft LL06H (turn) 7000ft
RW24	MEDAM (210°)	MEDAM 5000ft LL24D (8mi, 150°) 3500ft
RW24	MUTAN (242°)	MUTAN 7200ft LL24K (6mi, 241°) 5100ft LL24D (5mi, 241°) 3500ft
RW24	NATAY (274°)	NATAY 5000ft LL24D (8mi, 330°) 3500ft
	RNAV	LL24D 3500ft LL24B (6mi, 241°) 2100ft RPLL (7mi, 243°) 125ft LL24F (9mi, 239°) LL24G (10mi, 330°) 7000ft LL24G (turn) 7000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
ALBA3P	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
ALBA3R	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
ALBA5P	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
ALBA5R	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
ALBA7P	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
ALBA7P	PATCA	VHF	left	62 (242)°	7200ft - 14000ft	1.0min timed	230
ALBA7R	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
ALBA7R	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
BUCA3P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
BUCA3P	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
BUCA3R	WAYEM	VHF	left	152 (332)°	6000ft - 14000ft	1.0min timed	230
BUCA5P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
BUCA5P	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
BUCA5R	WAYEM	VHF	left	152 (332)°	6000ft - 14000ft	1.0min timed	230
BUCA7P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
BUCA7P	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
BUCA7P	PATCA	VHF	left	62 (242)°	7200ft - 14000ft	1.0min timed	230
BUCA7R	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
BUCA7R	WAYEM	VHF	left	152 (332)°	6000ft - 14000ft	1.0min timed	230
CAB3P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
CAB3R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
CAB5P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
CAB5R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
CAB7P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
CAB7P	PATCA	VHF	left	62 (242)°	7200ft - 14000ft	1.0min timed	230
CAB7R	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
CAB7R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
COND3P	BORIS	VHF	left	152 (332)°	10000ft - 16000ft	1.0min timed	230
COND3P	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
COND3R	BORIS	VHF	left	152 (332)°	10000ft - 16000ft	1.0min timed	230
COND3R	WAYEM	VHF	left	152 (332)°	6000ft - 14000ft	1.0min timed	230
COND5P	BORIS	VHF	left	152 (332)°	10000ft - 16000ft	1.0min timed	230
COND5P	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
COND5R	BORIS	VHF	left	152 (332)°	10000ft - 16000ft	1.0min timed	230
COND5R	WAYEM	VHF	left	152 (332)°	6000ft - 14000ft	1.0min timed	230
COND7P	BORIS	VHF	left	152 (332)°	10000ft - 16000ft	1.0min timed	230
COND7P	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
COND7P	PATCA	VHF	left	62 (242)°	7200ft - 14000ft	1.0min timed	230
COND7R	BORIS	VHF	left	152 (332)°	10000ft - 16000ft	1.0min timed	230
COND7R	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
COND7R	WAYEM	VHF	left	152 (332)°	6000ft - 14000ft	1.0min timed	230
IBAG3P	BORIS	VHF	left	152 (332)°	10000ft - 16000ft	1.0min timed	230
IBAG3P	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
IBAG3R	WAYEM	VHF	left	152 (332)°	6000ft - 14000ft	1.0min timed	230
IBAG5P	BORIS	VHF	left	152 (332)°	10000ft - 16000ft	1.0min timed	230
IBAG5P	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
IBAG5R	WAYEM	VHF	left	152 (332)°	6000ft - 14000ft	1.0min timed	230
IBAG7P	BORIS	VHF	left	152 (332)°	10000ft - 16000ft	1.0min timed	230
IBAG7P	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
IBAG7P	PATCA	VHF	left	62 (242)°	7200ft - 14000ft	1.0min timed	230
IBAG7R	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
IBAG7R	WAYEM	VHF	left	152 (332)°	6000ft - 14000ft	1.0min timed	230
LAIY3P	BORIS	VHF	left	152 (332)°	10000ft - 16000ft	1.0min timed	230
LAIY3P	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
LAIY3R	WAYEM	VHF	left	152 (332)°	6000ft - 14000ft	1.0min timed	230
LAIY5P	BORIS	VHF	left	152 (332)°	10000ft - 16000ft	1.0min timed	230
LAIY5P	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
LAIY5R	WAYEM	VHF	left	152 (332)°	6000ft - 14000ft	1.0min timed	230
LAIY7P	BORIS	VHF	left	152 (332)°	10000ft - 16000ft	1.0min timed	230
LAIY7P	NATAY	VHF	right	152 (332)°	7200ft - 14000ft	1.0min timed	230
LAIY7P	PATCA	VHF	left	62 (242)°	7200ft - 14000ft	1.0min timed	230
LAIY7R	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
LAIY7R	WAYEM	VHF	left	152 (332)°	6000ft - 14000ft	1.0min timed	230
LUBA1C	HANEL	VHF	right	243 (63)°	5000ft - 60000ft	1.0min timed	ICAO rules
LUBA3P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
LUBA3P	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
LUBA3R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
LUBA5P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
LUBA5P	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
LUBA5R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
LUBA7P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
LUBA7P	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
LUBA7P	PATCA	VHF	left	62 (242)°	7200ft - 14000ft	1.0min timed	230
LUBA7R	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
LUBA7R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
NABA3P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
NABA3R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
NABA5P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
NABA5R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
NABA7P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
NABA7P	PATCA	VHF	left	62 (242)°	7200ft - 14000ft	1.0min timed	230
NABA7R	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
NABA7R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
POLI3P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
POLI3R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
POLI5P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
POLI5R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
POLI7P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
POLI7P	PATCA	VHF	left	62 (242)°	7200ft - 14000ft	1.0min timed	230
POLI7R	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
POLI7R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
POLIO1	BANGI	VHF	right	60 (240)°	7000ft - 60000ft	1.0min timed	ICAO rules
TADE3P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
TADE3R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
TADE5P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
TADE5R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
TADE7P	AYIFF	VHF	left	332 (152)°	7200ft - 14000ft	1.0min timed	230
TADE7P	PATCA	VHF	left	62 (242)°	7200ft - 14000ft	1.0min timed	230
TADE7R	ESTEL	VHF	left	242 (62)°	5000ft - 14000ft	1.0min timed	230
TADE7R	YANNI	VHF	right	332 (152)°	5300ft - 14000ft	1.0min timed	230
*) magnetic outbound (inbound) holding course
