Airports for X-Plane

Zamboanga City - Zamboanga Intl

Airport details

CountryPhilippines
StateZamboanga del Sur Province
RegionRP
AirspaceManila Ctr
MunicipalityZamboanga City
Elevation33ft (10m)
TimezoneGMT +8
Coordinates6.92452, 122.06628
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRPMZ
IATA codeZAM
FAA coden/a

Communication

Zamboanga Intl CTAF121.900
Zamboanga Intl Tower123.500
Zamboanga Intl Tower124.000
Zamboanga Intl Tower118.100
Zamboanga Intl Approach122.700

Runway info

Runway 09 / 27
 length2606m (8550ft)
 bearing94° / 274°
 width44m (144ft)
 surfaceasphalt

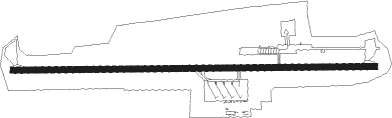

Airport layout


Parking locations

 Mil  Spot

Nearby beacons

codeidentifierdistbearingfrequency
ZAMZAMBOANGA VOR/DME0.6271°113.90

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW09
 BURC2C, BURC2A, BURC1E25mi5°
 PARA2C, PARA2A, PARA1E25mi28°
 GOST2A, GOST1E24mi83°
 COGE2A24mi106°
 TANA2A25mi152°
 TABU2A, TABU1E25mi206°
 PILA1E, PILA2A26mi256°
 MASU2A, MASU2C25mi333°
 TIND2C, TIND2A25mi348°
RW27
 BURC1W, BURC2B, BURC2D25mi5°
 PARA2D, PARA2B, PARA1W25mi28°
 GOST1W, GOST2B24mi83°
 COGE2B24mi106°
 TANA2B25mi152°
 TABU1W, TABU2B25mi206°
 PILA1W, PILA2B26mi256°
 MASU2D, MASU2B25mi333°
 TIND2B, TIND2D25mi348°

STAR starting pointsdistanceinbound heading
ALL
 TABUL125.326°
 PILAS125.676°
 MASUN125.4153°
 TINDO125.2168°
 BURCO125.0185°
 PARAL124.8208°
 GOSTO124.3263°
 COGEL124.3286°
 TANAL124.7332°
RW09
 TABU2E25.326°
 PILA2E25.676°
 TIND1E25.2168°
 PARA2E24.8208°
 GOST2E24.3263°
RW27
 TABU2W25.326°
 PILA2W25.676°
 TIND1W25.2168°
 PARA2W24.8208°
 GOST2W24.3263°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09MZ408 (76°)MZ408 2500ft
MZ404 (5mi, 24°) 2500ft
RW09MZ412 (126°)MZ412 5200ft
MZ404 (10mi, 177°) 2500ft
 RNAVMZ404 2500ft
MZ402 (5mi, 94°) 2500ft
RPMZ (9mi, 93°) 77ft
MZ420 (2mi, 99°)
MZ422 (9mi, 216°)
MZ410 (10mi, 274°)
MZ408 (4mi, 330°) 2500ft
RW27MZ606 (292°)MZ606 3200ft
MZ604 (5mi, 344°) 2500ft
RW27MZ612 (257°)MZ612 2800ft
MZ604 (5mi, 204°) 2500ft
 RNAVMZ604 2500ft
MZ602 (5mi, 274°) 2500ft
RPMZ (8mi, 275°) 82ft
MZ610 (2mi, 270°)
MZ608 (15mi, 125°)
MZ606 (5mi, 56°) 3200ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GOST2EMZ408VHFleft204 (24)°2500ft - 10000ft1.0min timed230
PARA2EMZ412VHFright358 (178)°5200ft - 10000ft1.0min timed230
PARA2WMZ612VHFleft24 (204)°2800ft - 11000ft1.0min timed230
PILA2EMZ408VHFleft204 (24)°2500ft - 10000ft1.0min timed230
PILA2WMZ606VHFright164 (344)°3200ft - 11000ft1.0min timed230
TABU2EMZ408VHFleft204 (24)°2500ft - 10000ft1.0min timed230
TABU2WMZ606VHFright164 (344)°3200ft - 11000ft1.0min timed230
TIND1EMZ412VHFright358 (178)°5200ft - 10000ft1.0min timed230
TIND1WMZ612VHFleft24 (204)°2800ft - 11000ft1.0min timed230
*) magnetic outbound (inbound) holding course
