Malay - Caticlan

Airport details

Country	Philippines
State	Aklan
Region	RP
Airspace	Manila Ctr
Municipality	Malay
Elevation	4ft (1m)
Timezone	GMT +8
Coordinates	11.92631, 121.95753
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	RPVE
IATA code	MPH
FAA code	n/a

Communication

Caticlan CTAF	121.900
Caticlan Tower 1	118.600
Caticlan Tower 2	122.700

Runway info

Runway 06 / 24
	length	1693m (5554ft)
	bearing	63° / 243°
	width	45m (148ft)
	surface	concrete
	displ threshold	55m (180ft) / 0m (0ft)

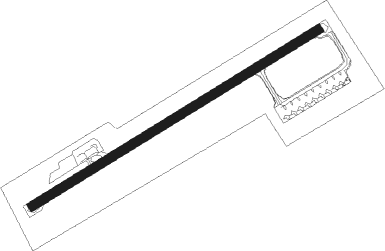

Airport layout

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
CT	CATICLAN NDB	0	150°	379
CAT	DME	0.1	189°	113.40
KL	KALIBO NDB	28.8	120°	298
KLO	KALIBO VOR/DME	28.9	120°	113
RXT	ROXAS TACAN	50.5	112°	113.30
ROX	ROXAS VOR/DME	50.8	112°	112.90
SAJ	SAN JOSE VOR/DME	59.6	295°	117.10

Departure and arrival routes

Transition altitude

11000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW06
	MINO8A	31mi	32°
	KLO8A	29mi	120°
RW24
	MIN3E, MINO6A	31mi	32°
	KLO3C, KLO6A	29mi	120°
	LAM3F	51mi	153°
	TAP3C	27mi	344°

STAR starting points		distance	inbound heading
RW06
	TAPE7A, TAPE7B	27.4	164°
	KLO7A	28.9	300°
RW24
	TAPE5A, TAPE5B	27.4	164°
	KLO5A	28.9	300°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW06	POPEE (86°)	POPEE 3600ft VE403 (5mi, 153°) 2300ft
	RNAV	VE403 2300ft VE402 (5mi, 63°) 2300ft RPVE (7mi, 63°) 62ft VE400 (5mi, 63°) EDWAR (5mi, 333°) CRISO (4mi, 278°) 2000ft CRISO (turn) 7000ft
RW24	CABAL (212°)	CABAL 3000ft VE502 (6mi, 153°) 1600ft
	RNAV	VE502 1600ft VE501 (4mi, 243°) 1600ft RPVE (5mi, 243°) 74ft (7278mi, 264°) 1000ft CRISO (7275mi, 84°) 2000ft CRISO (turn) 7000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
KLO7A	CRISO	VHF	right	345 (165)°	2000ft - 7000ft	1.0min timed	180
TAPE5B	CRISO	VHF	right	345 (165)°	2000ft - 7000ft	1.0min timed	180
TAPE7B	CRISO	VHF	right	345 (165)°	2000ft - 7000ft	1.0min timed	180
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
