Airports for X-Plane

Lapu-lapu City - Mactan-cebu

Airport details

CountryPhilippines
StateCebu Province
RegionRP
AirspaceManila Ctr
MunicipalityLapu-Lapu
Elevation27ft (8m)
TimezoneGMT +8
Coordinates10.30755, 123.97942
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRPVM
IATA codeCEB
FAA coden/a

Communication

Mactan-Cebu ATIS126.600
Mactan-Cebu Clearance125.100
Mactan-Cebu Ground Control121.900
Mactan-Cebu Tower118.100
Mactan-Cebu Approach121.200
Mactan-Cebu Approach124.700

Runway info

Runway 04 / 22
 length3319m (10889ft)
 bearing45° / 225°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

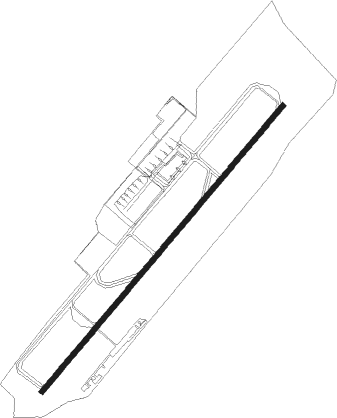

Airport layout


Taxiway locations

 B  C  D  G  H  J  K  L
Parking locations

 APB  GA  M10  M11  M12  M6  M7  M8
 Parking

Nearby beacons

codeidentifierdistbearingfrequency
MCTMACTAN (LAPU-LAPU) VOR/DME0.656°114.30
BHLPANGLAO VOR/DME45.8196°116.20
BCDBACOLOD VOR/DME63.2296°115.30
DGTDUMAGUETE VOR70.7215°114.10

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW04
 PONS4P, PON2A51mi49°
 CARE4P50mi114°
 BMP2A50mi131°
 BOL2A50mi151°
 DIML4P, DML2A50mi161°
 CBL2A50mi175°
 EMDE4P58mi192°
 ALD2A, ALDI4P82mi210°
 TAG2A49mi267°
 KON2A, KANO4P50mi296°
 PARA4P, PRO2A50mi317°
 MLC2A, MOLO4P50mi326°
 BTY2A51mi351°
RW22
 PON2B, PONS4R51mi49°
 CARE4R50mi114°
 BMP2B50mi131°
 BOL2B50mi151°
 DIML4R, DML2B50mi161°
 CBL2B50mi175°
 EMDE4R58mi192°
 ALD2B, ALDI4R82mi210°
 TAG2B49mi267°
 KANO4R, KON2B50mi296°
 PRO2B, PARA4R50mi317°
 MOLO4R, MLC2B50mi326°
 BTY2B51mi351°

STAR starting pointsdistanceinbound heading
ALL
 ALD182.030°
 TAG1A49.487°
 KON1A49.7116°
 PRO150.0137°
 MLC150.1146°
 BTY150.5171°
 PON150.7229°
 BMP150.2311°
 BOL150.1331°
 DML150.0341°
 CBL149.9355°
RW04
 ALDI3P82.030°
 TADA3P49.487°
 DELO3P49.7121°
 BATA3P50.5171°
 LARY3P50.7205°
 BAMP3P50.2311°
 BOHO3P50.1331°
 COBO3P49.9355°
RW22
 ALDI3R82.030°
 TADA3R49.487°
 DELO3R49.7121°
 BATA3R50.5171°
 LARY3R50.7205°
 BAMP3R50.2311°
 BOHO3R50.1331°
 COBO3R49.9355°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04DRIGO (19°)DRIGO 4000ft
VM04A (7mi, 315°) 2400ft
RW04KULAS (45°)KULAS 4000ft
VM04A (6mi, 45°) 2400ft
RW04TONYO (96°)TONYO 4000ft
BOYER (10mi, 135°) 3000ft
VM04A (7mi, 135°) 2400ft
 RNAVVM04A 2400ft
VM04B (5mi, 45°) 2400ft
RPVM (8mi, 45°) 72ft
(7409mi, 265°) 2000ft
JODEM (7412mi, 85°)
DRIGO (10mi, 229°) 4000ft
DRIGO (turn) 4000ft
RW22ALMAR (251°)ALMAR 4000ft
VM22A (7mi, 315°) 2400ft
RW22GOLDA (199°)GOLDA 4000ft
VM22A (7mi, 135°) 2400ft
RW22JIMSY (225°)JIMSY 4000ft
VM22A (6mi, 225°) 2400ft
 RNAVVM22A 2400ft
VM22B (5mi, 225°) 2400ft
RPVM (8mi, 225°) 81ft
(7409mi, 265°) 2000ft
DAROD (7416mi, 85°)
ALMAR (10mi, 42°) 4000ft
ALMAR (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALDI3PKULASVHFleft226 (46)°4000ft - 13000ft1.0min timed230
ALDI3RALMARVHFright136 (316)°4000ft - 13000ft1.0min timed230
BAMP3PDRIGOVHFleft136 (316)°4000ft - 13000ft1.0min timed230
BAMP3RALMARVHFright136 (316)°4000ft - 13000ft1.0min timed230
BATA3PTONYOVHFright316 (136)°4000ft - 13000ft1.0min timed230
BATA3RGOLDAVHFleft316 (136)°4000ft - 13000ft1.0min timed230
BOHO3PDRIGOVHFleft136 (316)°4000ft - 13000ft1.0min timed230
BOHO3RALMARVHFright136 (316)°4000ft - 13000ft1.0min timed230
COBO3PDRIGOVHFleft136 (316)°4000ft - 13000ft1.0min timed230
COBO3RALMARVHFright136 (316)°4000ft - 13000ft1.0min timed230
DELO3PTONYOVHFright316 (136)°4000ft - 13000ft1.0min timed230
DELO3RGOLDAVHFleft316 (136)°4000ft - 13000ft1.0min timed230
LARY3PTONYOVHFright316 (136)°4000ft - 13000ft1.0min timed230
LARY3RJIMSYVHFleft46 (226)°4000ft - 13000ft1.0min timed230
TADA3PKULASVHFleft226 (46)°4000ft - 13000ft1.0min timed230
TADA3RGOLDAVHFleft316 (136)°4000ft - 13000ft1.0min timed230
*) magnetic outbound (inbound) holding course
