Airports for X-Plane

San Rafael

Airport details

CountryArgentina
StateMendoza
RegionSA
AirspaceMendoza Ctr
MunicipalityDistrito Las Paredes
Elevation2470ft (753m)
TimezoneGMT -3
Coordinates-34.58861, -68.40278
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSAMR
IATA codeAFA
FAA coden/a

Communication

San Rafael Tower118.100

Runway info

Runway 11 / 29
 length2611m (8566ft)
 bearing106° / 286°
 width30m (98ft)
 surfaceasphalt
 displ threshold96m (315ft) / 157m (515ft)

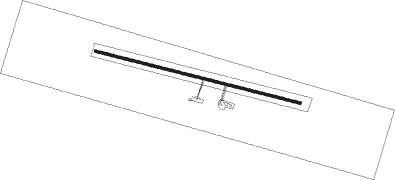

Airport layout


Nearby beacons

codeidentifierdistbearingfrequency
SRASAN RAFAEL VOR/DME0.496°116.90

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW11
 OPRI1C, OPRI1A30mi58°
 BOBA1A, BOBA1C31mi77°
 SATR1C, SATR1A30mi104°
 ISEG1A, ISEG1C30mi176°
 DIGE1C, DIGE1A30mi232°
 OPTU1C, OPTU1A30mi326°
RW29
 OPRI1G, OPRI1E30mi58°
 BOBA1E, BOBA1G31mi77°
 SATR1E, SATR1G30mi104°
 ISEG1G, ISEG1E30mi176°
 DIGE1G, DIGE1E30mi232°
 OPTU1E, OPTU1G30mi326°
