Country | Argentina |
State | La Pampa |
Region | SA |
Airspace | Ezeiza Ctr |
Municipality | Santa Rosa |
Elevation | 628ft (191m) |
Timezone | GMT -3 |
Coordinates | -36.58833, -64.27583 |
Magnetic var | |
Type | land |
Available since | X-Plane v10.40 |
ICAO code | SAZR |
IATA code | RSA |
FAA code | n/a |
Santa Rosa RDO | 296.500 |
Santa Rosa Tower | 118.300 |
ILS-cat-I | RW19 | 110.3 | 18.00mi |
3° GS | RW19 | 110.3 | 18.00mi |

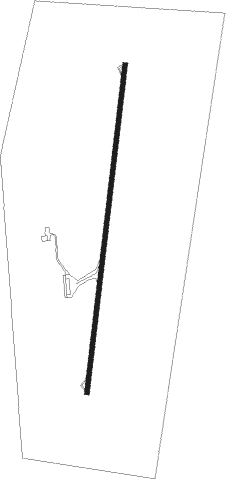

Runway 01 / 19 | ||
length | 2304m (7559ft) | |
bearing | 14° / 194° | |
width | 30m (98ft) | |
surface | asphalt | |
blast zone | 30m (98ft) / 30m (98ft) |
code | identifier | dist | bearing | frequency |
---|---|---|---|---|
OSA | SANTA ROSA VOR/DME | 0.3 | 33° | 112.50 |
O | SANTA ROSA NDB | 1.1 | 14° | 300 |
G | GENERAL PICO NDB | 58.3 | 31° | 307 |
GPI | GENERAL PICO VOR | 59.5 | 30° | 112.20 |
GPI | GENERAL PICO NDB | 59.6 | 30° | 285 |
Transition altitude | 3000ft |
SID end points | distance | outbound heading | |
---|---|---|---|
RW01 | |||
XIXO1C | 30mi | 31° | |
TIMK1C | 30mi | 65° | |
OGLE1C | 31mi | 136° | |
AKPU1C | 30mi | 187° | |
RW19 | |||
XIXO1G | 30mi | 31° | |
TIMK1G | 30mi | 65° | |
OGLE1G | 31mi | 136° | |
AKPU1G | 30mi | 187° |
runway | airway (heading) | route (dist, bearing) |
---|---|---|
RW01 | ESBER (43°) | ESBER 3000ft DAPSU (5mi, 99°) 2300ft |
RW01 | KIKAV (14°) | KIKAV 3000ft DAPSU (5mi, 14°) 2300ft |
RW01 | TORAP (343°) | TORAP 3000ft DAPSU (5mi, 279°) 2300ft |
RNAV | DAPSU 2300ft BUXOP (5mi, 14°) 2260ft ZR009 (3mi, 14°) 1310ft SAZR (3mi, 14°) 665ft ZARZA (6mi, 14°) ESBER (17mi, 214°) 3000ft ESBER (turn) 3000ft | |
RW19 | KUBSI (163°) | KUBSI 3000ft UMTAB (5mi, 99°) 2300ft |
RW19 | RAXIV (222°) | RAXIV 3000ft UMTAB (5mi, 279°) 2300ft |
RW19 | URISI (194°) | URISI 3000ft UMTAB (5mi, 194°) 2300ft |
RNAV | UMTAB 2300ft ZARZA (5mi, 194°) 2270ft SAZR (6mi, 194°) 673ft ZR009 (3mi, 194°) KUBSI (14mi, 348°) 3000ft KUBSI (turn) 3000ft |
