Airports for X-Plane

Bauru - Bauru - Arealva

Airport details

CountryBrazil
StateSão Paulo
RegionSB
AirspaceBrasilia Ctr
MunicipalityArealva
Elevation1949ft (594m)
TimezoneGMT -3
Coordinates-22.15778, -49.06833
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBAE
IATA coden/a
FAA coden/a

Communication

Bauru - Arealva RDO130.450

Runway info

Runway 17 / 35
 length2104m (6903ft)
 bearing152° / 332°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 87m (285ft)

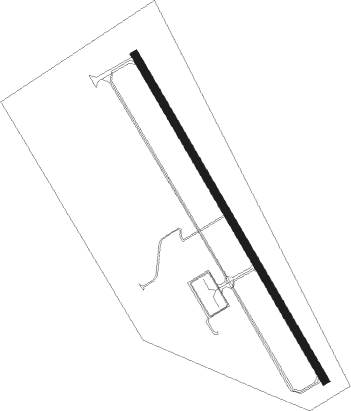

Airport layout


Taxiway locations

 A  B  C
Parking locations

 GA  Gate

Nearby beacons

codeidentifierdistbearingfrequency
AREAREALVA NDB0.6187°340
BRUBAURU NDB9.6194°380
MRAMARILIA NDB47.9268°415
AAQARARAQUARA NDB55.770°205

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW17
 PERA1B34mi37°
 PUMU1A38mi74°
 EDMO1A27mi102°
 OBLU1A43mi127°
 SOFI1A56mi273°
RW35
 ISIS1A31mi10°
 MECH1A34mi37°
 OPRA1A48mi187°
 LUTV1A62mi263°
 NEVK1A56mi273°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17AE001 (152°)AE001 5000ft
AE004 (6mi, 152°) 4000ft
RW17AE003 (127°)AE003 5000ft
AE004 (6mi, 84°) 4000ft
RW17AE014 (177°)AE014 5000ft
AE004 (6mi, 226°) 4000ft
 RNAVAE004 4000ft
AE006 (5mi, 152°) 3610ft
SBAE (5mi, 150°) 1977ft
(3162mi, 66°) 3000ft
AE024 (3154mi, 245°) 5000ft
AE024 (turn) 5000ft
RW35AE018 (313°)AE018 5000ft
AE019 (6mi, 302°) 4000ft
RW35AE021 (290°)AE021 5000ft
AE019 (6mi, 236°) 4000ft
 RNAVAE019 4000ft
AE012 (5mi, 302°) 3610ft
SBAE (6mi, 334°) 2011ft
(3162mi, 66°) 5000ft
AE003 (3169mi, 246°) 5000ft
AE003 (turn) 5000ft
