Airports for X-Plane

Alta Floresta

Airport details

CountryBrazil
StateMato Grosso
RegionSB
AirspaceAmazonica Ctr
MunicipalityAlta Floresta
Elevation944ft (288m)
TimezoneGMT -4
Coordinates-9.86639, -56.10500
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeSBAT
IATA codeAFL
FAA coden/a

Communication

Alta Floresta RDO126.600

Runway info

Runway 04 / 22
 length2524m (8281ft)
 bearing18° / 198°
 width30m (100ft)
 surfaceasphalt
 blast zone53m (174ft) / 55m (180ft)

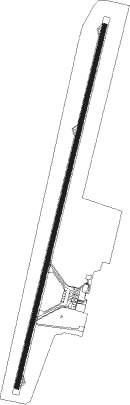

Airport layout


Taxiway locations

 A  B
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
ATFALTA FLORESTA VOR/DME0.1179°113.40

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04AT004 (19°)AT004 4000ft
AT003 (5mi, 18°) 2600ft
RW04AT006 (40°)AT006 4000ft
AT003 (5mi, 88°) 2600ft
RW04AT007 (358°)AT007 4000ft
AT003 (5mi, 308°) 2600ft
 RNAVAT003 2600ft
AT002 (5mi, 18°) 2590ft
SBAT (6mi, 19°) 994ft
(3404mi, 80°) 3000ft
AT007 (3405mi, 260°) 4000ft
AT007 (turn) 4000ft
RW22AT012 (219°)AT012 4000ft
AT011 (5mi, 268°) 2600ft
RW22AT013 (198°)AT013 4000ft
AT011 (5mi, 198°) 2600ft
RW22AT014 (177°)AT014 4000ft
AT011 (5mi, 128°) 2600ft
 RNAVAT011 2600ft
AT008 (5mi, 198°) 2530ft
SBAT (6mi, 198°) 933ft
(3404mi, 80°) 3000ft
AT012 (3394mi, 260°) 4000ft
AT012 (turn) 4000ft
