Airports for X-Plane

Araxá - Araxa

Airport details

CountryBrazil
StateMinas Gerais
RegionSB
AirspaceBrasilia Ctr
MunicipalityAraxá
Elevation3273ft (998m)
TimezoneGMT -3
Coordinates-19.56056, -46.96556
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBAX
IATA codeAAX
FAA coden/a

Communication

Araxa RDO130.350

Runway info

Runway 16 / 34
 length1904m (6247ft)
 bearing133° / 313°
 width31m (102ft)
 surfaceasphalt

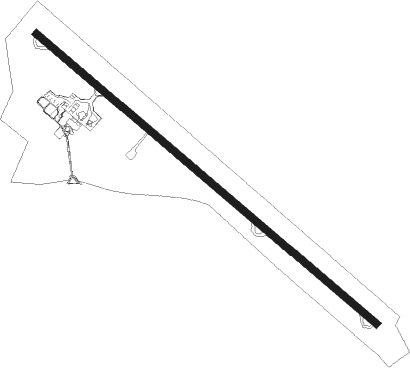

Airport layout


Taxiway locations

 A
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
ARXARAXA (UBERABA TMA) NDB0117°210
ARXARAXA (UBERABA) VOR/DME9.4216°117
URBUBERABA NDB57.5258°235

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16AX367 (134°)AX367 7000ft
AX371 (5mi, 133°) 5600ft
RW16AX368 (156°)AX368 7000ft
AX371 (5mi, 206°) 5600ft
RW16AX369 (113°)AX369 7000ft
AX371 (5mi, 66°) 5600ft
 RNAVAX371 5600ft
AX372 (5mi, 133°) 4900ft
SBAX (5mi, 135°) 3305ft
AX363 (16mi, 133°) 7000ft
AX363 (turn) 7000ft
RW34AX363 (313°)AX363 7000ft
AX362 (5mi, 313°) 5600ft
RW34AX364 (334°)AX364 7000ft
AX362 (5mi, 26°) 5600ft
RW34AX366 (293°)AX366 7000ft
AX362 (5mi, 246°) 5600ft
 RNAVAX362 5600ft
AX358 (3mi, 313°) 5100ft
AX361 (3mi, 313°) 4920ft
SBAX (6mi, 312°) 3326ft
AX367 (15mi, 314°) 7000ft
AX367 (turn) 7000ft
