Airports for X-Plane

Brasília - Brasilia Presidente Juscelino Kubitsch

Airport details

CountryBrazil
StateFederal District
RegionSB
AirspaceBrasilia Ctr
MunicipalityLago Sul
Elevation3479ft (1060m)
TimezoneGMT -3
Coordinates-15.86467, -47.90517
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeSBBR
IATA codeBSB
FAA coden/a

Communication

Brasilia Presidente Juscelino Kubitsch BRASILIA ATIS127.800
Brasilia Presidente Juscelino Kubitsch BRASILIA CLRD121.000
Brasilia Presidente Juscelino Kubitsch Ground Control121.800
Brasilia Presidente Juscelino Kubitsch BRASILIA Tower118.450
Brasilia Presidente Juscelino Kubitsch BRASILIA Tower121.500
Brasilia Presidente Juscelino Kubitsch BRASILIA Tower118.100
Brasilia Presidente Juscelino Kubitsch BRASILIA Approach119.700
Brasilia Presidente Juscelino Kubitsch BRASILIA Approach120.000
Brasilia Presidente Juscelino Kubitsch BRASILIA Approach119.200
Brasilia Presidente Juscelino Kubitsch BRASILIA Approach129.600
Brasilia Presidente Juscelino Kubitsch BRASILIA Approach119.500

Approach frequencies

ILS-cat-IRW11L110.318.00mi
ILS-cat-IRW11R109.918.00mi
ILS-cat-IRW29L110.918.00mi
ILS-cat-IRW29R109.318.00mi
3° GSRW11L110.318.00mi
3° GSRW11R109.918.00mi
3° GSRW29L110.918.00mi
3° GSRW29R109.318.00mi
Nearby Points of Interest:
Itamaraty Palace
-
Pilot Plan of Brasília
-
Museu da Cidade
-
Palácio do Planalto
-
Palácio do Jaburu

Runway info

Runway 11R / 29L
 length3298m (10820ft)
 bearing86° / 266°
 width45m (148ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)
Runway 11L / 29R
 length3207m (10522ft)
 bearing86° / 266°
 width45m (148ft)
 surfaceasphalt
 blast zone55m (180ft) / 50m (164ft)

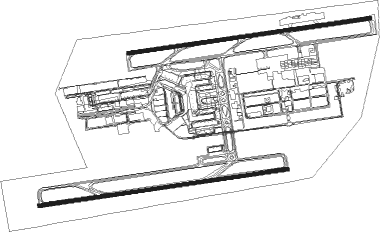

Airport layout


Taxiway locations

 A  B  BB  C  EE  F  G  H
 K  L1  L2  L3  L4  L5  L6  Q
 R  T  U  W  Y  Z
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
VJKKUBITSCHEK (BRASILIA) VOR/DME0.294°117.50
BSIBRASILIA VOR/DME6.7266°116.30
LUZLUZIANIA VOR/DME24189°113.10
FSAFORMOSA VOR/DME37.261°112.70

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW11L
 NIRD1A50mi33°
 PANO3C89mi48°
 ARPO1A, ARPO1B86mi59°
 FSA3A51mi61°
 SELD1A90mi80°
 OTAF1A31mi86°
 KOMG1A98mi115°
 SEMD1A103mi152°
 IRIT1A57mi204°
 PAPI1A46mi251°
 ESBU4A144mi304°
RW11R
 MIBI1A50mi33°
 KOTV3C89mi48°
 KOTV2D86mi59°
 KOTV2E37mi61°
 FSA3B51mi61°
 SIGE1A90mi80°
 OTAF1B31mi86°
 LIVE1B103mi152°
 LUZ2D57mi204°
 MOXO3B46mi251°
 KOTV3B144mi304°
RW29L
 ANPA2A50mi33°
 UBRU2A89mi48°
 NEDE1A59mi110°
 LUZ1A57mi204°
 GAXO1A59mi227°
 TINS3A144mi304°
 KOGL2A55mi349°
RW29R
 UKEN2A50mi33°
 PANO2B89mi48°
 KIAC1A59mi110°
 UTGE1A57mi204°
 BOBE1A59mi227°
 UTPA3B144mi304°
 KOGL1B55mi349°

STAR starting pointsdistanceinbound heading
RW11 (ALL)
 WELI2A70.326°
 PAJE2A45.961°
 USES1A88.7228°
 OCEL4A110.4250°
 KOGN1A, LUVL1A18.1287°
RW29 (ALL)
 EDVI1B, MOPD1B70.326°
 PAJE1B45.961°
 MOLM2B71.5202°
 USES2B49.6225°
 OCEL2B110.4250°
 PROV1B96.3306°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11LYKOGNO (103°)KOGNO 7000ft
BR003 (9mi, 126°) 5500ft
RW11LYLUVLA (66°)LUVLA 7000ft
BR003 (8mi, 33°) 5500ft
 RNAVBR003 5500ft
BR009 (5mi, 86°) 5090ft
IBR01 (2mi, 87°) 4453ft
SBBR (4mi, 88°) 3498ft
(2994mi, 72°) 5000ft
BR042 (2990mi, 252°) 6000ft
BR042 (turn) 6000ft
RW11LZBR001 (62°)BR001 7000ft
BR003 (7mi, 17°) 5300ft
RW11LZBR004 (109°)BR004 7000ft
BR003 (6mi, 159°) 5300ft
 RNAVBR003 5300ft
BR009 (5mi, 86°) 5090ft
IBR01 (2mi, 87°) 4453ft
SBBR (4mi, 88°) 3498ft
(2994mi, 72°) 5000ft
BR042 (2990mi, 252°) 6000ft
BR042 (turn) 6000ft
RW11RZKOGNO (103°)KOGNO 7000ft
NIMTO (9mi, 132°) 5500ft
RW11RZLUVLA (66°)LUVLA 7000ft
NIMTO (7mi, 35°) 5500ft
 RNAVNIMTO 5500ft
TOSEG (5mi, 86°) 5140ft
IDF01 (2mi, 86°) 4408ft
SBBR (5mi, 77°) 3548ft
BR047 (7mi, 153°) 6000ft
BR047 (turn) 6000ft
RW29LXEDVIV (247°)EDVIV 7000ft
TOGIG (7mi, 197°) 6000ft
RW29LXMOPDA (287°)MOPDA 7000ft
BR026 (4mi, 356°) 6500ft
TOGIG (4mi, 295°) 6000ft
 RNAVTOGIG 6000ft
BR002 (6mi, 266°) 6000ft
BR007 (6mi, 266°) 4237ft
SBBR (2mi, 288°) 3472ft
(2994mi, 72°) 5000ft
BR046 (2999mi, 252°) 6000ft
BR046 (turn) 6000ft
RW29RYEDVIV (247°)EDVIV 6000ft
BR076 (3mi, 191°) 5500ft
KOTVU (5mi, 237°) 5000ft
RW29RYMOPDA (287°)MOPDA 7000ft
KOTVU (9mi, 311°) 5000ft
 RNAVKOTVU 5000ft
BR079 (5mi, 266°) 5000ft
BR081 (2mi, 266°) 4486ft
SBBR (3mi, 264°) 3530ft
(2994mi, 72°) 5000ft
BR056 (2997mi, 252°) 6000ft
BR056 (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
EDVI1BWELINVHFleft216 (36)°1.0min timedICAO rules
KOGN1AMOLTIVHFright163 (343)°1.0min timedICAO rules
KOGN1APROVEVHFright146 (326)°1.0min timedICAO rules
LUVL1AMOLTIVHFright163 (343)°1.0min timedICAO rules
LUVL1APROVEVHFright146 (326)°1.0min timedICAO rules
MOLM2BBR032VHFright56 (236)°1.0min timedICAO rules
MOLM2BBR073VHFright56 (236)°1.0min timedICAO rules
MOLM4ABR032VHFright56 (236)°1.0min timedICAO rules
MOLM4ABR073VHFright56 (236)°1.0min timedICAO rules
MOPD1BWELINVHFleft216 (36)°1.0min timedICAO rules
OBDO1BMUDPAVHFleft55 (235)°1.0min timedICAO rules
OBDO1BOBDOGVHFright328 (148)°1.0min timedICAO rules
OBDO2AMUDPAVHFleft55 (235)°1.0min timedICAO rules
OBDO2AOBDOGVHFright328 (148)°1.0min timedICAO rules
OCEL2BBR073VHFright56 (236)°1.0min timedICAO rules
OCEL2BBR099VHFright56 (236)°1.0min timedICAO rules
OCEL4ABR032VHFright56 (236)°1.0min timedICAO rules
OCEL4ABR073VHFright56 (236)°1.0min timedICAO rules
PAJE1BPAJEMVHFright278 (98)°1.0min timedICAO rules
PAJE2APAJEMVHFright278 (98)°1.0min timedICAO rules
PROV1BMOLTIVHFright163 (343)°1.0min timedICAO rules
PROV1BPROVEVHFright146 (326)°1.0min timedICAO rules
USES1ABR032VHFright56 (236)°1.0min timedICAO rules
USES1ABR073VHFright56 (236)°1.0min timedICAO rules
USES2BBR073VHFright56 (236)°1.0min timedICAO rules
USES2BBR099VHFright56 (236)°1.0min timedICAO rules
WELI2AWELINVHFleft216 (36)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
