Barra Do Garças - Barra Do Garcas

Airport details

Country	Brazil
State	Mato Grosso
Region	SB
Airspace	Brasilia Ctr
Municipality	Barra do Garças
Elevation	1145ft (349m)
Timezone	GMT -4
Coordinates	-15.86083, -52.38945
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	SBBW
IATA code	BPG
FAA code	n/a

Communication

Barra do Garcas GARCAS RDO

125.900

Runway info

Runway 07 / 25
	length	1603m (5259ft)
	bearing	52° / 232°
	width	31m (102ft)
	surface	asphalt
	blast zone	58m (190ft) / 58m (190ft)

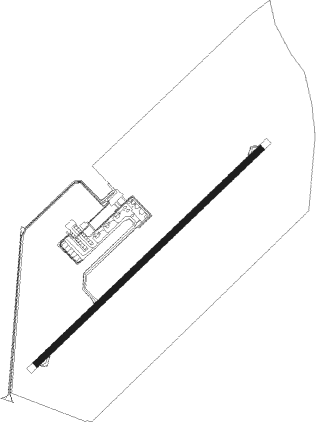

Airport layout

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
BAG	GARCAS VOR/DME	0.5	320°	113.30

Departure and arrival routes

Transition altitude

5000ft

Transition level

50ft

SID end points		distance	outbound heading
RW07
	OMNI	204mi	94°
RW25
	OMNI	204mi	94°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW07	BW001 (77°)	BW001 5000ft BW004 (5mi, 140°) 3500ft
RW07	BW002 (52°)	BW002 5000ft BW004 (5mi, 52°) 3500ft
RW07	BW003 (26°)	BW003 5000ft BW004 (5mi, 320°) 3500ft
	RNAV	BW004 3500ft BW006 (5mi, 52°) 2800ft BAG01 (3mi, 52°) 1996ft SBBW (3mi, 51°) 1200ft (3246mi, 73°) 2500ft BW001 (3258mi, 253°) 5000ft BW001 (turn) 5000ft
RW25	BW017 (257°)	BW017 5000ft BW011 (5mi, 320°) 3600ft
RW25	BW018 (232°)	BW018 5000ft BW011 (5mi, 232°) 3600ft
RW25	BW019 (206°)	BW019 5000ft BW011 (5mi, 140°) 3600ft
	RNAV	BW011 3600ft BW009 (5mi, 232°) 2800ft BW021 (3mi, 232°) 1998ft SBBW (3mi, 233°) 1202ft (3246mi, 73°) 2100ft BW019 (3239mi, 253°) 5000ft BW019 (turn) 5000ft
